  • FORTECO Sliding Gate Motor Automatic Electric Sliding Gate Kit Extra Heavy Duty FEATURE RICH Sliding Gate Opener Kit

    On Sale

Italian Made Forteco Sliding Gate Opener Keypad Access Control Kit with 2200KG Capacity AC Powered Strong Sliding Gate Motor, Remote Control Automatic Electric Sliding Gate Secure Access Control Management Kit

Product SKU: FORTECO-2200-AC-KP

  • In Stock

  • New
Get More Info.. Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,445.00 $2,563.00 APC Automotion Plus Sale

  • Italian Made Electric Sliding Gate Opener FORTECO , 2200 KG / 240V AC Powered

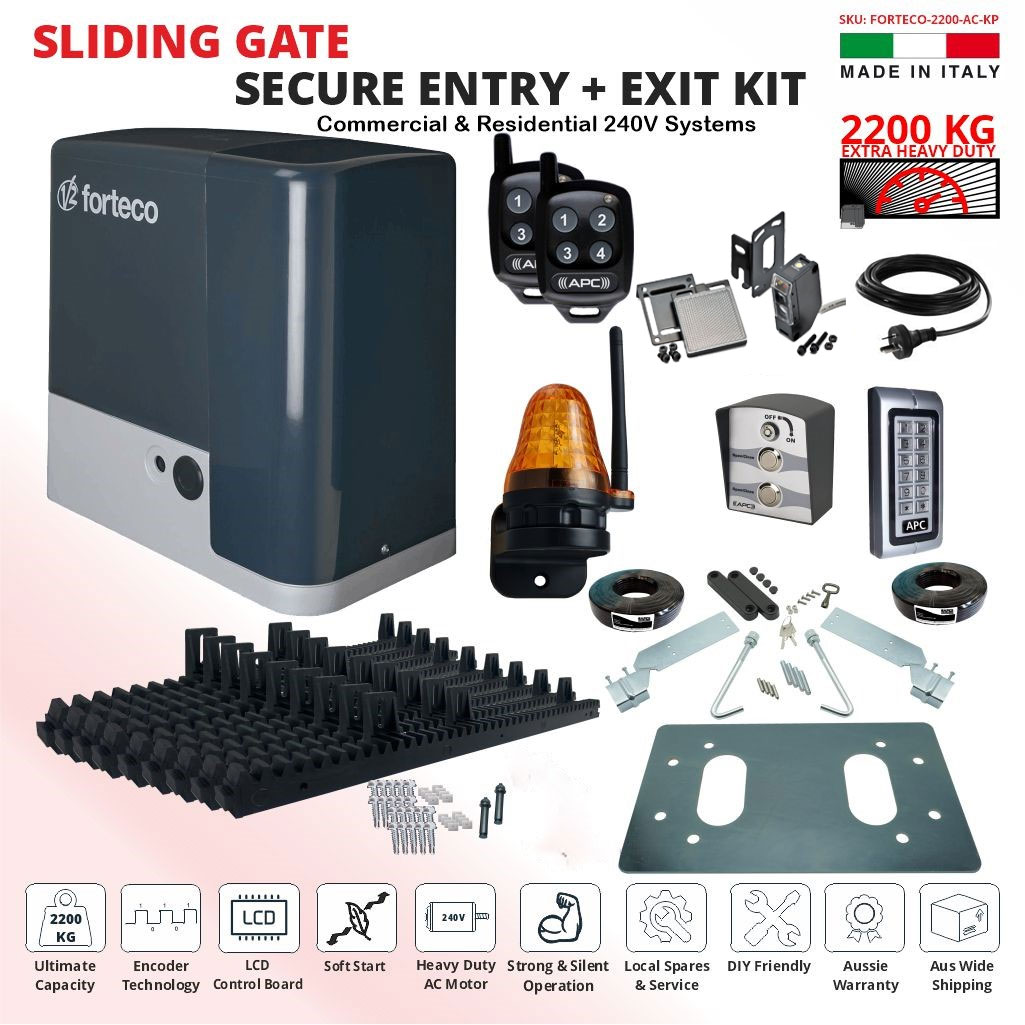

  • Kit Includes

    01 FORTECO 2200 AC, Italian Made Strong Sliding Gate Motor (2200KG Capacity AC Powered)(QTY: 1)
    02 APC Four Button Keyring Remote(QTY: 2)
    03 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector(QTY: 1)
    04 10m 4 Core Non Shielded Cable(QTY: 1)
    05 1020mm Nylon Rack(QTY: 5)
    06 APC Wired Double Push Button Switch with Key Issolation(QTY: 1)
    07 5m 4 Core Non Shielded Cable(QTY: 1)
    08 APC Slimline Vandal Resistant Keypad with EM card Reader(QTY: 1)
    09 APC-ULA Safety Light with Antenna **BYO Cabling**(QTY: 1)
    10 5m Coaxial Cable for Antenna(QTY: 1)
    11 5m 2 Core Non Shielded Cable(QTY: 1)
    12 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order.(QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

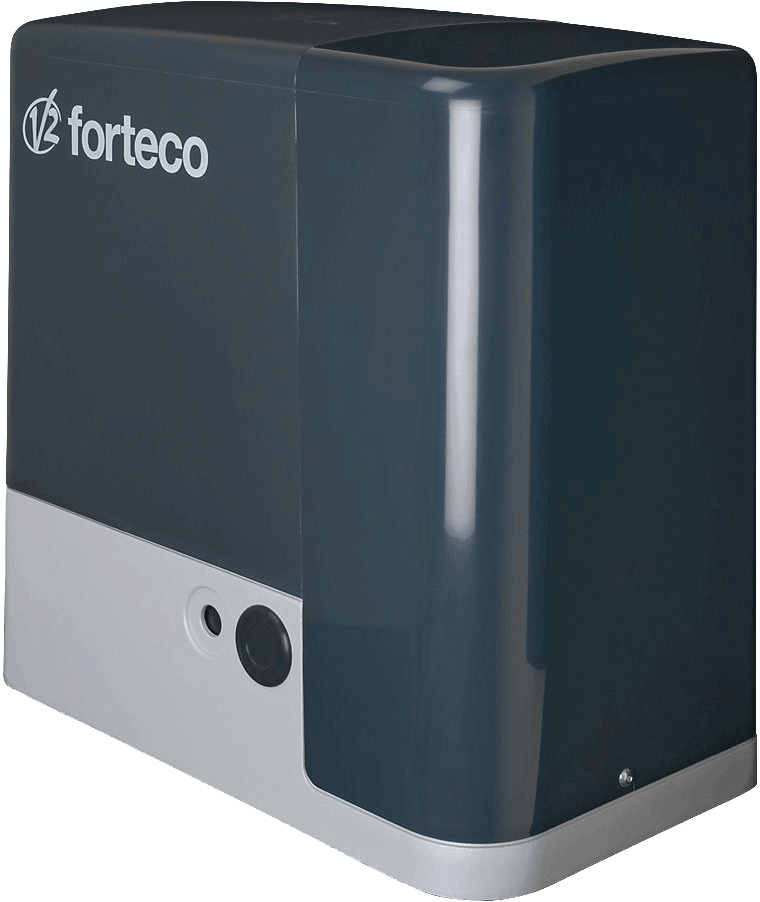

Extra Heavy Duty FORTECO Sliding Gate Motor

Extra Heavy Duty FORTECO Sliding Gate Motor

At a glance

The FORTECO 2200 EXTRA HEAVY DUTY system with a rich feature set of full programmability using the onboard intuitive LCD interface. Suitable for the novice user with simple setups all commercial sites with its advanced features system. There are many functions and features that this system can perform. See the full details below.

AC Sliding Gate Automation System. Easy Installation All in one Motor and Control Panel for Sliding Gate. Suitable for sliding gates up to 2200kg
Commercial 240V Systems Electric Gate Automation, Extra Heavy Duty Automatic Sliding Gate Openers.


TECHNICAL FEATURES

FEATURES UNIT FORTECO-2200-AC
Gate maximum weight kg 2200
Power supply vhz
V / Hz
240 / 50
Maximum power W 800
Full load current
 A 4
Gate maximum speed
m/s
0.16
Maximum thrust
 N
1550
Duty cycle
 % 35
Pinion -
M4-Z18
Working temperature
°C
-20 ÷ +55
Weight Kg 18
Protection degree IP 44
Maximum load on 24 Vac Accessories W 10




FORTECO STRENGTHS

  • Accurate and safe operation with encoder
  • Obstacle detection
  • Self-learning of opening and closing times
  • Synchronized operation of two motors using the SYNCRO module
  • Magnetic limit switches, all accurate and reliable over time
  • Programming achieved using 3 program buttons and display
  • Plug-in adaptor for modular radio receiver MR2
  • 2 inputs for photocells with self-test function
  • 2 inputs for mechanical or resistive safety edges
  • Courtesy light output
  • Soft start (programmable start-up rate)

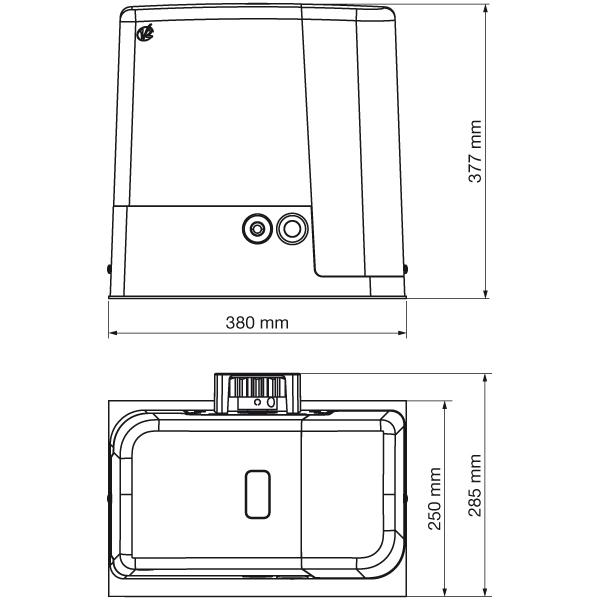

DIMENSIONS

Extra Heavy Duty FORTECO Sliding Gate Motor

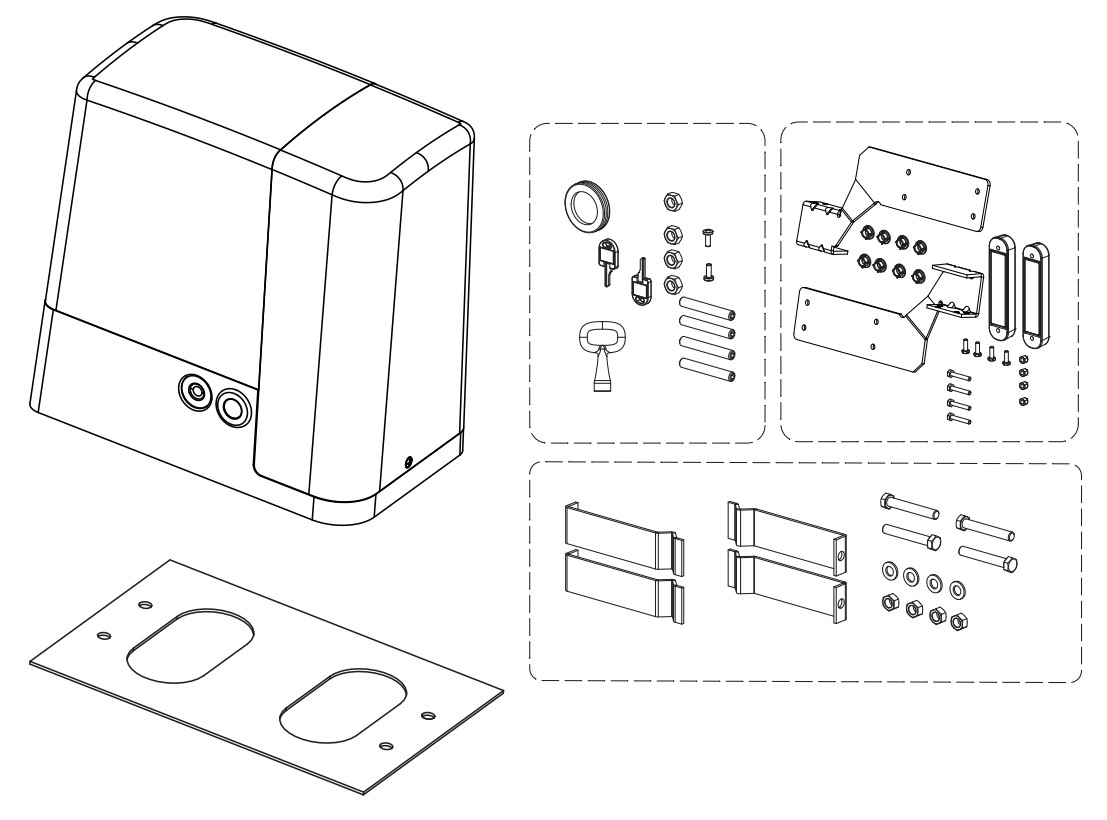

Gate Motor and Installation Kit

Extra Heavy Duty FORTECO Sliding Gate Motor



Extra Heavy Duty Feature Rich 240V Italian Sliding Gate Motor Overview



System Features

Capacity

 2200KG Capacity (2.2 Tonne)
 Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
 35% Duty Cycle

Everything and more as standard

 Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
 Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available), and induction loop
 Fast and Slow Speeds are adjustable
 Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
 Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
 Party Mode System to keep gates opened when configured for use with the automatic close feature
 Underside cable entry with grommets
 Simple to setup left and right side magnet system
 Strong STEEL Pinion Gear
 Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all directions)

Special Features

 Soft Start (Ramping feature) with adjustable cut-in points
 Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
 Induction Loop Compatible for auto opening or as a safety device
 Supports programmable timers

Safety Features

 Adjustable Over current adjustments
 Built-in Encoder with adjustable sensitivity
 Safety Sensor connection input configurable for open and/or closing
 Supports Safety Edges
 Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

 Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
 Remote controls
 Induction Loops
 Weekly Timers
 Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
 Keypads (Wired and Wireless Options Available)
 Exit/entry sensors
 Intercom system with dry contact output
 Automatic switching timer
 WiFi Control System (App-Based Control)
 GSM Control Systems (Mobile Call/SMS-based Control)



Remote Features

APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


    •



APC-KP1C Wired keypad with built in card reader



The APC-KP1C keypad is a waterproof low voltage keypad which is wired back to the control board using the supplied cable roll. It is of alloy construction and extremly robust. It can be seen day or night thanks to its backlit keys. Two EM swipe cards are also supplied suitable for any temporary or permanent user that need to gain access into the property without a pin code.

Key Features:

  • Built-in EM card reader.
  • Robust cast alloy construction
  • Resin filled for ultimate weatherproofing
  • Blue backlit keys
  • Anti-tamper feature
  • IP65 Waterproof rated and suited for outdoor and indoor environments.
  • Up to 2000 users for pin code and EM card.



Technical Specifications

Dimension

Features  Description
Appearance Metal case, anti-explosion and anti-tamper
Waterproof IP 65
Dimension 135×58×26mm
Input voltage DC: 12-24V AC: 12-18V
Capacity(max) 2000 Users
PIN 4-8 digits.
Not related to the card.
Master card Add/Delete User
As reader Support Wiegand 26bits, PIN Wiegand output, is a virtual number.
Connect external reader Can connect any EM/HID/IC readers with Wiegand 26 output
Connect high-power alarm. External current of the alarm ≥3A





Wired Double Push Button with Isolation Key





The wired double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.

It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number for either the full gate operation or pedestrian function.



Universal Flashing light with Built In Antenna


  • Multiple options for operating voltage from 12V - 265V in AC or DC
  • Ultra Low Consumption of less than 3W
  • Two operating modes available: Flashing illumination (1HZ) or Solid Illumination
  • Bright Orange Casing for Great Day and Night time visibility
  • Built in booster antenna connection
  • Simple wiring using two core for the light and RG58/59 for antenna
  • IP54 outdoor Rating
