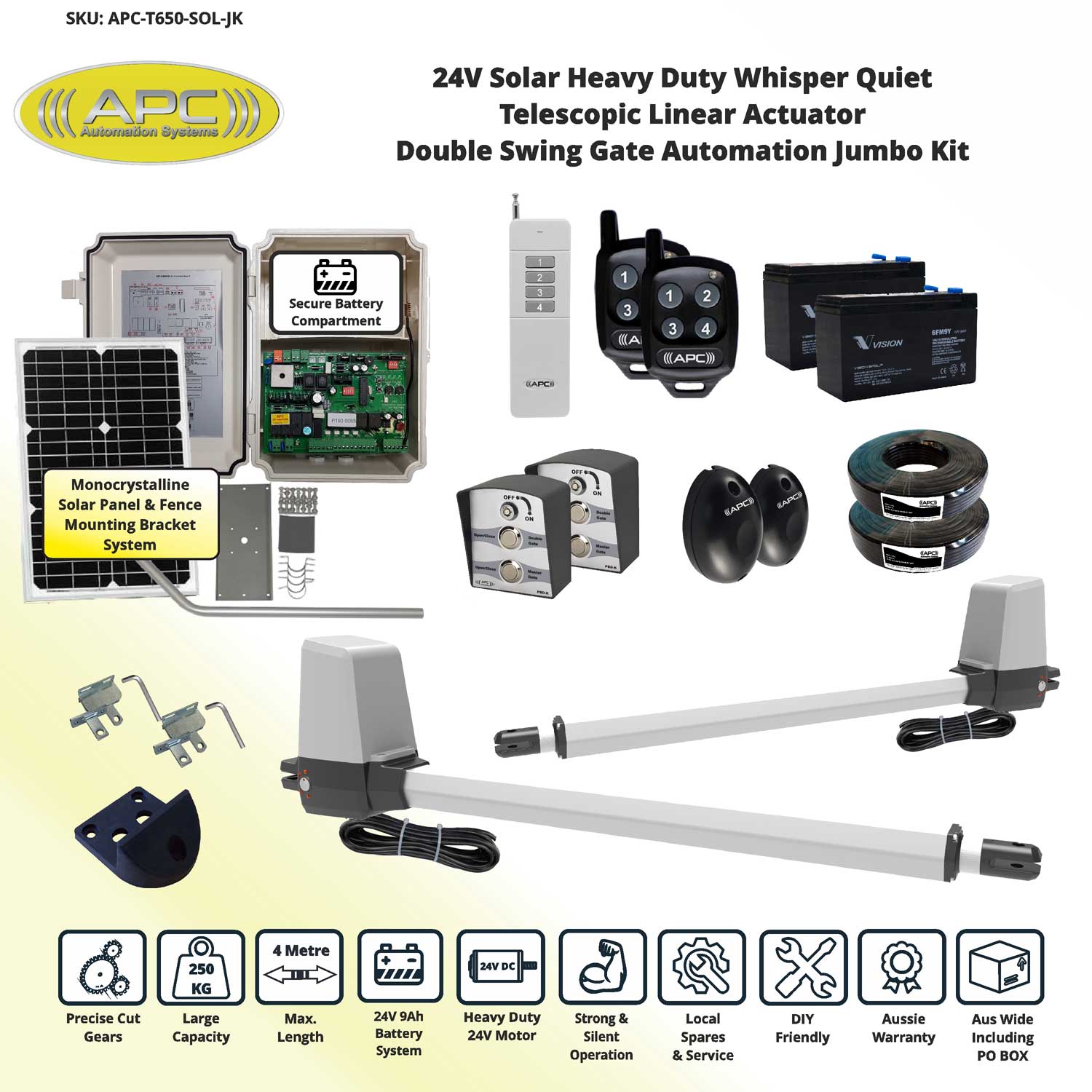

Heavy Duty Quick Operation Aluminum Telescopic Linear Actuator
Engineered to be Fast, Powerful, and Quiet. The Heavy Duty 24V actuator is comprised of an aluminum piston housing and a stainless steel piston with an elegant light grey powder coat for a neutral non-obtrusive feel.
Universal left and Right Side installation.
Simple 2 wire low voltage system making this motor a breeze to install for all skill levels.
The system can handle light and heavy gates up to 125kg maximum weight each gate or up to 2m maximum length for each gate.
Engineered to last
Perfect gear cuts allows for an almost silent operation with no movement in the gear system.
Sealed bearings at each end of the gear set for a 100% smoothness and consistency every single cycle.
Ribbed casing for extreme rigidity and the ultimate holding strength with no flex whatsoever.
Emergency Clutch Override
The simplest of override systems simply slot in the key and turn towards the unlock icon to operate the gates manually. Once finished just turn back to the locked icon.
|Metal Lead Screw, Mixed Composite
Using Allen Key
-10° - 50°
2m max each
125kg max each
Weatherproof Control Box
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output
Any or all of the following may be connected to operate the gate
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
|Optimum Operational Voltage
|Open Circuit Voltage
|20W Panel Dimensions
|640 x 300 x 25mm
|40W Upgrade Panel Dimensions
|535 x 515 x 30mm
|60W Upgrade Panel Dimensions
|805 x 535 x 30mm
24V 9aH Battery System
Supplied with the automation kit, the 24V Battery System* (2 x 12V 9Ah Batteries) will allow for continued use of the gate system, whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged, it will continue to float charge to keep the batteries topped up and ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.
*Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life
|20W 24V Solar Panel (Upgradable)
|Built In On Board Regulator
|Motor Output Voltage
|24V 9aH (Upgradable)
|-10° - 50°
|APC Rolling code 433.92mhz
|Lock Output (Primary)
|Lock Output (Secondary)
|0V Momentary Pulse
|1A to 5A
Long Distance Remote
The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
- Up to 15 Metres Infared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment led to assist in the installation process
- Weather sealed with the supplied cover seals
- Easy screw down wiring termination
Wired Double Push Button with Isolation Key
The wired double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.
It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The push button is wired to the control board using the supplied cable roll. If required the wired push button can be upgraded to a wireless version thus eliminating any need for wiring.
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
65mm Rubber Gate Stop Dimensions
