Product SKU: GFR25/18x2-T850TL

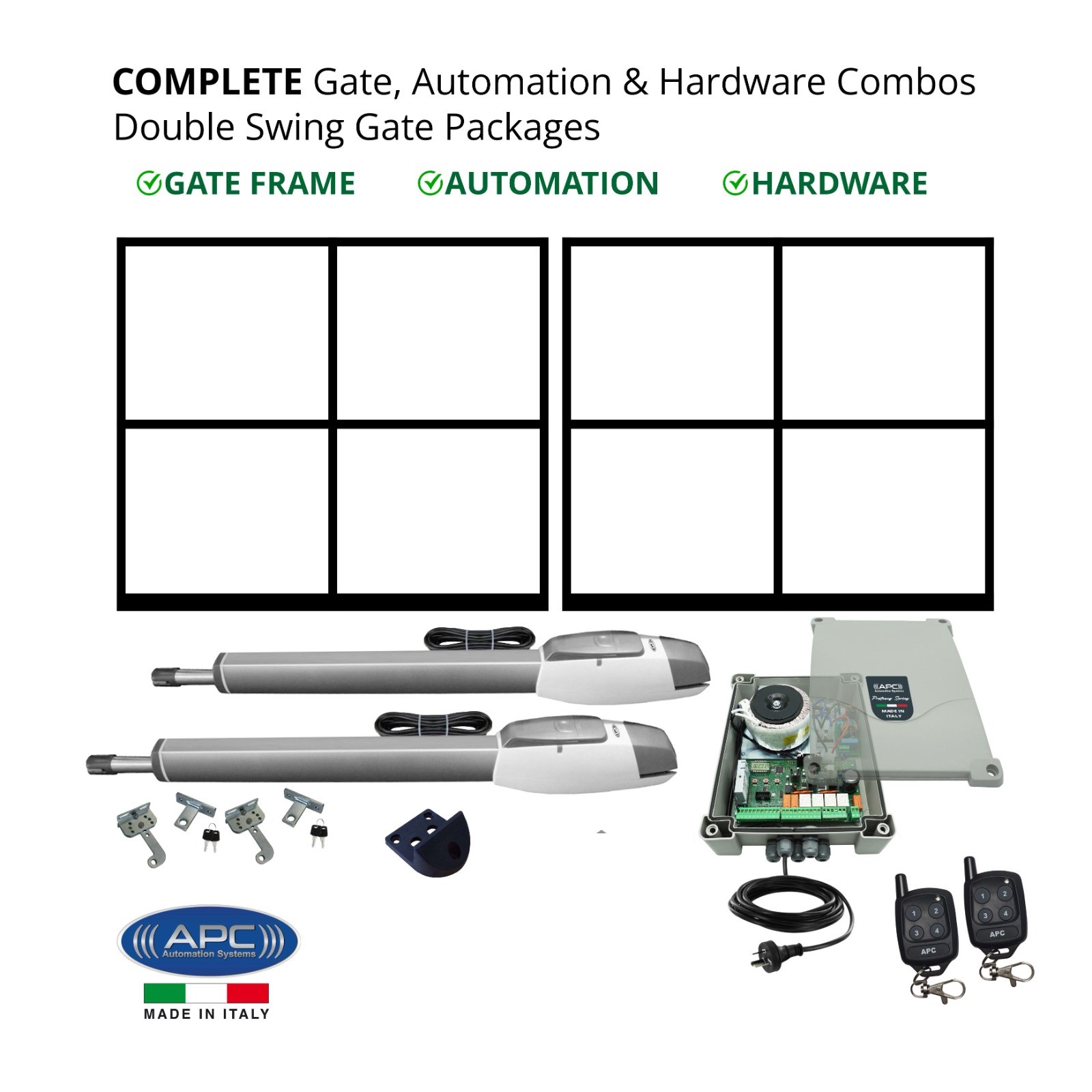

Driveway Gate Frames 5m Opening - Gate Frames 2 x (2.5m (L) x 1.8m (H)), Gate Automation & Hardware Combos with Italian Made Logico 24 Control Unit and APC Extra Heavy Duty Swing Gate Opener System. Complete Double Swing Electric Gate Packages.

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Driveway Gate Frames 5m Opening - Gate Frames 2 x (2.5m (L) x 1.8m (H)), Gate Automation & Hardware Combos with Italian Made Logico 24 Control Unit and APC Extra Heavy Duty Swing Gate Opener System. Complete Double Swing Electric Gate Packages.

Product SKU: GFR25/18x2-T850TL

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$3,199.00

  • Gate Frame with Easy to Install Automatic Gate Opener and Hardware

  • Kit Includes

    01 2.5m (1.8m Height) Ready-Made Driveway Gate Frame| In-Stock Steel Gate Frames Australia (QTY: 2)
    02 APC-T750TL Top Limit Actuator Kit, Extra Heavy Duty 24V DC Powered Gate Motor| Swing Gate Automation (QTY: 2)
    03 APC Logico 24V Feature Rich Control Box Kit with Internal Transformer and Power Lead (QTY: 1)
    04 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer) (QTY: 1)
    05 APC Four Button Keyring Remote (QTY: 2)
    06 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    07 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

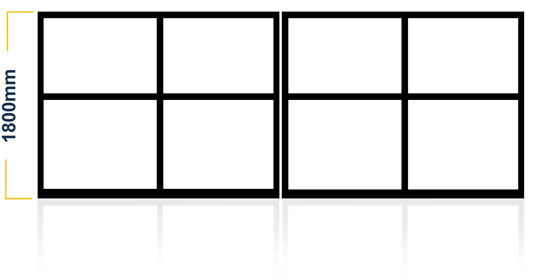

Gate Frame with Vertical and Horizontal Support Rails For Cladding

Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials




Key Features
  • 1800mm Height
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

Suitability
  • Double Swing Gate Applications
  • Residential Use
  • Commercial Use

All Metal Gears Extra Heavy Duty Telescopic Linear Actuator with Top Limit Switches

Extra Heavy Duty 24V Motor with powerful and quiet operation. Robust all-metal internal gears, sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in an emergency situation. The system can handle light and heavy gates up to 350kg maximum weight for each gate leaf or up to 5m maximum length of each gate leaf.

Top Limit Switches ensure the precise setting of the open and closed positions along with a less strenuous life for the actuator.



Emergency Override


Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.


Actuator Dimensions



Extra Heavy Duty Single Gate Opener



Installation Geometry



Specifications

Gear Type Metal Lead Screw, All metal gears
Motor Voltage
24v DC
Manual override
Via override keys supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
540mm (without limit switches)
Gates size
5m maximum gate size (Per Leaf)
Gate weight
350kg maximum gate weight (Per Leaf)



Feature Rich and Highly Versatile Control Box



The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Specifications

Transformer 24V AC
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accesories + Running Motors)
Max. Accesories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity

65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.



65mm Rubber Gate Stop Dimensions





Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $3,199.00
