Product SKU: EV-AHD4A-B1A-WH

Four Channel Surveillance Package

  • In Stock

Price :

$150.00 $199.00

Get More Info.. Get More Info..

Product Information

4 Channel Surveillance DVR System

With Weatherproof 1mp Camera's

Remotely View & Control your Camera's - Anytime, Anywhere


4 CH DVR
with
1 Megapixel Camera's

4 Channel Surveillance DVR System


This 4 Channel DVR Home Security System allows the connection of 4 CCTV Camera’s allowing the user to monitor the premises, anytime, anywhere.

Live viewing of the connected CCTV camera's can be viewed by the user on any of the following:
- A Television Screen: The user can view the real time video of the connected camera's on a TV.
- A Monitor: The user can view the real time video of the connected camera's on a monitor.
- The iPhone/Androip APP: The user can view the real time video of the connected camera's on a smart phone or tablet device by downloading the compatible application (XMEye) - please see more details down below.
- A Web Browser: The user can view the real time video of the connected camera's by logging into the DVR System on a Web Browser such as Google Chrome, Internet Explorer, Mozilla Firefox, Safari.

If a hard drive is connected to this DVR System it gives the user peace of mind as it is constantly recording and storing footage onto the hard drive. The maximum capacity for a connected hard drive is 6TB which will store approximately 30 days of 24-hour recording before overwriting the recorded footage.
Please note: This DVR System is not supplied with a hard drive.

Once a hard drive is connected to this DVR System the user will be able to playback the recorded footage aswell as download the stored recording and footage from the system onto a USB, portable HDD or through the network.
This system is supplied with a 4 Channel DVR System, 4 x 1mp CCTV Camera’s, Power Supply, 1 to 5 Cable Splitter, 4 x 18m CCTV Cables, 1 x USB Mouse & 1 x Software CD.


Compatible APP: XMEye

The compatible application for this DVR System (XMEye) can be download on any smart phone or tablet device to allow the user to view the camera's remotely. Simply download the application to your smart phone or tablet device, configure the DVR System to the APP and off you go! Please see screen shots of the APP below.

Device List
Once the DVR System Device has been added the user will be able to view the DVR in the Device List
Real Time Video
The user can select the DVR from the device list to view Real Time Video of the connected camera's. The camera's can be viewed one at a time or the screen can be split to see all the camera's at the same time
4 Channel Surveillance DVR System
4 Channel Surveillance DVR System

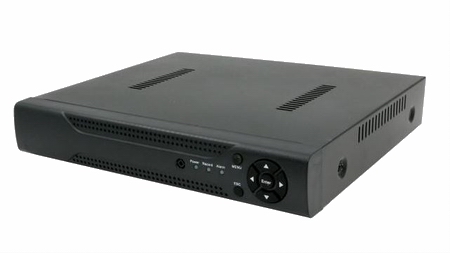

DVR System


- 1080N 4 Channel DVR
- 5-in1 DVR compatible with IP, AHD, TVI, CVI, CVBS
- Remote View & Control anytime, anywhere
- Compatible with Smart Phone & Tablet Devices via an APP
- Supports connection of SATA Hard Drive up to 6TB for recording (6TB hard drive will store approximately 30 days of 24 hour recorded footage)
- Supports Motion Detection
- Easy to use search modes when searching through recorded footage
- Easy to playback recorded footage
- Easy to download recorded footage onto a USB or Hard Drive

4 Channel Surveillance DVR System


DVR Specifications
Max Capacity of Connectable Hard Drive 6TB
Approximate Storage Days when 6TB Hard Drive Connected 30 days on 24-hour recording mode
Main Processor Vimicro 738
Operating System LINUX, Compression Mode: H.264
Video Input 4CH BNC
Video Output 1CH BNC / 1 x VGA / 1 x HDMI (1920*1080)
Video Distance 75-3 Cable up to 500 metres / Video No Decay & Distortion
Audio Input 4CH RCA
Audio Output 1CH RCA
Recording Channel 4CH x 1080N; 1080N: 1920 x 1080 at 25Fps
Resolution 1080N: 1920 x 1080
Frame Rate 25 Fps (PAL)
Recording Mode Non Realtime video recording
Playback Mode Normal Play, Fast Forward, Fast Rewind, Frame by Frame
Search Mode Time, Date, Motion Detection, Exact Search
HDD Interface 1 x SATA Fixed HDD
USB Disk 2 x USB 2.0 Port
Backup Format H.264 (only for Playback software - General H.264 Player V1.7.0)
Backup Mode Network Download / Flash USB / Movable HDD / SATA HDD / DVD-RW
Mobile Phone & Smart Device Compatibility iPhone, iPad, Android, BlackBerry, Symbian, Windows Mobile Pro
Computer System Support Windows 2000, XP, Vista, 7, 8 / Mac OS x 10.6/10.7
Compatible Browser Google Chrome, Internet Explorer, Mozilla Firefox, Safari
Simultaneous Remote Viewers 6 Users Online
Operating Temperature 0° ~ 55°C
Operating Humidity 10% ~ 90%
Power Supply DC12V/2A Power Adapter Shared with CCTV

1mp Weatherproof Camera

- 1 Megapixel Bullet Camera
- Weatherproof
- IR LED: 5 x 24PCS
- IR Range: 20 Metres
- Lens: 3.6mm Board Lens
- Colour: White
- Material: ABS
4 Channel Surveillance DVR System

Camera Specifications

Type Bullet
IR Led 5 x 24PCS
IR Range 20 Metres
TV System PAL
Video Output BNC (AHD)
Chipset Solution
1/4" Mega 720P (1mp) CMOS
Resolution
720P @ 25Fps
Effective Pixels 1920 (H) x 720 (V)
Minimum Illumination 0.001Lux
Lens 3.6mm Board Lens
Sync, System Internal Synchronization
Scanning System 2:1 Interface
Shutter Speed 1/60~1/100,000sec (N), 1/50~1/100,000sec (P)
S/N Ratio >58dB
DWDR YES
Power Source DC12V +/- 10%
Consumption <5W
Operating Environment -20°C ~ 60°C / 10% ~95%RH
Working Humidity <90%

DVR Connection Points

4 Channel Surveillance DVR System


Wiring Diagram

4 Channel Surveillance DVR System

Package Contents


- 1 x 1080N 4 Channel DVR system
- 1 x 2amp Power Supply
- 1 x 1 to 5 Cable Splitter
- 4 x 1mp CCTV Camera's
- 4 x 18 Metre CCTV Camera Cables
- 1 x USB Mouse
- 1 x Software CD

4 Channel Surveillance DVR System

Prices & GST:
All prices include GST.

Delivery:
The automatic gate operating system will be delivered via Australia post couriers, the products will be registered and insured.
The purchased product will be dispatched immediately on the day of purchase if the order and payment is completed before 12pm otherwise it will be dispatched the following day.

Pickup:
Customers can pickup the automatic gate opener from our factory/showroom.

Warranty:
All the gate openers supplied are pre tested and of good quality long lasting and have a 12 Months back to base warranty on the complete system.
