Eyevision Intelli Series Intercom Systems
The eyevision Intelli Series intercom is a feature rich state of the art intercom system boasting every feature requested from an intercom syste (and much more...).
Any visitor calls can be recieved by the APP on your smartphone or table along with the monitor at the same time with a large feature set from the APP and also the indoor monitor. No extra modules are required to connect to the internet as the WF 7 slimline indoor monitor has built in Wi-Fi and is able to connect directly to your homes 2.4GHZ Wi-Fi connection.
Two oudoor stations can be connected for front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home allowing for the visitors call to be answered from any station and transfered to a diffrent station if required. Within the home you can selectivly intercom between any of the installed indoor monitors. All monitors connected into the system can view any of the installed CCTV camers (up to TWO can be connected into the system). If the CCTV cameras are interconnected with a seperate alarm sensor the system can have alarm recording events occur which can be saved directly to a micro SD card.
The intelli series can have a common release connected directly to the monitor allowing for simultaneous front gate - front door release making it easier than ever to let a guest in without having to switch between menus or running to the door.
System Capacity & Capabilities
- Supports up to TWO Outdoor Stations each with its own electric striker/gate release feature
- Supports up to SIX indoor Monitors
- Common independent electric striker/automatic gate release feature
- Supports up to Two CCTV Cameras (CVI,TVI,AHD or CVBS up to 1.3MP)
- Supports Motion Detection for Outdoor Stations (uses its own built in sensor)
- Supports Motion Detection/Alarm Function for CCTV using external PIR or Reed Switches
- Supports live video stream to a DVR

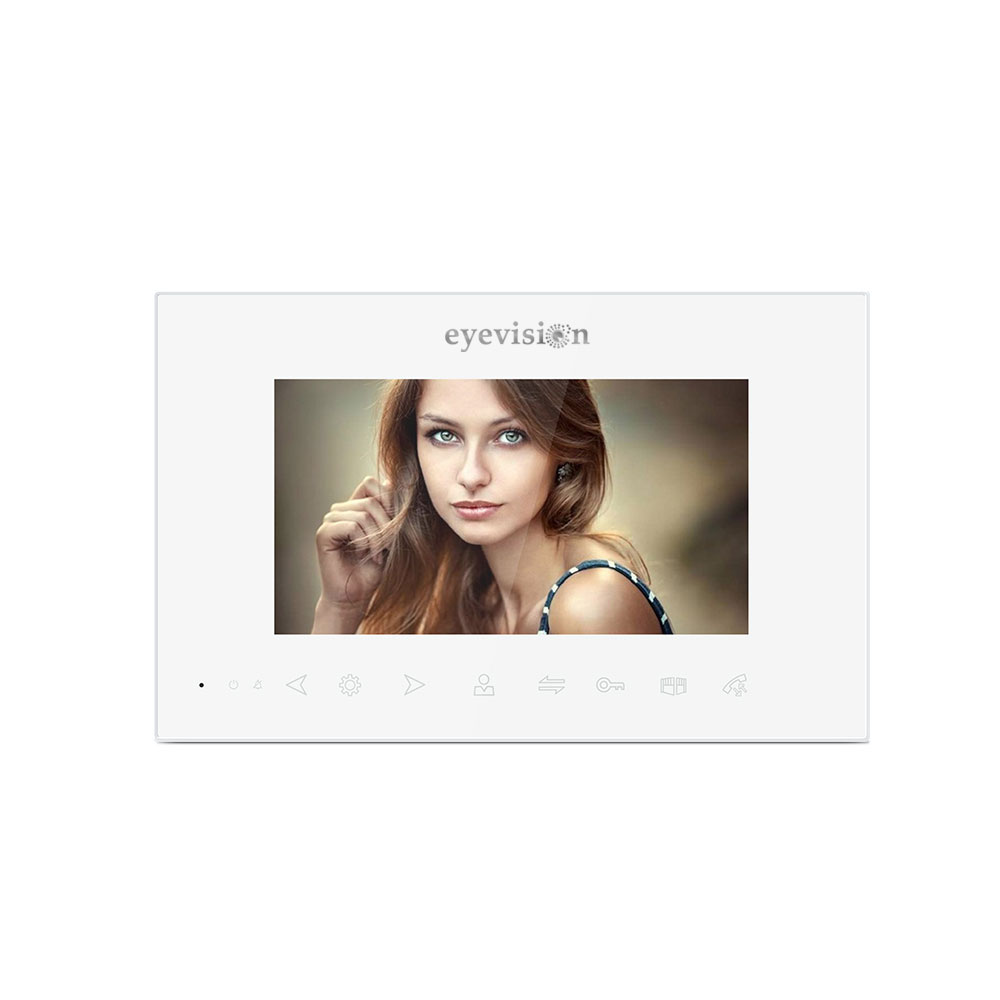

Indoor Monitor Base Features
- Built-in WiFi to connect to your home internet connection
- Tempered Glass with Touch Sensitive Buttons
- Simple easy to use user Interface
- Free to use Tuya Smart APP for all modern mobile phones and tablets
- 11 Languages to choose from
- Ultra Slim 18mm Depth
- 7" TFT LCD Monitor 1024x600 HD Resolution
- Built in mute switch
- Intercom calls direct to Smart phone and Monitor Simultaneously
- Intercom internal call and Call transfer
- Calender screen (time and date) option before entering the main menu
- Anytime REALTIME monitoring of any connected outdoor station/cctv camera
- Set scheduled ring volumes for Morning, Afternoon, Evening and Night
- Can Enable/Disable Rigtone at the outdoor station
Special Features (Micro SD Required)
- Automatic recording for Motion Detection and Alarm events
- Digital Photo Frame on Standby
- MP3 Player
- Away Voice Message (Voicemail System)
- Custom ringtones
Tuya App for Direct to Phone
Indoor Monitor Technical Specifications
||7" 1024x600 AHD LCD Display
||Micro SD (Not Supplied) Class 10 up to 32GB
|Alarm Sensor Input
|Outdoor Unit Input

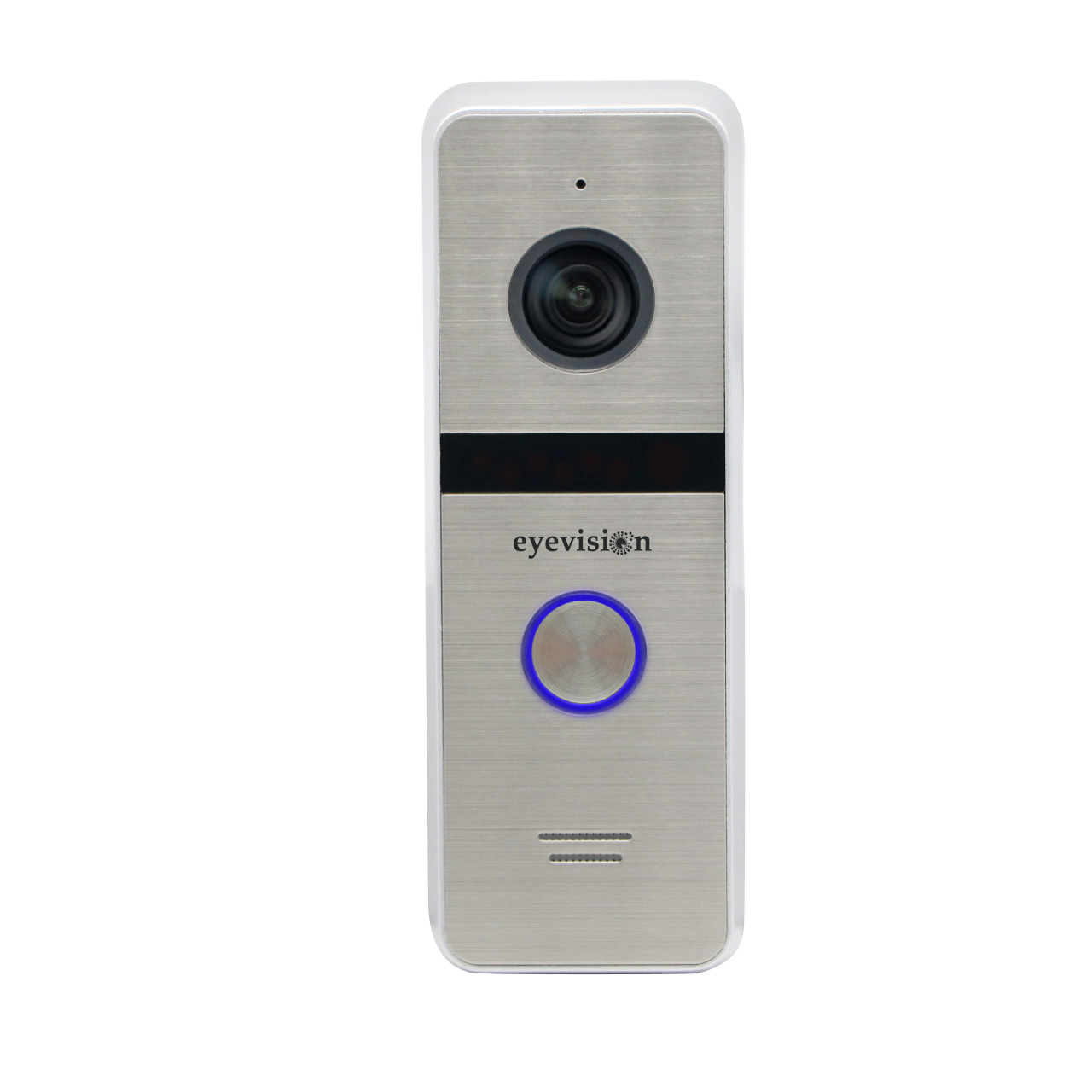

Outdoor Station Features

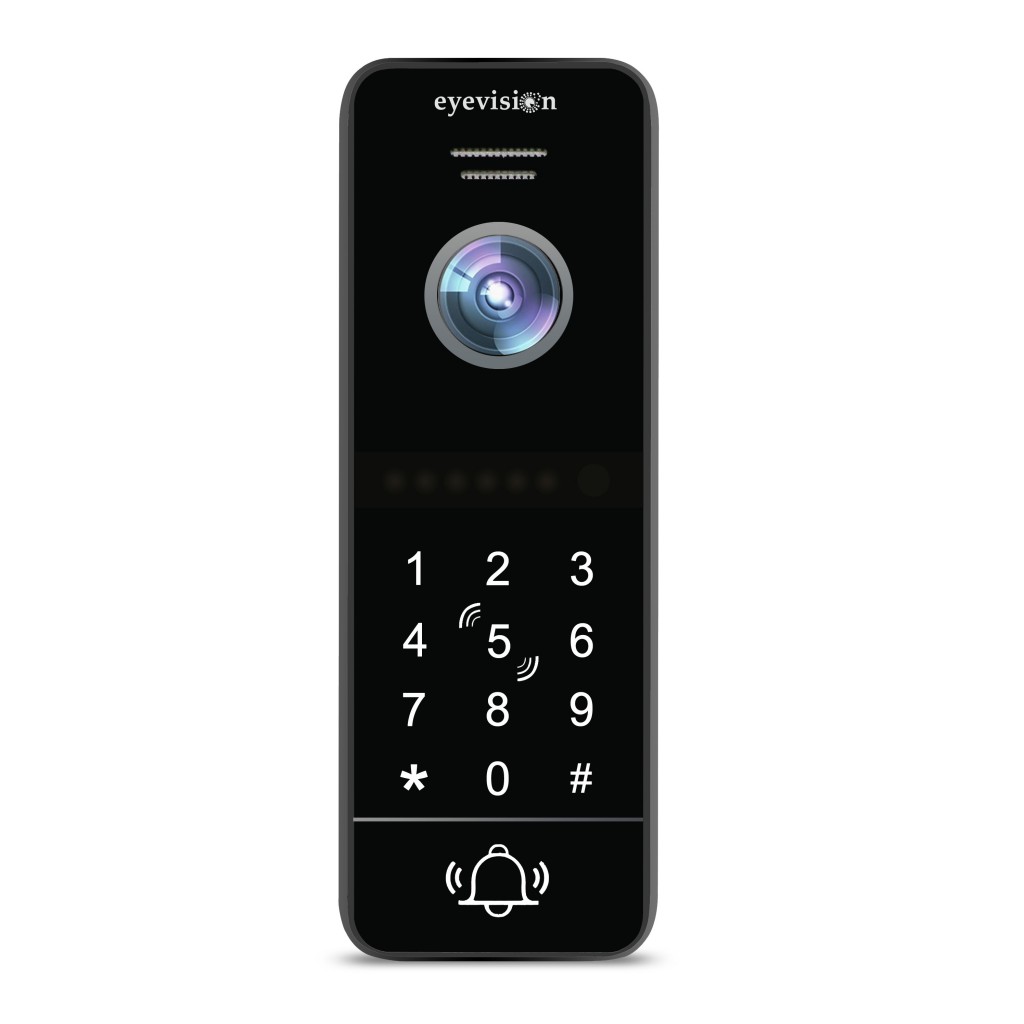

- Ultra narrow 45mm Width fits onto any post, pier or fence
- 1.3MP AHD Camers
- 120° Lense
- 45° Wedge Bracket for best mounting direction
- Built in Keypad with common PIN CODE system
- Built in IC Tag/Card Reader
- Up to 100 Users when using IC Tags (allows for individual User ID's and PIN Codes
- Lockout feature after too many incorrect PIN/IC tag uses
- Supports Exit Buttons
- Supports Fail Secure and Fail Safe Electric Strikers
- Supports Automatic Gate Release
45° Angle Wedge
The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing and the guest may be standing to its left or right side.
The wedge is a universal mount allowing for both left facing and right facing setups.
Outdoor Station Technical Specifications
|Exit Button Input
|Swipe Tag Type

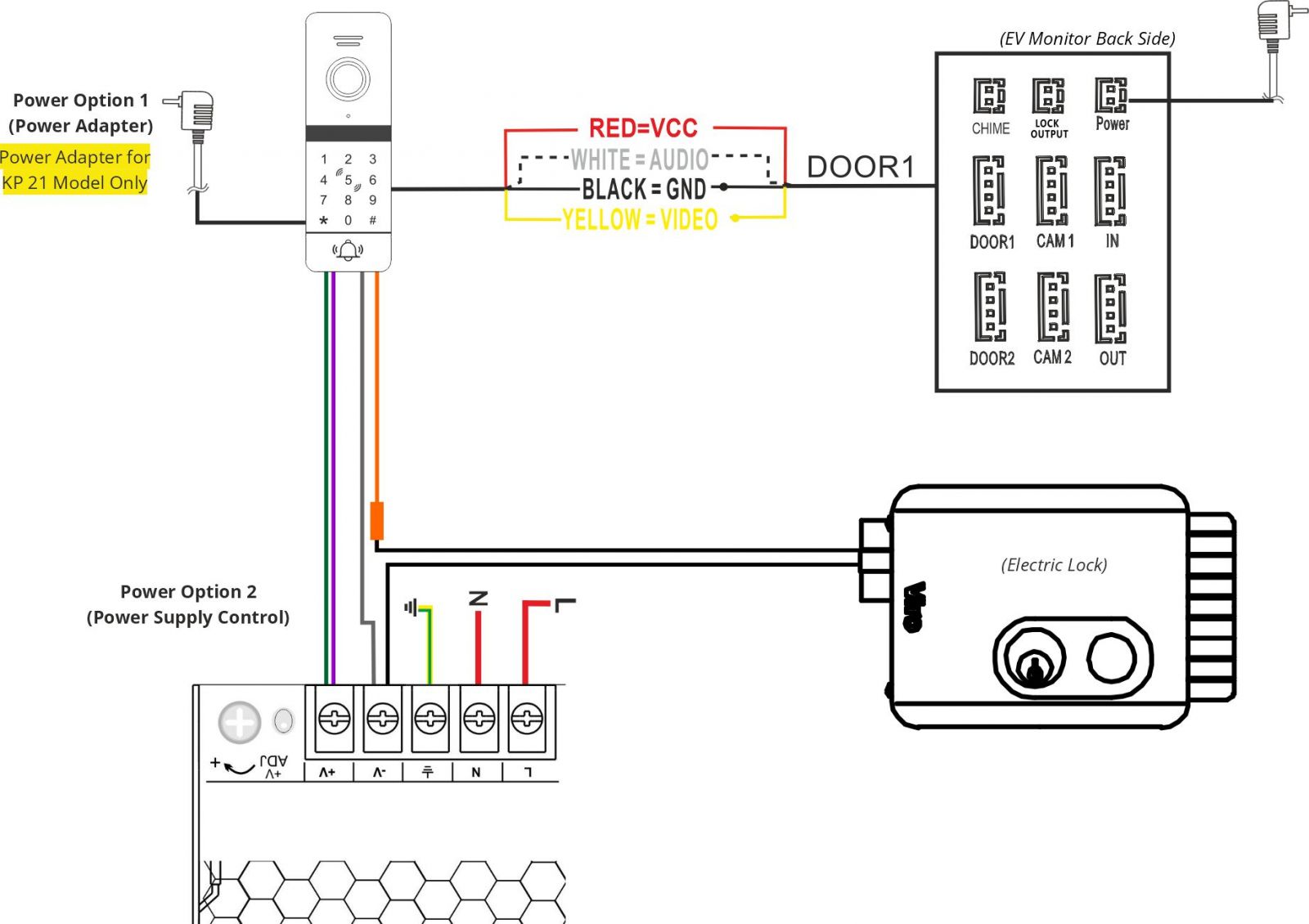

Wiring Diagram for a basic installation
Wiring Diagram for an expanded system
Cabling & Distances
12V Horizontal Automatic Electric Gate Lock (Viro V97), Right Hand Side for Inward Opening Swing Gates
Viro V97 automatic electric gate lock with push-button and adjustable backset from 50 to 80 mm. Suitable for the right hand and inward opening swing gates
The V97 electric lock with push-button is suitable for outside and inside doors and pedestrian gates and is interchangeable with the most common electric locks already installed, often maintaining the old striker. The characteristics and finish make them ideal for metal doors and gates, even in surroundings subject to considerable temperature ranges.
- Galvanized and Anthracite Metallic-Painted Steel Case and Cover
- Operating voltage: 12V DC, 2600mA
- Push Button
- The electric lock can be operated in conjunction with most gate openers and access control systems.
- Specially designed for installation on manual or automatic opening gates and drive-through gates.
- Viro V97 Electric Lock Dimensions: 127,5 x 103,5 mm
- oval brass escutcheon,
- allen key for backset adjustment,
- fixing screws.
Driveway Electric Gate Lock
Pedestrian Electric Gate Lock
Garage Swing Door Electric Lock
The V97 electric locks with push button are suitable for outside and inside doors and pedestrian gates and are interchangeable with the most common electric locks already installed.
12V DC Power Supply
Lock and Access Control Power Supply 12V 3A DC
LRS-35-12 Single Output Switching Power Supply 12V/3A Output
A 35W single-output enclosed type power supply with a 30mm low-profile design.
The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.
Brand: MEAN WELL
Weight: 350 Gr
||85 ~ 264VAC
||0.42A / 230VAC
|Rated Output Power
|Output Voltage Adjustment
||10.2 ~ 13.8V
|Prescribed Electrical Item
|Operating Temperature Range
||'-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
||CE, CB, RCM
|IP Rating / Environmental Protection
||Less than IP65
|Recommended for New Designs
