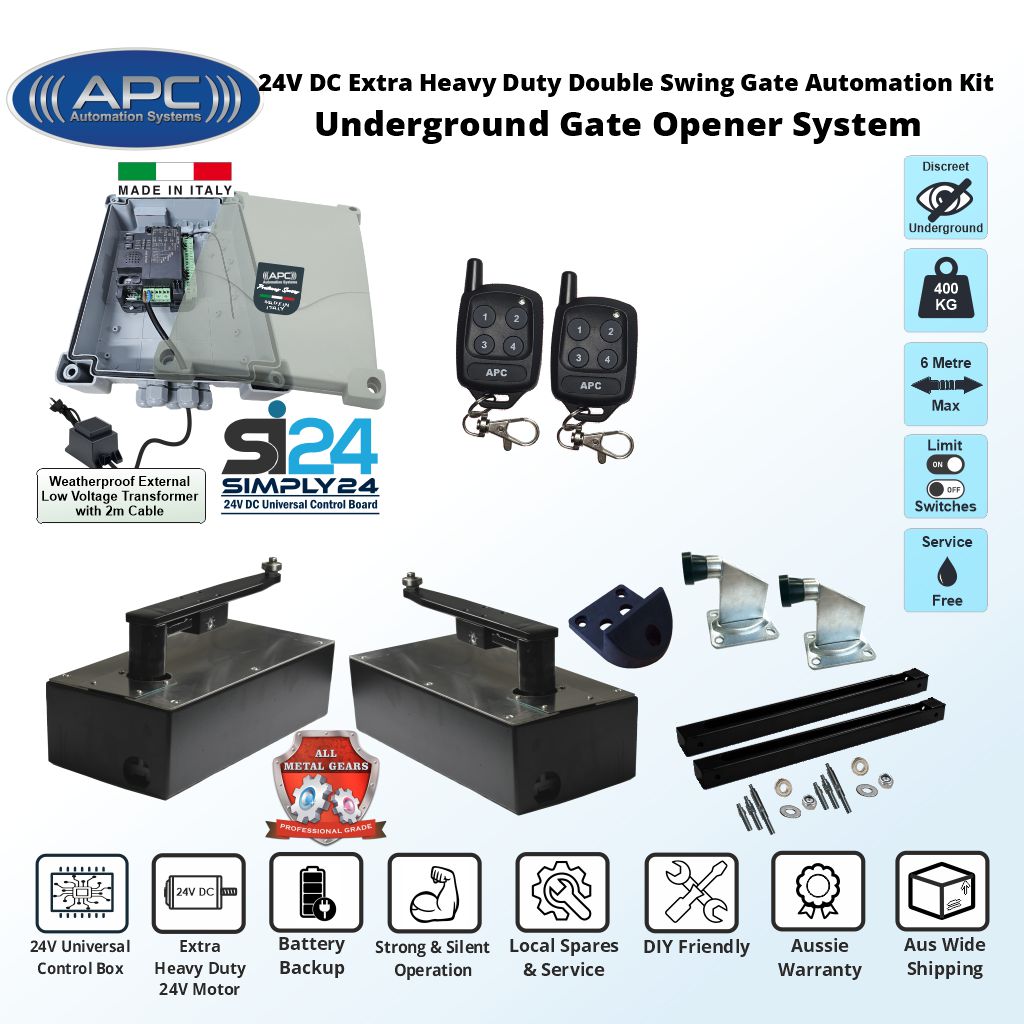

DIY Gate Opener Base Kit Discreet Underground Automatic Gate System with Italian-Made Simply 24 Universal Control Box, APC-UG2400C Extra Heavy Duty All Metal Gears Underground Gate Motor, Adjustable Limit Switches, Remote Controls, Double Swing Gate Automation
DIY Gate Opener Base Kit Discreet Underground Automatic Gate System with Italian-Made Simply 24 Universal Control Box, APC-UG2400C Extra Heavy Duty All Metal Gears Underground Gate Motor, Adjustable Limit Switches, Remote Controls, Double Swing Gate Automation
Add-On Items (Discounted when purchased along with this Kit)
Product Information
Extra Heavy Duty Discreet Underground System
Reliability & Durability
The discreet extra heavy duty 24V DC motor is a powerful unit built from all metal components including its powdercoated foundation box and stainless steel top plate, internally the motor is constructed of all metal gears with a thick and strong motor output drive.
Designed in Australia, the extra heavy duty motor is for underground installations to cater for installs where there is no space above ground for mounting a motor or for installs where the user does not want the motor above ground. Furthermore it is highly flexible in its installation methods allowing for multiple diffrent orientations and positions.
Thanks to its all metal gears this Tough and Robust system can handle large gates up to 3m width or 200kg in weight each gate.
Drainage and Conduit Holes
With a drainage hole on either side of the foundation box it can be easily plumbed to to a pit or storm water to ensure the box is never filled with water. There is also a higher position hole for the cabling from the control box to the motor.
Powder Coated Arms and the Manual Override System
The powdercoated steel linking arm which connects the motor output shaft to the drive channel and allows operation of the gate by the pivot motion.
This is achieved with the supplied bearing gliding through the powdercoated drive channel, furthermore to ensure compatibility regardless of the gate to ground clearance height three different choices of bearing height adjuster are supplied.
The easy to use manual override can be used from either side since the gate motor is a universal left/right side fitting. Simply unlock with the manual release allen key and the gate will be free and can be opened and closed manually in the case of an emergency
Powder Coated Channel
The powder coated steel drive channel bolts onto the gate (can also be welded), and allows for the bearing from the linking arm to slide through and create the pivot motion of the gate through its operation.
The internal slide stops that are supplied will fit within the channel at either end and are tightened from underneath for a clamping effect to prevent over travel of the gate system.
Motor Dimensions and Installation
Pulling to open (opening inwards) can be set to open each gate up to 120° (maximum recommended) however 130° to 160° is achievable as with underground systems there is no concern regarding the motor clashing with the gate.
Adjustable in drive channel stops are supplied with the kit if a completely discreet stop is preferred but can only be used up to a maximum of 100° open angle. External gate stop is also provided in this kit and are required for the open angle greater than 100°
Installation Method 1
Recommended option and the easiest on the operator will allow for 120°+ operation
Center pivot of gate motor (output shaft) inline with the center of the gate pivot point (hinge), arm is at a 45° angle to the drive channel/gate
Installation Method 2
Maximum 100°, if option 1 cannot be used. Preferred over option 3
Center pivot of gate motor (output shaft) offset from the center of the gate pivot point (hinge) by up to 200mm, arm is at a 45° angle to the drive channel/gate
Installation Method 3
Maximum 90°, Hardest on the operator and should only be used in special circumstances as required.
Center pivot of gate motor (output shaft) offset from the center of the gate pivot point (hinge) by up to 200mm, arm is at a 20° angle to the drive channel/gate.
24V Universal Control Box | APC SIMPLY24
The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).
System Features
Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
Customizable auxiliary output for the electric or magnetic lock.
Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
Compatible with Induction Loop and Vehicle Motion Detector.
Power trimmer to regulate motor power.
Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.
Special Features
Energy Saving Mode.
Optional battery backup system
Flexibility in programming each channel of the remote
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Customizable auxiliary output for electrical or magnetic lock
Induction Loop Compatible for auto opening or as a safety device.
Supports programmable timers.
Safety Features
Adjustable Over current adjustments
Safety Sensor connection input configurable for opening and/or closing
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Control Board Overview
Accessories Compatibility and Controlling Options
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)
Gate Automation Remote Control Features
Ready to clip onto your keyring | Gate Opener Remote Control
APC Four Button Keyring Remote Control for Gate Automation System
Featuring High-Security rolling codes transmitting a unique code chosen at random
Slim Design
Keyring Clip-on System
Completely Backwards Compatible with all legacy APC Control Boards
External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 2-meter cable.
Specifications
Mains power supply: 230 Vac +/- 10%, 50-60 Hz
Motor power supply: 24 V DC 280 W and 10 A peak motor
Warning light power supply: 24V max 15W
Gate pilot lamp power supply: 24 Vdc max 10 W
Accessories power supply (photocells &): 24 Vdc max 10 W
Radio receiver frequency: 433.920 MHz
Storable remote controls: 170
Radio antenna input: Rg58
Operating temperature: -20°C / +50°C
Galvanized Gate Stop
Galvanized steel construction for long life outdoor use
115mm Height
40mm Rubber bumper
Solid 100x80mm base
Pre-punched 10mm fixing holes
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
