SALE
Product SKU: CONNECT60-40-15-P500
In Stock
Freight Delivery
Kit Price:
$3,925.00
$5,495.00
Category: Cantilever Gate Frame and Hardware

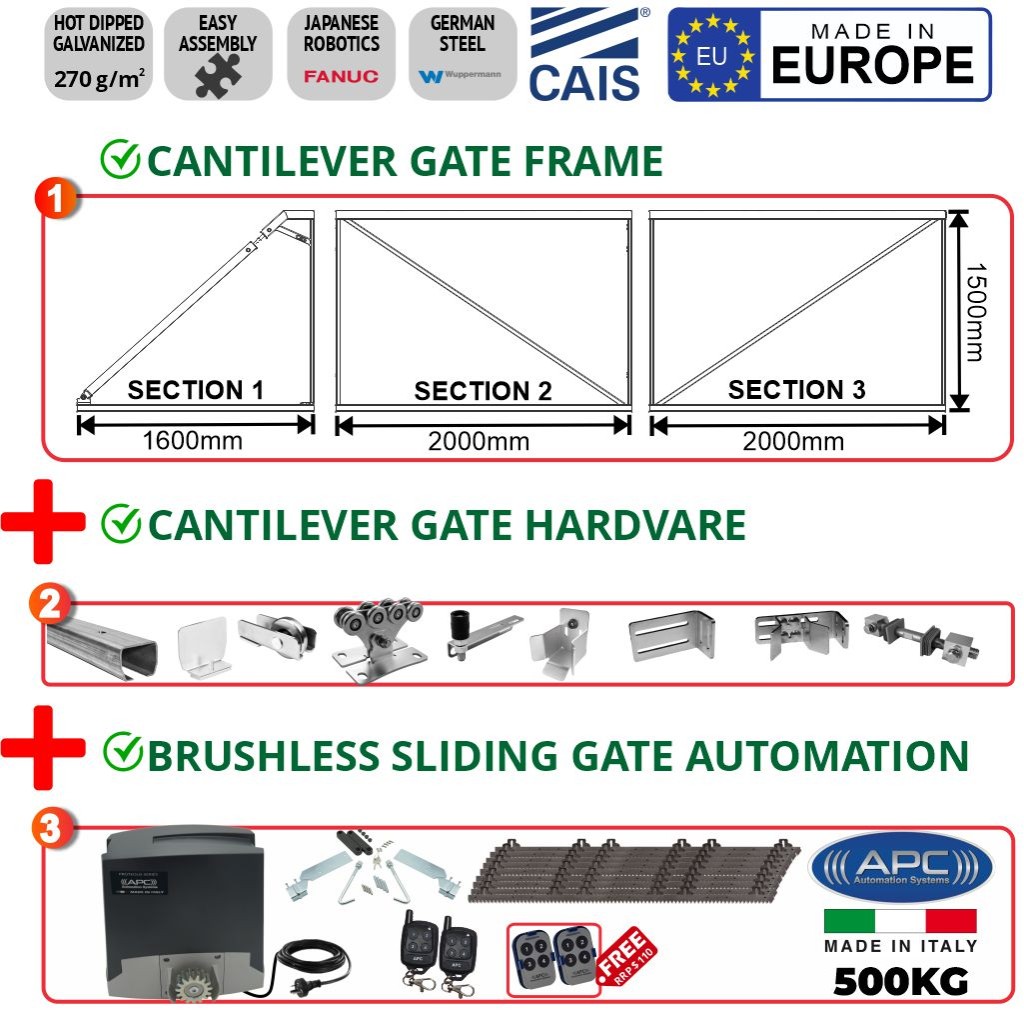

Introducing an exceptional product from our gate hardware supplier, CAIS, Made in Europe
This cantilever gate frame comes in a box to be assembled on-site.
Are you seeking the ideal gate automation system to meet your driveway, combining the latest in security and convenience?
The APC Proteous 500 automatic sliding gate opener is the perfect solution for effortless entry and secure automatic driveway gates.
The Sliding Gate Opener APC Proteous 500 boasts a cutting-edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high-duty cycle system. There is no function or feature that this system cannot perform. See the full details below.
90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra-long 10-metre sliding gate capacity
Only 150mm Narrow Depth
Automatic learning of sliding gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount, which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable.
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic gate close feature
Underside cable entry with grommets
Simple to set up left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt levelling adjustment system (30mm in any or all directions)
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Built-in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for sliding gate opening and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Are you looking to upgrade the access to your property's driveway gate with the latest in security and convenience of gate automation systems?
The APC Proteous 500 automatic sliding gate opener is the perfect solution for effortless entry and secure automatic driveway gates.
The Proteous 500kg Sliding Gate Motor features a modern programmable LCD display and optimised adjustable speed functions. This heavy-duty gate motor supports gates up to 10 meters in width and a 500kg weight capacity. It also features an optional plug-in battery backup to ensure uninterrupted operation during power outages. Ideal for commercial and residential use, the APC Proteous automatic sliding gate motor is a reliable choice for your driveway automatic gate opener system. With rich accessory options, such as remote controls, wireless keypads, and push-button switches, Wi-Fi switches with smartphone App control allow you to tailor your gate access and security.
Whether you're looking for a remote control gate opener, a solar-powered sliding gate opener for eco-friendly use, or a smart gate opener with app integration, there's a gate automation system tailored to your needs. Automotion Plus offers Australia-wide the best solutions for the widest range of sliding gate openers, prioritising durability, ease of installation, and local support. This includes options such as DIY gate opener kits and secure-smart gate opener access control solutions. From APC electric gate openers to heavy-duty sliding gate motors, there's a wide selection designed to secure your home or business with style and reliability.
Constant DC Accessories Output
Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (APP-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)
| Transformer | 24V AC |
| Rectification | In Housing Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 300 Watts |
| Maximum Gate Length | 10 Metres |
| Maximum Gate Weight | 500 KG |
| Speed | 28 cm/s |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Motor Duty Cycle | 90% |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 34V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |

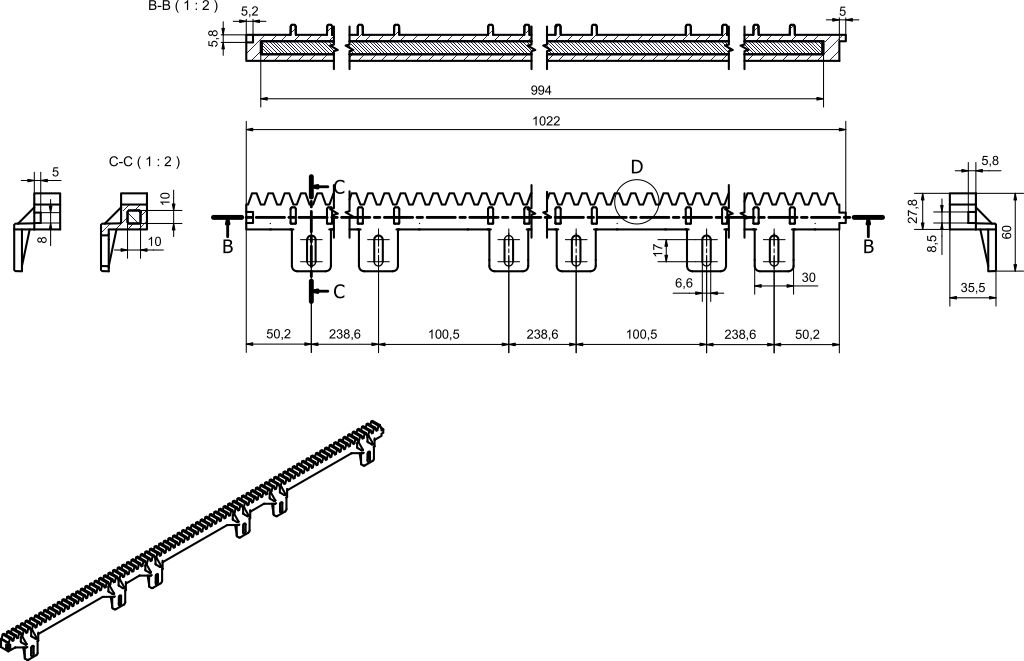

Nylon gate rack with a steel core for screwing to your sliding gate rail to allow the gate motor to act. Compatible with sliding gate and cantilever gate systems.
The fastening system, "Three Points", on the six rack attachments (in this model, facing upward, opposite the teeth) guarantees a higher capacity than the prior models, up to a maximum of 800 KG.
The material used is always a polyamide, 30% fibreglass but elastomeric, to guarantee great performance even in very cold environments.
Nylon sliding gate rack used for both domestic and commercial sliding and cantilever gate systems. Up to 800kg with 10×10 steel core to the centre. There are six brackets up mounting lugs with a 25mm gap in-between, allowing for adjustability in case of ground movement over time.
The benefit of brackets up is that they allow greater reach to the motor gears when the gate's bottom beam is positioned higher than the motor.
The six bracing lugs allow for a higher load capacity on the rack at 800kg.
| Application | Screw on the lengths of the gear rack to enable the sliding gate to move when actuated. |
| Material | Nylon Coated with Steel Core |
| Capacity | 800KG |
| Country of Manufacture | Italy |
