NDAA Approved 4MP CCTV IP Camera with CMOS Sensor, True Wide Dynamic Range (WDR), Video Tampering Detection, Smart IR | Digital Watchdog(DW®) NDAA Compliant IP Camera

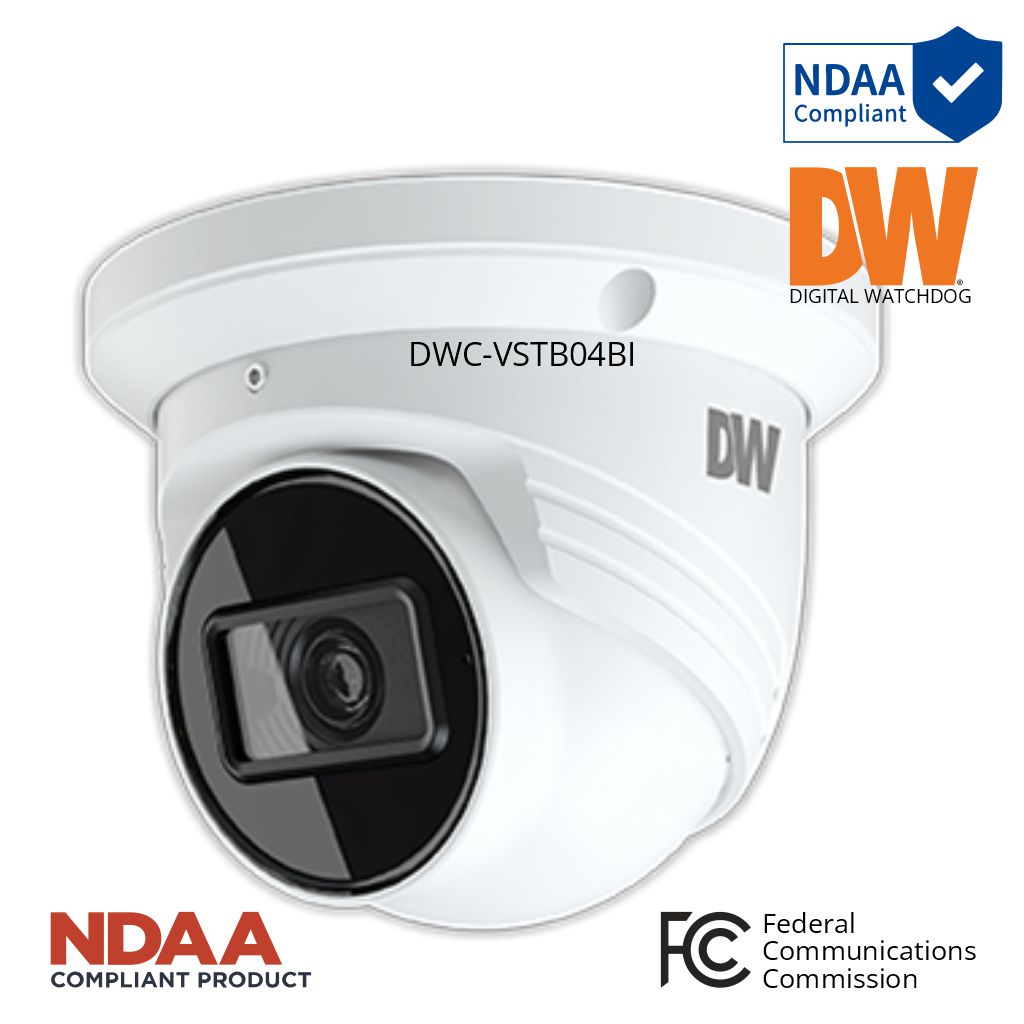

NDAA Compliant 4MP IP Camera with 2.8mm Fixed Lens and Smart IR | Digital Watchdog (DW®) DWC-VSTB04Bi CCTV IP Camera

4MP CCTV IP Camera with CMOS Sensor, True Wide Dynamic Range (WDR), Video Tampering Detection, Smart IR

MEGApix 4MP Turret IP Camera with 2.8mm Fixed Lens and Smart IR

Why is the National Defense Authorization Act (NDAA) Important?
(Click here for more...)
The NDAA prohibits federal agencies from deploying cameras manufactured by blacklisted companies. This legislation aims to safeguard the integrity of critical infrastructure and sensitive government facilities by restricting the use of non-compliant technology.
By choosing NDAA-approved cameras, you can be sure that your security infrastructure is not compromised by unvetted or unauthorised technology.

Click here for more...

Features of DWC-VSTB04Bi 4MP IP Camera | Digital Watchdog(DW®)

• 4MP 1/3" image sensor at real-time 30fps
• 2.8mm fixed lens
• True Wide Dynamic Range (WDR) for clear images in challenging light
• Simultaneous streaming and multiple codec options for smart bandwidth management
• 100' Smart IR™ with intelligent camera sync for clear B/W images with no need for external light
• Line crossing video analytics
• Perimeter intrusion video analytics
• Video tampering with scene-change detection video analytics
• Video tampering with video-blur detection video analytics
• Video tampering with abnormal colour detection video analytics
• White and black housing options available
• Smart DNR™ 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
• Privacy zones cover sensitive areas in the camera's field of view.
• Backlight compensation (BLC)
• Two-way audio with a built-in microphone for direct communication between the monitoring station and the camera's location
• Local SD card slot for local recording in case of network loss
• Web server built-in for easy camera management from any browser
• PoE and DC12V for single cable simplified installation
• NDAA compliant for federal and government projects
• IP67- and IK10-rated camera housing built to last
• 5-Year warranty

What Is The NDAA? (Click Here)

Line crossing

An event notification will be sent once a pre-defined line is crossed from either direction.

Perimeter intrusion

Once a pre-defined area is set, any lines crossing towards the area, out of the area, or both will trigger an alarm.

Video tampering detection – abnormal colour detection

When the camera’s colour reproduction is changed, an event notification will be sent.

Video tampering detection – scene change

When the camera is moved and the Field of View (FoV) is different, an event notification will be sent.

Video tampering detection – video blur

When a sudden blur or loss in visibility is detected, an event notification will be sent.

Smart IR™

Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects in the front of the scene and offers a clear image in B/W without any loss of detail.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a broader range of dark and bright lighting in the same image.

H.265 codec support

High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.

Specifications

Image sensor	4MP 1/3" CMOS sensor (x4)
Maximum resolution	4MP
Minimum Scene Illumination in colour	0.0 lux (B/W), 0.005 lux (color)
Total Pixels	2560 (H) x 1440 (V)
Lens
Focal Length	2.8mm
Horizontal Field of View (HFOV)	94°
IR Distance	100' range Smart IR™
Lens Type	Fixed Lens
Vertical Field of View (VFOV)	50°
I/O
Audio compression	G.711A / U
I/O Audio in/out	*Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. 1 input, one microphone built-in
Operational
3D digital noise reduction	Smart DNR™ 3D Digital Noise Reduction
Auto gain control	Auto
Camera Analytics	Line Crossing, Perimeter Intrusion, video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection)
Day and night	Auto day/night, Day (color), Night (B/W)
De-fog	Yes
Memory slot	Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32
Mirror/flip	Yes
Motion Detection	Yes
Operational Notifications	Email, FTP server
Privacy Zones	8 programmable privacy masks
Sharpness	Yes
Shutter Mode	Auto, Manual
Shutter Speed	1/30 ~ 1/100000
White Balance	Yes
Wide Dynamic Range (WDR)	True WDR 120dB
Network
Bitrate Control	Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IP	IPv4, IPv6
LAN	802.3 compliance 10/100 LAN
Network resolution	4MP, 3MP,2.1MP/1080P, 720P, D1, 480×240, CIF (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Network Web Viewer	Microsoft Edge® browser, Windows® OS
Protocol	802.1x, DDNS, DHCP, FTP, HTTP, HTTP, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Security	Digest authentication (ID/PW), IP filtering, MAC filtering
Stream Speed	Up to 30fps at all resolutions
Streaming Capability	Dual-stream at different rates and resolutions
Video Bitrate	64Kbps~8Mbps
Video Compression Type	H.264, H.265, MJPEG
Video Management Software	Any ONVIF conformant CMS, DW Spectrum® IPVMS
Environmental
Compliance
Environmental Operating Humidity	0-95% RH (non–condensing)
Environmental Operating Temperature	-22°F ~ 140°F (-30°C ~ 60°C)
Mounting Accessories (Required/Optional)	Optional. Sold separately
Mechanical
Camera Dimensions (H X W X D)	4.25" x 3.77" (108 x 96 mm)
Camera Weight	1.01 lbs (0.46 kg)
Housing	Turret
IK rating	IK10 Rated
IP rating	Weather Resistant (IP67)
Materials	Aluminum die-casting
Electrical
Power Consumption	DC12V: max 5W, 416.6mA, PoE: max 5W
Power Requirements	Adapter not included, PoE
General
Warranty	5 Year Warranty
