Product SKU: EV-D299

Cast Alloy Standard Surface Mount Outdoor Station

  • In Stock

Price :

$169.00

Get More Info.. Get More Info..

Product Information

TOO EZY, 2 wire twisted cable

EV-D299 Vandal proof door station

TOO EZY, 2 wire twisted cable
TOO EZY, 2 wire twisted cable
European slim design weatherproof, vandal proof, high quality double power coated alloy door station, it is fitted with a very handy confirmation LED, those LED's light up when the door bell is pressed or when the unlocking is activated another word your visitor will know that the door bell has been rung and the lock is unlocked.

Door Station Specifications
- Surface mount, fits on all walls, brick piers and most metal posts.
- Compatible with all of the Eyevision® 2 wires systems.
- High performance CCD camera.
- 2 unlocking/opening operation of 2 locks, 2 automatic gates or 1 of each.
- Call confirmation LED indicator.
- Unlock confirmation LED indicator.
- Adjustable camera angle.
- Adjustable microphone volume.
- Adjustable Speaker volume.
- 6 Infrared for night viewing.
- Auto white balance.
- Big name tag with back light.
- 2 Wires to the automatic gate or 12v electric striker.
- Lock output power: 12Vdc, 400mA (supplied by system).
- Power Consumption: Standby 1W , Working 12W.

Door Station Dimensions
187mm High
98mm Wide
43mm Deep (at top) 25mm Deep (at bottom)

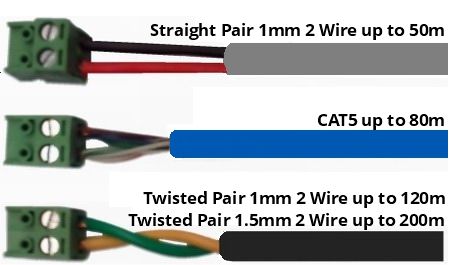

Cable Requirement

TOO EZY, 2 wire twisted cable CAT5 up to 80m between the door station and each apartment.
Straight Pair 1mm2 up to 50m between the door station and each apartment.
Twisted Pair 1mm2 up to 120m between the door station and each apartment.
Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.
Recommendation: The Eyevision 2 wire monitors are a very powerful monitor and will deliver high quality video and audio, it is recommended to use the best quality cables that will suit your installation, allows use cables with very good quality copper conductor in order to maximize the clarity of the i-Touch V2.
If you are not committed to cable such as CAT5 or Straight Pair, then it is highly recommended to use a Twisted pair between 1mm2 & 1.5mm2, using this cable will guarantee the best optimized results in video and audio transmission for up to 200m.

TOO EZY, 2 wire twisted cable is all that is required to connect this high tech video intercom system.
The following examples are the most common connection methods for a standard connection of up to 14 monitors in a home.
TOO EZY, 2 wire twisted cable TOO EZY, 2 wire twisted cable TOO EZY, 2 wire twisted cable

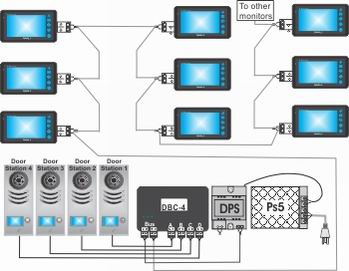

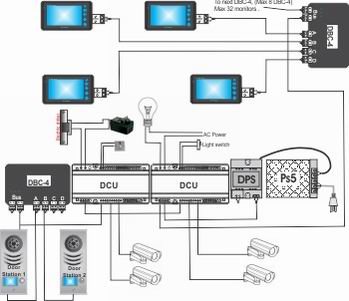

Example of connection of up to 14 monitors using the IN/OUT method while also connecting 4 door stations using a DBC distributor Example of connecting up to 16 monitors using the DBC distributor for the monitors and also an example of connecting an electric gate opener and an electric striker Example of connecting up to 16 monitors using the DBC distributor for the monitors, a DBC distributor for multi-door stations and a DCU for multi CCTV cameras, Exit button and AC light switching
