Product SKU: FORTECO-2200-AC-KB

Build Your Own 240V AC Extra Heavy Duty Italian Made Forteco Sliding Gate Automation Kit with FORTECO 2200KG Capacity AC Powered Strong Sliding Gate Motor, Remote Control Automatic Electric Sliding Gate Kit

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

MADE IN ITALY
  • Automatic Electric Sliding Gate Kit Extra Heavy Duty FEATURE RICH Sliding Gate Opener Kit

Build Your Own 240V AC Extra Heavy Duty Italian Made Forteco Sliding Gate Automation Kit with FORTECO 2200KG Capacity AC Powered Strong Sliding Gate Motor, Remote Control Automatic Electric Sliding Gate Kit

Product SKU: FORTECO-2200-AC-KB

  • In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,244.00

  • Italian Made Electric Sliding Gate Opener FORTECO , 2200 KG / 240V AC Powered

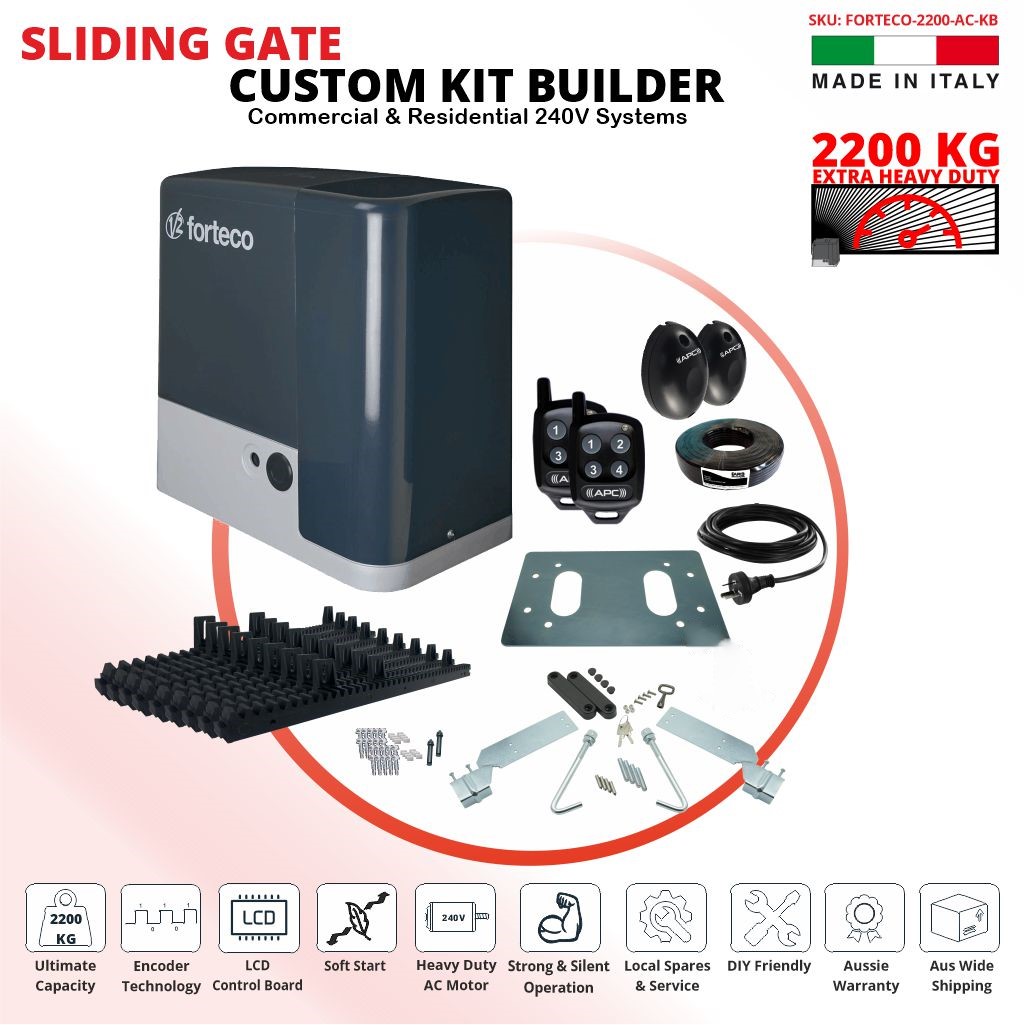

  • Kit Includes

    01 FORTECO 2200 AC, Italian Made Strong Sliding Gate Motor (2200KG Capacity AC Powered) (QTY: 1)
    02 APC Four Button Keyring Remote (QTY: 2)
    03 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    04 10m 4 Core Non Shielded Cable (QTY: 1)
    05 1020mm Nylon Rack (QTY: 5)
    06 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Extra Heavy Duty FORTECO Sliding Gate Motor

Extra Heavy Duty FORTECO Sliding Gate Motor

At a glance

The FORTECO 2200 EXTRA HEAVY DUTY system with a rich feature set of full programmability using the onboard intuitive LCD interface. Suitable for the novice user with simple setups all commercial sites with its advanced features system. There are many functions and features that this system can perform. See the full details below.

AC Sliding Gate Automation System. Easy Installation All in one Motor and Control Panel for Sliding Gate. Suitable for sliding gates up to 2200kg
Commercial 240V Systems Electric Gate Automation, Extra Heavy Duty Automatic Sliding Gate Openers.


TECHNICAL FEATURES


FEATURES UNIT FORTECO-2200-AC
Gate maximum weight kg 2200
Power supply vhz
V / Hz
240 / 50
Maximum power W 800
Full load current
A 4
Gate maximum speed
m/s
0.16
Maximum thrust
N
1550
Duty cycle
% 35
Pinion -
M4-Z18
Working temperature
°C
-20 ÷ +55
Weight Kg 18
Protection degree IP 44
Maximum load on 24 Vac Accessories W 10




FORTECO STRENGTHS

  • Accurate and safe operation with encoder
  • Obstacle detection
  • Self-learning of opening and closing times
  • Synchronized operation of two motors using the SYNCRO module
  • Magnetic limit switches, all accurate and reliable over time
  • Programming achieved using 3 program buttons and display
  • Plug-in adaptor for modular radio receiver MR2
  • 2 inputs for photocells with self-test function
  • 2 inputs for mechanical or resistive safety edges
  • Courtesy light output
  • Soft start (programmable start-up rate)



DIMENSIONS

Extra Heavy Duty FORTECO Sliding Gate Motor



Gate Motor and Installation Kit

Extra Heavy Duty FORTECO Sliding Gate Motor



Extra Heavy Duty Feature Rich 240V Italian Sliding Gate Motor Overview



System Features

Capacity

 2200KG Capacity (2.2 Tonne)
 Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
 35% Duty Cycle

Everything and more as standard

 Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
 Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available), and induction loop
 Fast and Slow Speeds are adjustable
 Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
 Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
 Party Mode System to keep gates opened when configured for use with the automatic close feature
 Underside cable entry with grommets
 Simple to setup left and right side magnet system
 Strong STEEL Pinion Gear
 Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all directions)

Special Features

 Soft Start (Ramping feature) with adjustable cut-in points
 Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
 Induction Loop Compatible for auto opening or as a safety device
 Supports programmable timers

Safety Features

 Adjustable Over current adjustments
 Built-in Encoder with adjustable sensitivity
 Safety Sensor connection input configurable for open and/or closing
 Supports Safety Edges
 Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

 Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
 Remote controls
 Induction Loops
 Weekly Timers
 Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
 Keypads (Wired and Wireless Options Available)
 Exit/entry sensors
 Intercom system with dry contact output
 Automatic switching timer
 WiFi Control System (App-Based Control)
 GSM Control Systems (Mobile Call/SMS-based Control)



Remote Features

APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •
