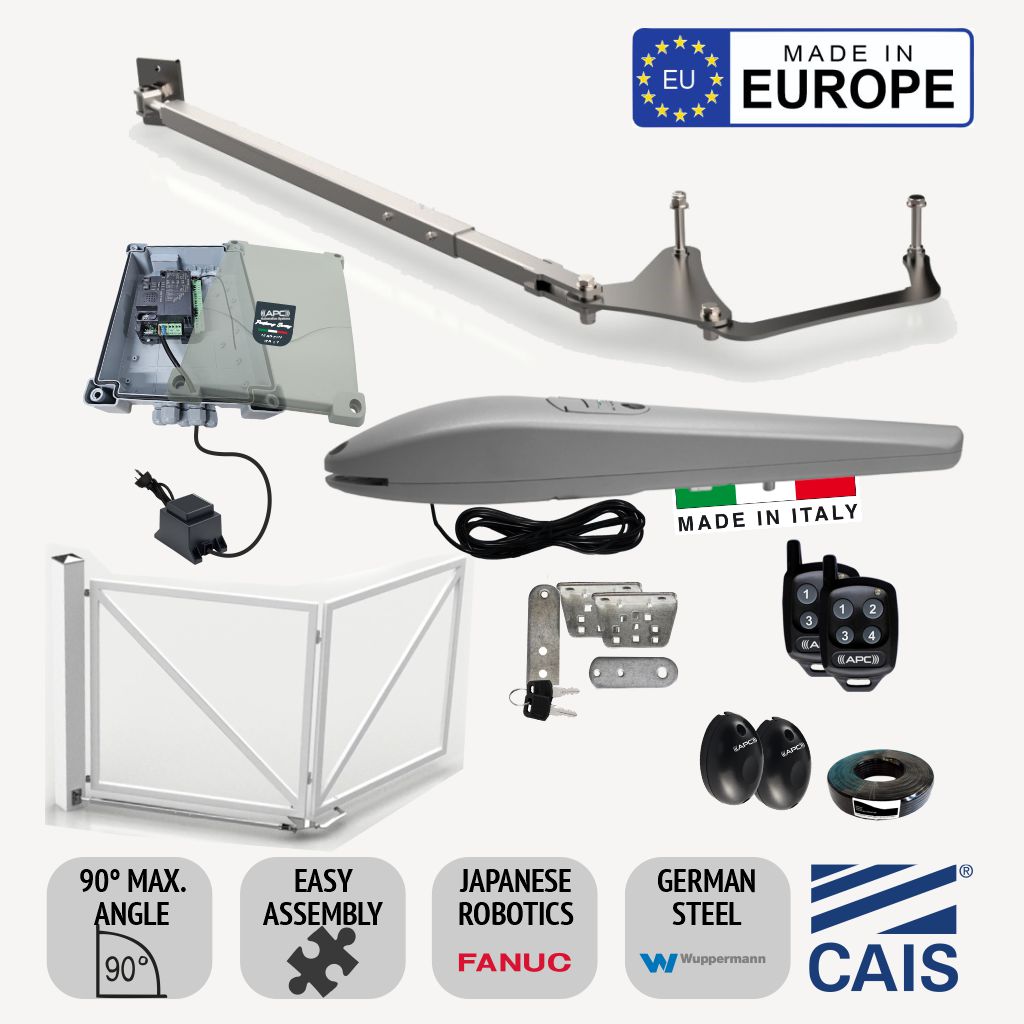

Bi-folding Space-Saving Feature Single Swing Gate Hardware (CAIS) with DC Powered Automatic Electric Gate Automation Kit Extra Heavy Duty Italian Made Proteous PS-3000 Linear Actuator Gate Opener (Gates are not included.)
Bi-folding Space-Saving Feature Single Swing Gate Hardware (CAIS) with DC Powered Automatic Electric Gate Automation Kit Extra Heavy Duty Italian Made Proteous PS-3000 Linear Actuator Gate Opener (Gates are not included.)
A traditional type swing-gate use up to 100% more backspace in its opening and closing if compared with bi-folding swing gates. Meaning that the standard space taken up by a conventional swing gate will be free to utilise in some other way. The CAIS TWIN DRIVE bi-folding hardware is particularly useful in places where space is at a premium, such as urban areas with high population density. The traditional swinging gate will take up valuable space and can be quite inconvenient to use at times. The CAIS TWIN DRIVE bi-folding system will free up more space for vehicles or foot traffic.
The Installation Steps | Bi-folding Driveways Swing Gate Complete Hardware
The installation does not require complicated steps and materials. No welding is required; therefore, the working time is not too long. We invite you to follow the below installation steps.
Other Benefits of Bi-Folding Gate Hardware (Swing Gate Leaf Twin Drive)
Swing Gate Bi-Folding TWIN DRIVE is an ideal solution for driveway entrance access. It is designed to allow a vehicle user full manoeuvrability around a property. A Bi-Folding Gate will be less expensive to automate than a double swing gate since it requires only one gate operator instead of two. It is a perfect solution for the entrance with a gravel surface, considering that you do not need to lay down the rails. There‘s no doubt that Bi-Folding Gates is a money and space-saving alternative that is convenient and can be very stylish.
Extremely Quiet
In the past, Swing Bi-Folding gates were originally very noisy. Older versions use steel rails and wheels, which can be very noisy compared to New CAIS TWIN DRIVE Trackless Bi-Folding System.
Reliable
The CAIS TWIN DRIVE Trackless Bi-Folding System is reliable in any water condition, even if the wind blows heavily.
Bi-Folding Swing Gate System's Special Needs
They need a special frame, so a few factors need to be considered, such as cross-bracing. The reason why cross-bracing is fundamental is primarily to keep the leaf from sagging. A compression cross-brace transfers weight from the top bar by pushing down against the bottom hinge or a vertical component or post, which transfers the load to both hinges. Improper or missing cross-bracing will cause the Vertical deflection of the leaf. Cross-bracing should always “lean into opening”. Furthermore, the bi-folding swing gate only works properly when the internal hinges are properly welded concerning the vertical axle. You‘ll also need to consider the wiring of safety edges, as this feature should be accommodated in the frame.

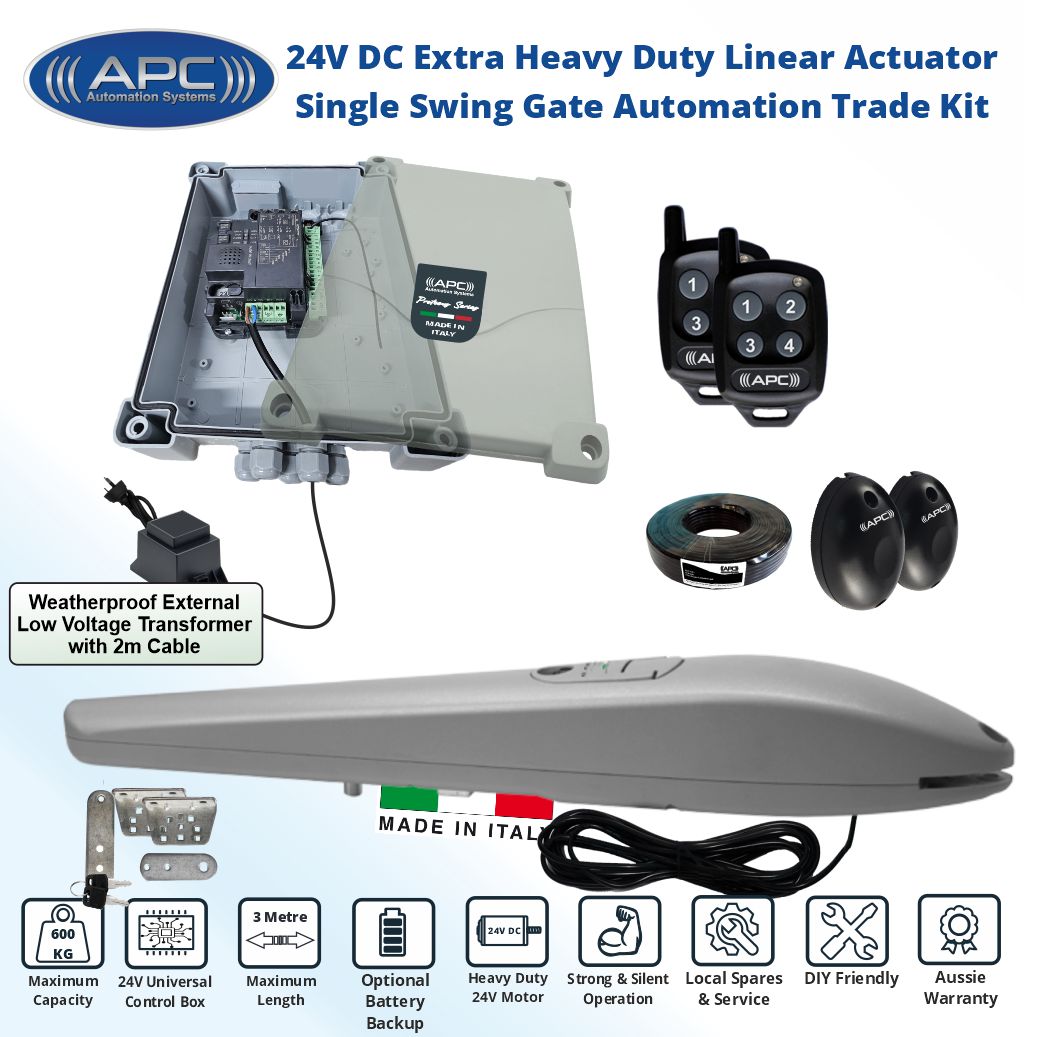

Italian Made Extra Heavy Duty Linear Actuator
Packing a punch the Proteous 3000 system can deliver 2000N of thrust to operate gates up to 600kg or 3m in length. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.
Adjustable built in stopper
Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.
Actuator Overview
System Capacity
Installation Geometry
Specifications
Thrust
2000N
Motor Voltage
24v DC
Manual override
Via override key supplied
Working temperature
-20° - +50°
Duty Cycle
90%
Maximum stroke
360mm (without stoppers -30mm for each stopper)
Gates size
3m max
Gate weight
600kg max
Feature Rich and Highly Versatile Control Box
The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
System Features
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes) Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials) Automatic learning of gate travel limits Completly adjustable slowdown points Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop Fast and Slow Speeds points are adjustable along with there power Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options) Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes Party Mode System to keep gates opened when configured for use with the automatic close feature Five underside cable entry with glands Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Special Features

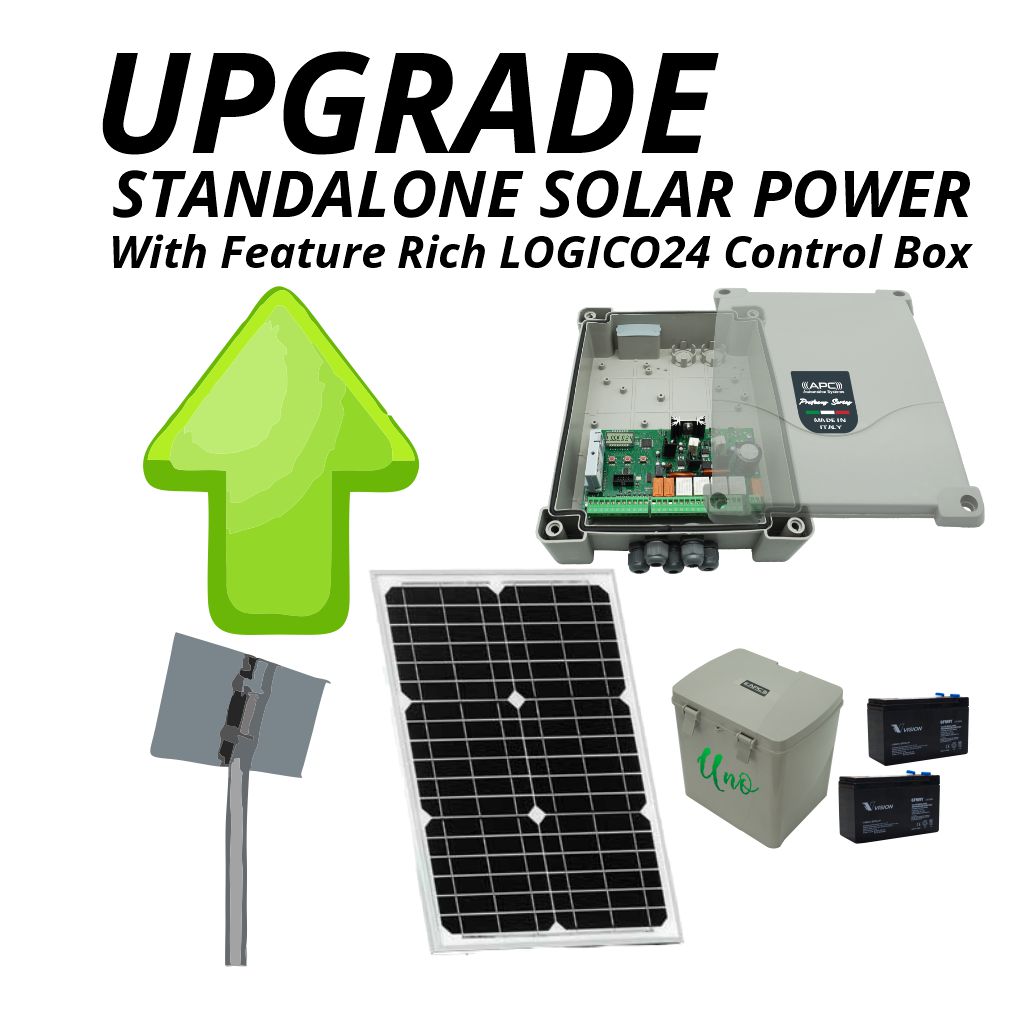

Energy Saving Mode (5mA Standby Current) Optional battery backup system Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light) Soft Start/Soft Stop (Ramping feature) with adjustable cut in points Direct electric lock connection Induction Loop Compatible for auto opening or as a safety device Supports programmable timers
Safety Features
Adjustable Over current adjustments Supports encoder motors and limit switch motors Safety Sensor connection input configurable for open and/or closing Supports Safety Edges Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface
Control Board Overview
Accessories Compatibility and Controlling Options
Constant DC Accessories Output Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation Remote controls Induction Loops Weekly Timers Entry and Exit push button with isolation key switches (Wired and Wireless Options Available) Keypads (Wired and Wireless Options Available) Exit/entry sensors Intercom system with dry contact output Automatic switching timer WiFi Control System (App Based Control) GSM Control Systems (Mobile Call/SMS based Control)
Remote Features
Specifications
Transformer
24V AC
Rectification
In Box Rectifier
Motor Output Voltage
24v DC
Max Operating Power
250 Watts (Accesories + Running Motors)
Max. Accesories Load
7W
Control Board Duty Cycle
80%
Working temperature
-20° - 50°
RF
APC Rolling code 433.92mhz
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
24V DC
Operator Inbuilt Safety
Over current + Encoder Sensitivity
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
Up to 15 Metres Infared beam operating distance
Only powers on when the command is given to close the gates
Alignment led to assist in the installation process
