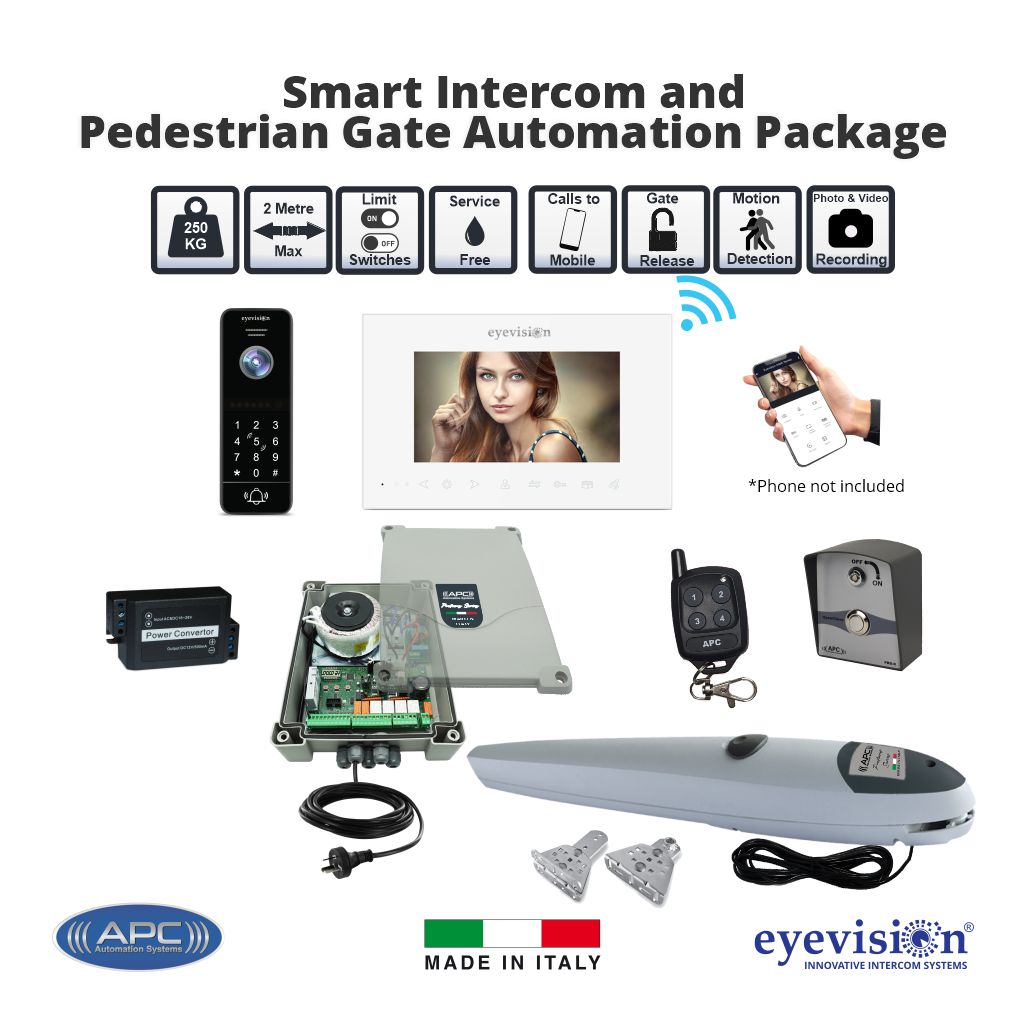

Product SKU: APC-PS-2000-DC-EV-WF7-KP21BK-PED-TK
Packing a punch the Proteous PS-2000 system can deliver 1500N of thrust to operate gates up to 250kg or 2m in length. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.
Maximum leaf length: 2 M
Maximum leaf weight: 250 Kg
| Thrust | 1500N |
|
Motor Voltage
|
24v DC
|
|
Manual override
|
Via override key supplied
|
|
Working temperature
|
-20° - +55°
|
|
Duty Cycle
|
50%
|
|
Maximum stroke
|
320mm (without stoppers -30mm for each stopper)
|
|
Gates size
|
2m max
|
|
Gate weight
|
250kg max
|
The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
| Transformer | 24V AC |
| Rectification | In Box Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 250 Watts (Accesories + Running Motors) |
| Max. Accesories Load | 7W |
| Control Board Duty Cycle | 80% |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
The eyevision Intelli Series intercom is a feature rich state of the art intercom system boasting every feature requested from an intercom syste (and much more...). Any visitor calls can be recieved by the APP on your smartphone or table along with the monitor at the same time with a large feature set from the APP and also the indoor monitor. No extra modules are required to connect to the internet as the WF 7 slimline indoor monitor has built in Wi-Fi and is able to connect directly to your homes 2.4GHZ Wi-Fi connection. Two oudoor stations can be connected for front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home allowing for the visitors call to be answered from any station and transfered to a diffrent station if required. Within the home you can selectivly intercom between any of the installed indoor monitors. All monitors connected into the system can view any of the installed CCTV camers (up to TWO can be connected into the system). If the CCTV cameras are interconnected with a seperate alarm sensor the system can have alarm recording events occur which can be saved directly to a micro SD card. The intelli series can have a common release connected directly to the monitor allowing for simultaneous front gate - front door release making it easier than ever to let a guest in without having to switch between menus or running to the door. Eyevision Intelli Series Intercom Systems
Tuya App for Direct to Phone
Indoor Monitor Technical Specifications
Screen Size
7" 1024x600 AHD LCD Display
Power
12-15V DC
Wi-Fi
Yes, 2.4GHZ
SD Card
Micro SD (Not Supplied) Class 10 up to 32GB
CCTV Input
Maximum 2
Alarm Sensor Input
Maximum 2
Outdoor Unit Input
Maximum 2
Indoor Monitors
Maximum 6
The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing and the guest may be standing to its left or right side. The wedge is a universal mount allowing for both left facing and right facing setups. Outdoor Station Features
45° Angle Wedge
Outdoor Station Technical Specifications
Power
12-15V DC
Relay
NO/NC
Exit Button Input
Yes
Swipe Tag Type
IC Tag
IP Rating
IP65
Wiring Diagram for a basic installation
Wiring Diagram for an expanded system
Cabling & Distances
