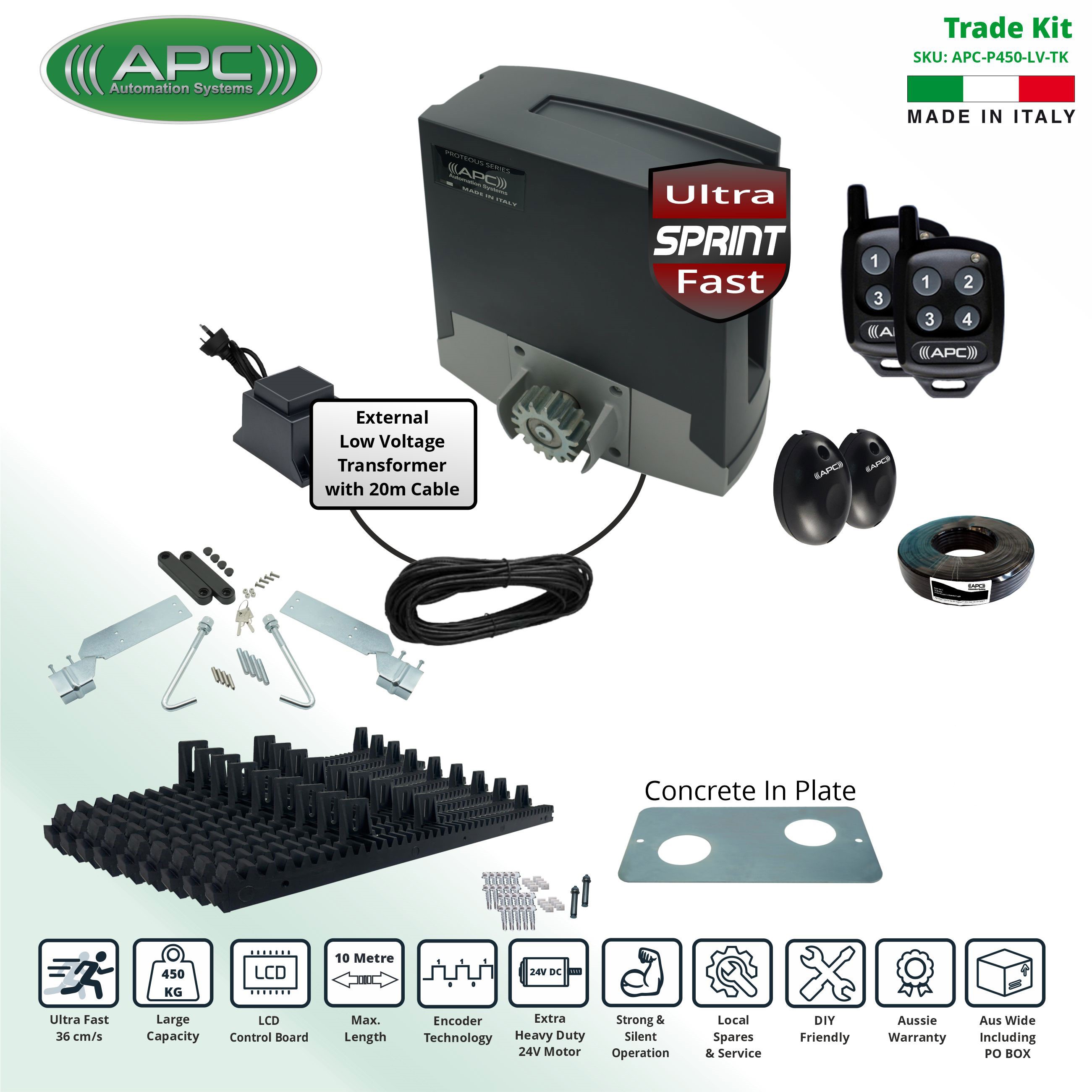

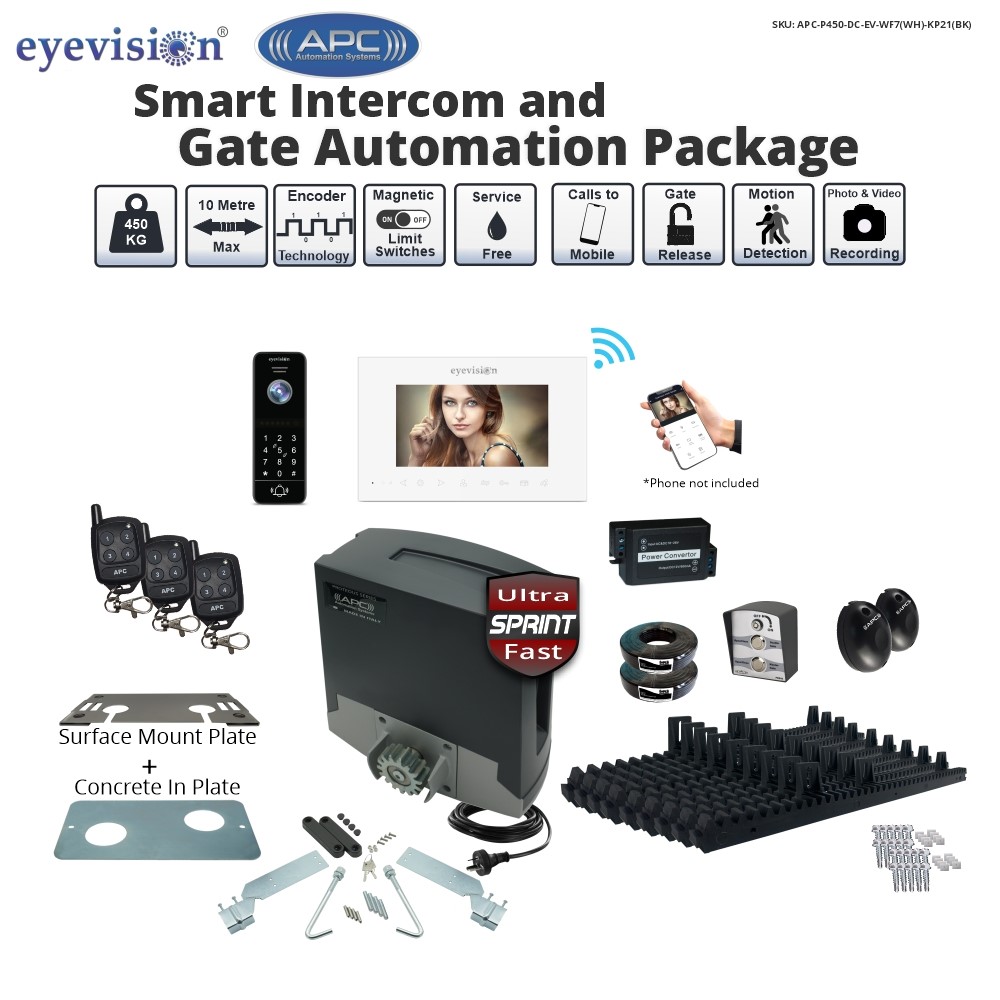

APC Smart Electric Gate Opener Combo, Proteous P450 Sprint Electric Gate Automation, ULTRA Fast Automatic Sliding Gate Opener with WiFi Intercom Smartphone Access Control System
APC Smart Electric Gate Opener Combo, Proteous P450 Sprint Electric Gate Automation, ULTRA Fast Automatic Sliding Gate Opener with WiFi Intercom Smartphone Access Control System
Add-On Items (Discounted when purchased along with this Kit)
Product Information
Heavy Duty ULTRA FAST 24V Italian Sliding Gate Opener Motor Overview
At a glance
The Proteous 450 Sliding Gate Opener provides the ultimate in operational speed whilst supported by a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.
Gate Automation System Features
Capacity
Ultra Fast 36 CM per Second Speed
70% Duty Cycle (Can operate for up to 42 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
450KG Capacity
Ultra long 10 metre gate capacity
Only 150mm Narrow Depth
Everything and more as standard..
Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)
Special Features
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Safety Features
Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface
Control Board Overview
Accessories Compatibility and Controlling Options
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Remote Features
Dimensions
Installation Options

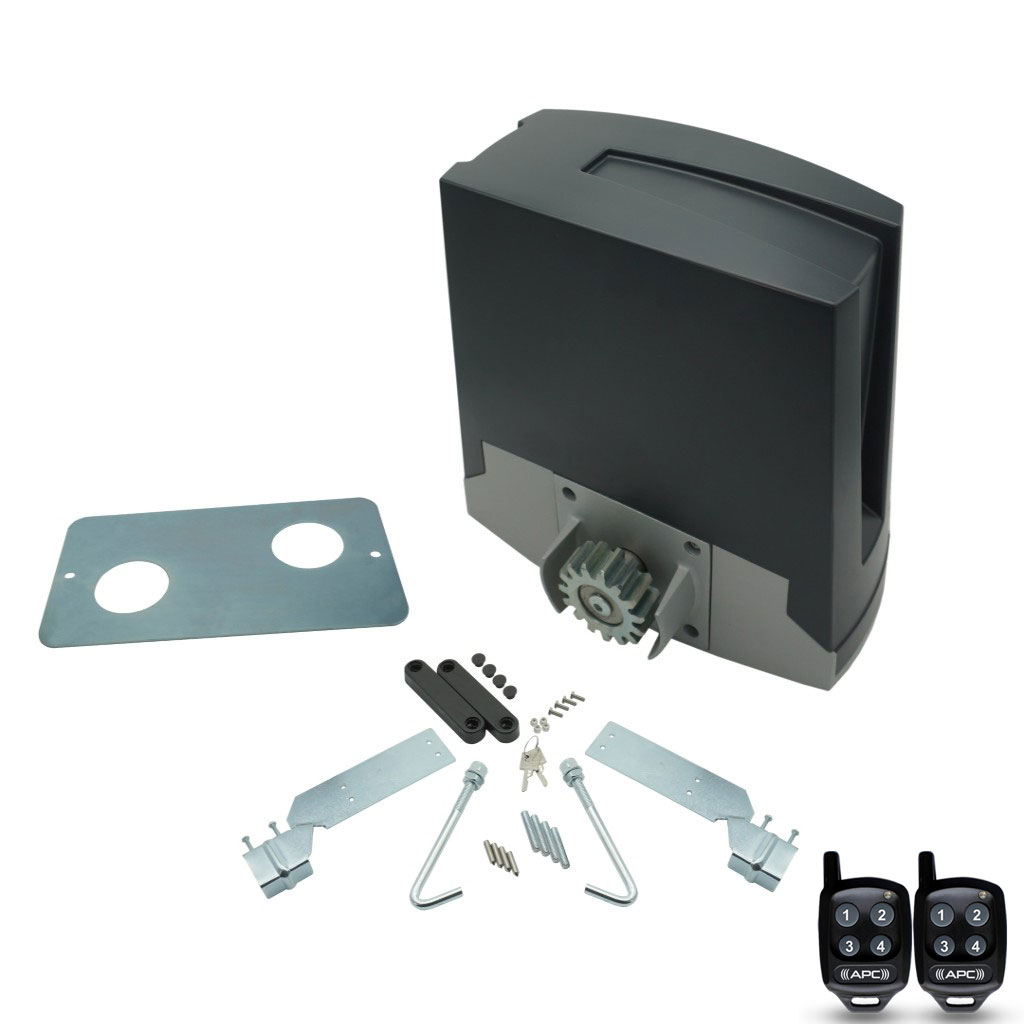

Concrete in Base Plate
Surface Mounted Raised Base Plate (Add-On Item)
Four point Tilt Leveling
Specifications
Transformer
24V AC
Rectification
In Housing Rectifier
Motor Output Voltage
24v DC
Max Operating Power
250 Watts
Maximum Gate Length
10 Metres
Maximum Gate Weight
450 KG
Speed
36 cm/s
Working temperature
-20° - 50°
RF
APC Rolling code 433.92mhz
Motor Duty Cycle
70%
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
34V DC
Operator Inbuilt Safety
Over current + Encoder Sensitivity
Optional Battery Back Up
An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the Proteous system.
Compartment with Battery Pack and Charger Installed
Wired Double Push Button with Isolation Key
The wired double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.
It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number for either the full gate operation or pedestrian function.
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
Up to 15 Metres Infared beam operating distance
Only powers on when the command is given to close the gates
Alignment led to assist in the installation process
Weather sealed with the supplied cover seals
Easy screw down wiring termination
Eyevision Intelli Series Intercom Systems
The eyevision Intelli Series intercom is a feature rich state of the art intercom system boasting every feature requested from an intercom syste (and much more...).
Any visitor calls can be recieved by the APP on your smartphone or table along with the monitor at the same time with a large feature set from the APP and also the indoor monitor. No extra modules are required to connect to the internet as the WF 7 slimline indoor monitor has built in Wi-Fi and is able to connect directly to your homes 2.4GHZ Wi-Fi connection.
Two oudoor stations can be connected for front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home allowing for the visitors call to be answered from any station and transfered to a diffrent station if required. Within the home you can selectivly intercom between any of the installed indoor monitors. All monitors connected into the system can view any of the installed CCTV camers (up to TWO can be connected into the system). If the CCTV cameras are interconnected with a seperate alarm sensor the system can have alarm recording events occur which can be saved directly to a micro SD card.
The intelli series can have a common release connected directly to the monitor allowing for simultaneous front gate - front door release making it easier than ever to let a guest in without having to switch between menus or running to the door.
System Capacity & Capabilities
Supports up to TWO Outdoor Stations each with its own electric striker/gate release feature
Supports up to SIX indoor Monitors
Common independent electric striker/automatic gate release feature
Supports up to Two CCTV Cameras (CVI,TVI,AHD or CVBS up to 1.3MP)
Supports Motion Detection for Outdoor Stations (uses its own built in sensor)
Supports Motion Detection/Alarm Function for CCTV using external PIR or Reed Switches
Supports live video stream to a DVR
Indoor Monitor Base Features
Built-in WiFi to connect to your home internet connection
Tempered Glass with Touch Sensitive Buttons
Simple easy to use user Interface
Free to use Tuya Smart APP for all modern mobile phones and tablets
11 Languages to choose from
Ultra Slim 18mm Depth
7" TFT LCD Monitor 1024x600 HD Resolution
Built in mute switch
Intercom calls direct to Smart phone and Monitor Simultaneously
Intercom internal call and Call transfer
Calender screen (time and date) option before entering the main menu
Anytime REALTIME monitoring of any connected outdoor station/cctv camera
Set scheduled ring volumes for Morning, Afternoon, Evening and Night
Can Enable/Disable Rigtone at the outdoor station
Special Features (Micro SD Required)
Automatic recording for Motion Detection and Alarm events
Digital Photo Frame on Standby
MP3 Player
Away Voice Message (Voicemail System)
Custom ringtones
Tuya App for Direct to Phone
Indoor Monitor Technical Specifications
Screen Size
7" 1024x600 AHD LCD Display
Power
12-15V DC
Wi-Fi
Yes, 2.4GHZ
SD Card
Micro SD (Not Supplied) Class 10 up to 32GB
CCTV Input
Maximum 2
Alarm Sensor Input
Maximum 2
Outdoor Unit Input
Maximum 2
Indoor Monitors
Maximum 6
Outdoor Station Features
Ultra narrow 45mm Width fits onto any post, pier or fence
1.3MP AHD Camers
120° Lense
45° Wedge Bracket for best mounting direction
Built in Keypad with common PIN CODE system
Built in IC Tag/Card Reader
Up to 100 Users when using IC Tags (allows for individual User ID's and PIN Codes
Lockout feature after too many incorrect PIN/IC tag uses
Supports Exit Buttons
Supports Fail Secure and Fail Safe Electric Strikers
Supports Automatic Gate Release
45° Angle Wedge
The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing and the guest may be standing to its left or right side.
The wedge is a universal mount allowing for both left facing and right facing setups.
