Product SKU: APC-P1000-SOL-SK

APC Proteous 1000 Solar Gate Opener Super Kit - Italian Made 24V DC Extra Heavy Duty FEATURE RICH Standalone Solar Sliding Gate Automation with Encoder System Automatic Electric Sliding Gate Solar Power Kit

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

MADE IN ITALY
  • APC Proteous 1000 Solar Powered Extra Heavy Duty Sliding Gate Opener Super Kit

APC Proteous 1000 Solar Gate Opener Super Kit - Italian Made 24V DC Extra Heavy Duty FEATURE RICH Standalone Solar Sliding Gate Automation with Encoder System Automatic Electric Sliding Gate Solar Power Kit

Product SKU: APC-P1000-SOL-SK

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,460.00

  • Italian Made Electric Gate Opener, 10000 KG / 10 Metre Maximum Capacity Automatic Sliding Gate

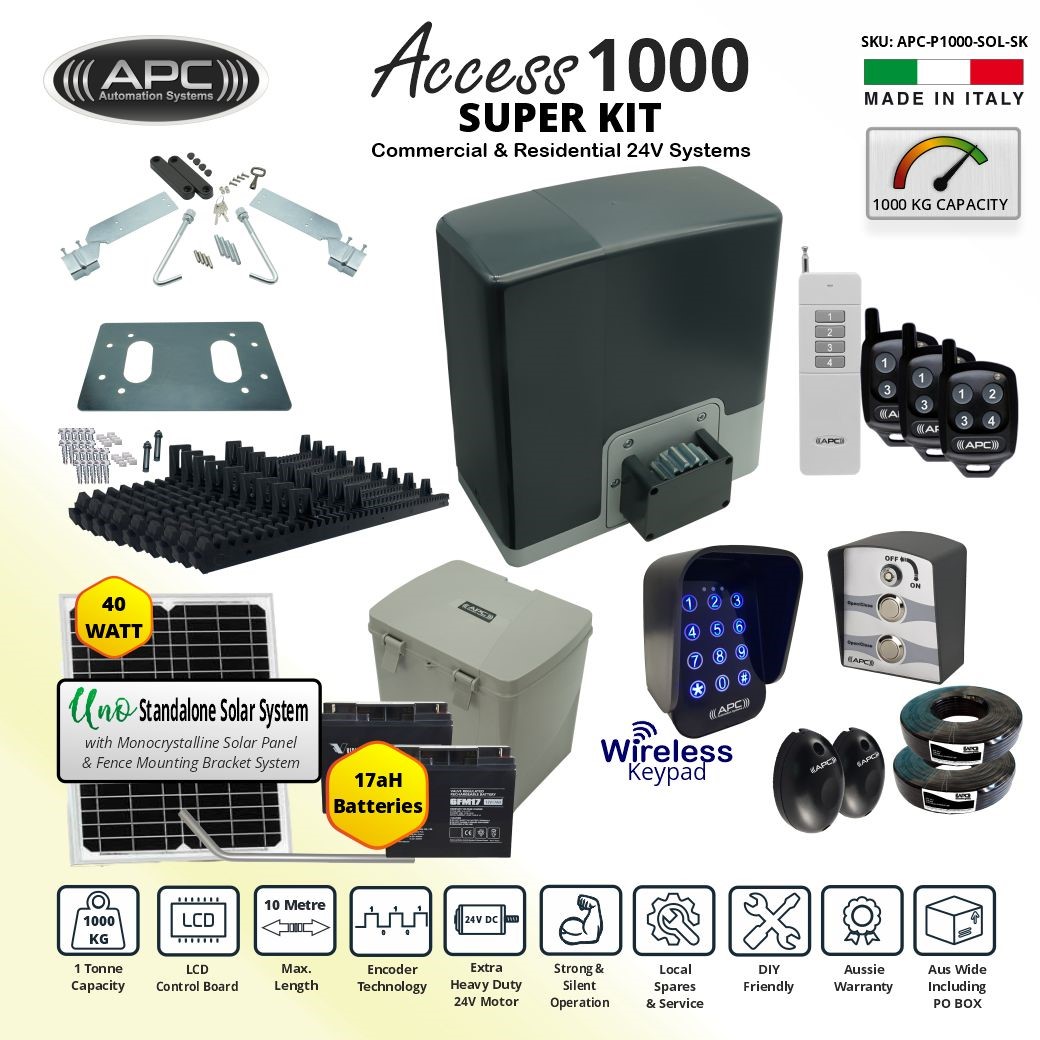

  • Kit Includes

    01 Proteous 1000, Italian Made Strong Sliding Gate Motor (QTY: 1)
    02 APC Four Button Keyring Remote (QTY: 3)
    03 APC Four Button Long Distance Remote (QTY: 1)
    04 APC Two Channel Wireless Keypad (QTY: 1)
    05 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    06 10m 4 Core Non Shielded Cable (QTY: 1)
    07 Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli (QTY: 5)
    08 APC Wired Double Push Button Switch with Key Issolation (QTY: 1)
    09 5m 4 Core Non Shielded Cable (QTY: 1)
    10 24v 40 Watts Solar Panel (QTY: 1)
    11 Solar Panel Post & Bracket for APC 40 Watt Solar Panel (QTY: 1)
    12 APC Uno Multipurpose Battery Box Large (QTY: 1)
    13 APC Sun Power Series 12V/24V 10A PWM Solar Regulator (QTY: 1)
    14 2m 2 Core 2mm Non-Shielded Cable (QTY: 1)
    15 17aH High Capacity Battery (QTY: 2)
    16 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Super Duty Feature Rich 24V Italian Sliding Gate Motor Overview

At a glance

The Proteous 1000 SUPER DUTY system boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.

System Features

Capacity

60% Duty Cycle
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
1000KG Capacity
Ultra long 10 metre gate capacity

Everything and more as standard..

Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Dimensions

Four point Tilt Leveling



24V 40 Watt Solar Panel (Upgradable 60 Watt option)






Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications
Maximuim Power 40W/60W
Optimum Operational Voltage 36V
Open Circuit Voltage 43.2V
40W Panel Dimensions 535 x 515 x 30mm
60W Upgrade Panel Dimensions 805 x 535 x 30mm




APC Uno Large Standalone Solar System





The APC Uno Large is an articulate all-in-one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

  • APC Sun power Regulator Built In
  • Sleek contoured design
  • Cable management entries for a clean installation
  • Subtle grey to suit all installation environments
  • Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
  • Easy to access with the tool free clip lock system
  • Can be secured with a small padlock
  • Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Uno Large Box Dimensions

Extra Heavy Duty Single Gate Opener

24V 17aH Battery System







Supplied with the automation kit the 24V 17aH battery system will allow for continued use of the gate system wether in day or night. The system can operate residential or light commercial use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirments or higher duty there are upgrade options to 33aH battery systems.

Specifications

Transformer 24V (Uno Solar System)
Motor Output Voltage 24v DC
Max Operating Power 550 Watts
Maximum Gate Length 10 Metres
Maximum Gate Weight 1000 KG
Speed 26 cm/s
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Motor Duty Cycle 60%
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity

APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •





APC-KP2W Wireless Keypad Features



  • Low Power Consumption only 18uA in standby.

  • Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.

  • High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.

  • Blue Backlight illumination upon touch with an automatic timeout to return to standby.

  • Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)

  • IP53 Weatherproof rated and suited for outdoor and indoor environments.

  • Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.

  • Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.

  • Two-Channel operation allowing the user to control two different items or functions using separate pin codes.


  •
Channel 1 supports up to 8 Pin Numbers (Full Gate Feature)

Channel 2 supports up to 3 Pin Numbers (Pedestrian Gate Feature)





Wired Double Push Button with Isolation Key





The wired double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.

It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number for either the full gate operation or pedestrian function.



(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.







Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.


Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
