APC 280KG Magnetic Lock with Electromagnetic Power Relay
ML280-Z-12V-RELAYProduct Information
12-24V DC Operating Voltage Magnetic Gate Lock Access Control System - 280KG Weatherproof Electric Gate Lock
280Kg Magnetic Lock with Z Mounting Bracket and 10m Cable Roll
Please note that the magnetic lock is not suitable for solar-powered systems
Specifications
|
Lock Size: |
220Lx42Wx25.5H (mm) |
|
Armature plate: |
180Lx40Wx11H (mm) |
|
Holding Force: |
280kg (600Lbs) |
|
Voltage: |
12/24VDC+10% |
|
Current Draw: |
12V/500mA 24V/250mA |
|
Suitable for: |
Outdoor use on gates, outdoor and indoor doors |
|
Operating Temp: |
-10º+55º(14-131F) |
|
Suitable Humidity: |
0~90% |
|
Finishing of Magnetic lock: |
Zinc |
|
Finishing of the Armature: |
Zinc |
|
Weight:
|
2.1kg
|
Example of Magnetic lock with OPTIONAL Z Bracket

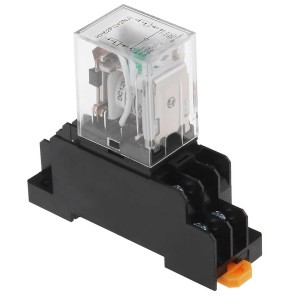

Electromagnetic Power Relay | DC 12V Power Relay with LED Indicator Light
Power Relay | DC 12V LED Indicator Light Electromagnetic Power Relay
Item Specifications
Contact type: DPDT (2NO 2NC)
Coil current: 10A
Coil voltage: 12V
Material: plastic, metal
Pin: 8 pin
