Product SKU: B-AL40-BE20-6M
Out Of Stock
Freight Delivery
Kit Price:
$6,149.00
The designs bring a contemporary twist to the traditional style, making them suitable for all properties. These aluminium gates have a hard-wearing, powder-coated finish. As standard, the gates are supplied with 4 x wall-mounted hinges, 2 x ground-mounted hinges, and 2 x aluminium gate posts (150mm x 150mm x 3.5mm | 2000 mm High), which have been designed to match and easily install the aluminium double-swing driveway gates.
Aluminium bolt-down gate support posts with adjustable hinges are included. They are designed to be easily installed and accommodate the majority of driveway entrances.

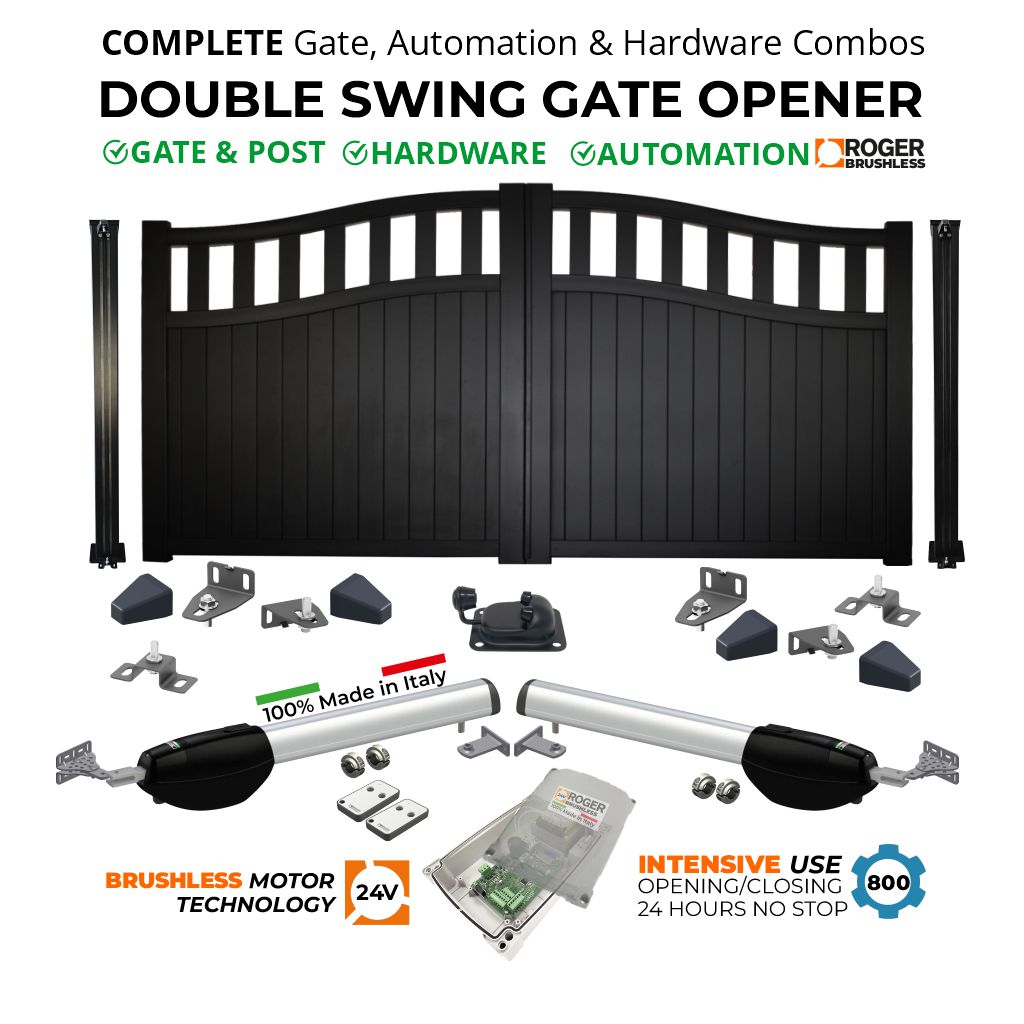

Double Swing Driveway Gate All-In Kit Content
Contemporary aluminium driveway gates are designed to balance style and security perfectly. This beautiful curved arch-top driveway gate has a vertical mixed infill that provides a traditional, unique style with a contemporary twist while allowing more visibility at the top section of the gate.
Aluminium gates are lightweight but very strong, requiring little maintenance. This makes them ideal for creating stunning driveway gates.
Aluminium is highly resistant to corrosion and will not suffer from changing weather conditions.
No special treatment is required; wash down to keep the gate looking brand new.

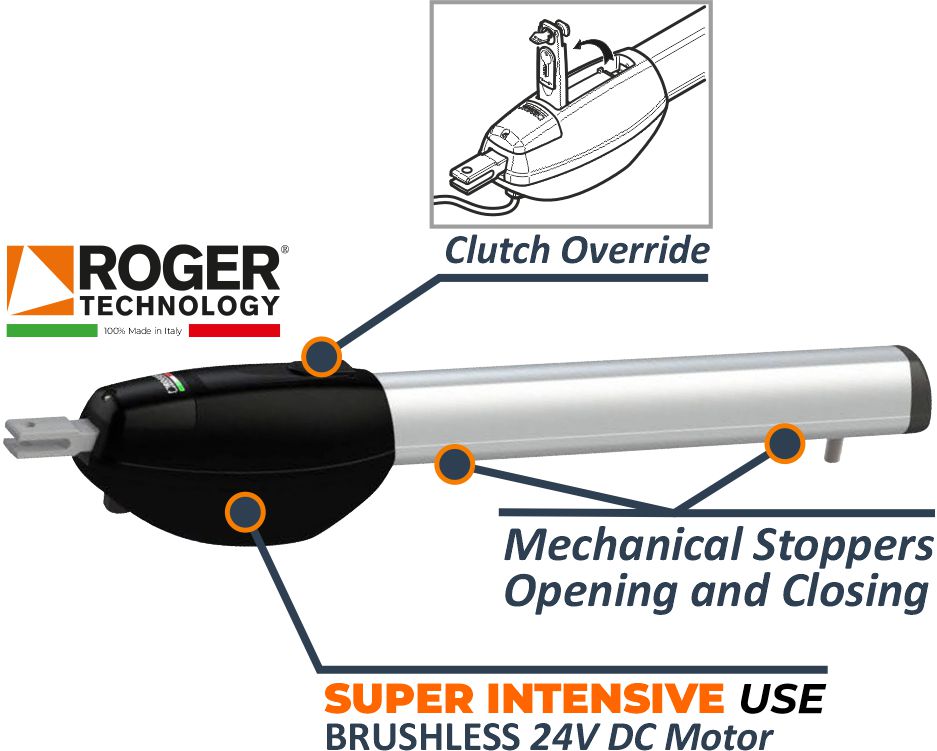

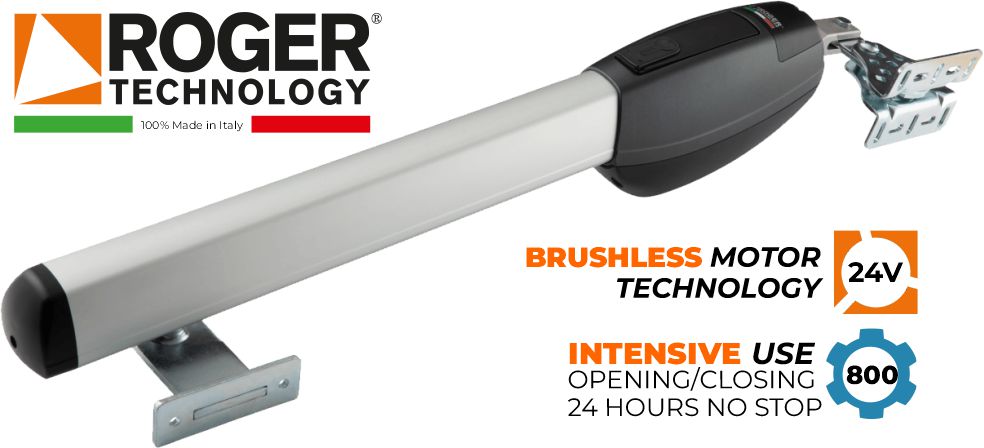

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 3M or 300KG Each Leaf | Super Intensive Use |
100% Duty Cycle Brushless Gate Motor with Mechanical Stoppers Opening and Closing
Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 3m or 300kg.

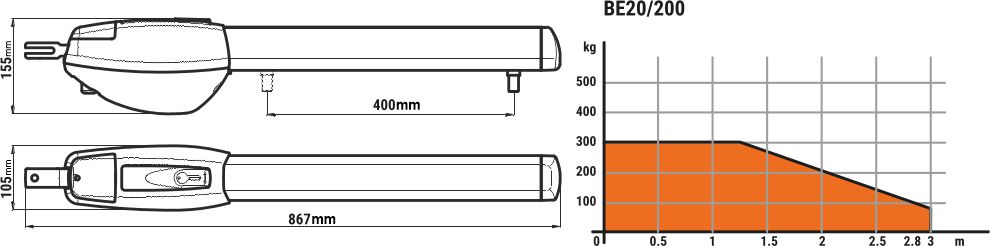

All measurements are expressed in mm.

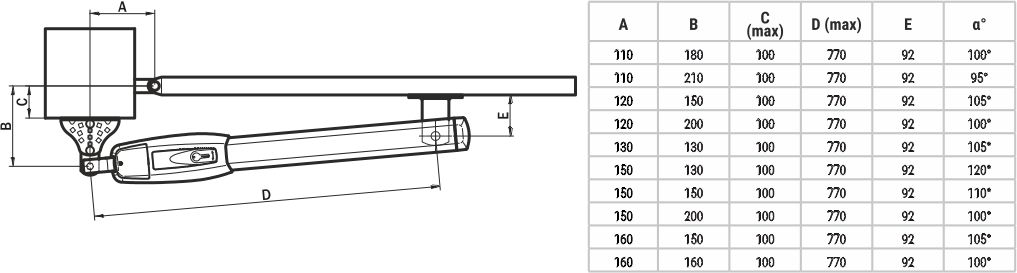

All measurements are expressed in mm.
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 24V |
| Power rating: | 200W |
| Frequency of use: | Intensive use |
| Thrust: | 2200N |
| Operating temperature: | -20 C° +55 C° |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 1,66 cm/s |
| Opening time: | 15-25 s |
| Stroke: | 400 mm |
| Limit switch: | Mechanical stopper in opening and closing |
| Encoder: | Digital native encoder SENSORLESS 48 PPR |
| Operating cycles per day (opening/closing - 24 hours, no stop): | 800 |
| Maximum dimension product in mm (L x W x H): | 867 x 105 x 155 |
The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |
The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
| Power line supply: | 230V AC - 50 Hz |
| Operating temperature: | -10+55 C° |
| Protection level: | IP54 |
| N. motors activated: | 2 Brushless motor |
| Max power per motor: | 110W |
| Max courtesy light charge: | 100W 230V AC - 40W 24V AC/DC |
| Max power gate open light: | 3W (24V DC) |
| Max voltage accessories output: | 10W (24V DC) |
| Electrical-Lock max power: | 15W (12V DC) |
| Flashlight voltage: | 24V DC |
| Max flashing light charge: | 25W |
| Battery: | Optional |
| Maximum dimension product in mm (L x W x H): | 330 x 230 x 115 |
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
| Standard power: | 3V DC |
| Absorption: | 12mA |
| Operating temperature: | -10+55 °C |
| The number of channels: | 2 |
| Codification: | Fix code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92MHz |
| The number of combinations: | 65536 |
| Radio for a copy: | Yes |
| The maximum distance in the open field: | 150m |
| Battery: | Mod "CR2032" 3V |
| Maximum dimension product in mm (L x W x H): |
38 x 68 x 11 |
