Product SKU: SGK-R98-80

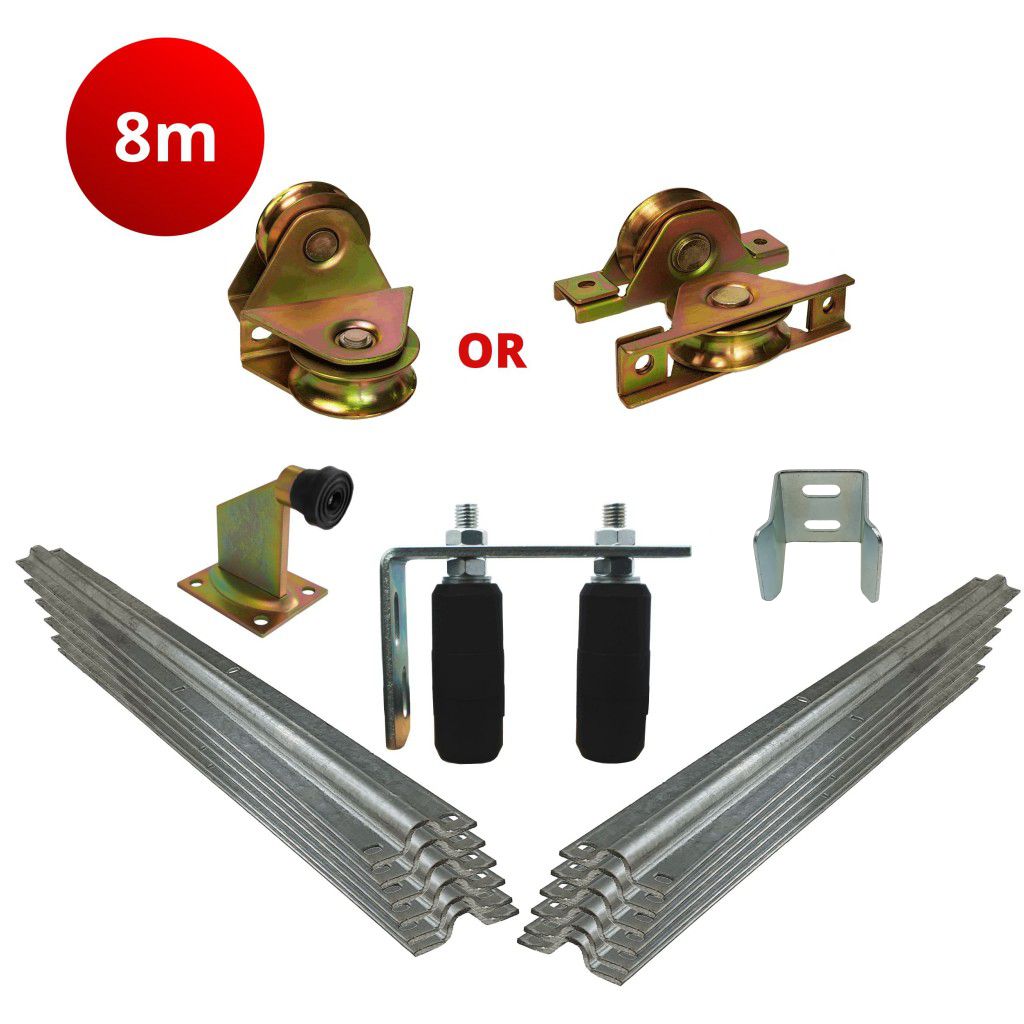

8m Complete Standard Sliding Gate Hardware Kit

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

STANDARD GATES

8m Complete Standard Sliding Gate Hardware Kit

Product SKU: SGK-R98-80

  • In Stock

Get More Info..

Kit Price:

$385.00

  • Or in 4 payment of $96.25 with afterpay info

  • Wheels, Track, Upper Roller System, U Guide and Gate Stop

  • Kit Includes

    01 Singular 98mm Recess Mount Wheels (QTY: 2)
    02 1m Galvanized Sliding Gate Track (Required Double the Width of Gate) (QTY: 16)
    03 100mm Roller (QTY: 2)
    04 165x110mm Galvanized Bracket (QTY: 1)
    05 55mm Galvanized U Guide Gate Receiver Catcher (QTY: 1)
    06 115mm High Bolt Down Anodized Gate Stop (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

98mm Recess Wheels for Sliding Gate | Anodised Steel




  • R10 profile to suit the entire range of APC Galvanized profile tracks

  • Dual bearing system for the capacity of 300KG per wheel (600kg per pair)

  • It fits into 75mm height tubing with a cutout size to fit the wheel of 100x35mm

  • Raises the gate by 40mm when installed with the floor track

  • Easy installation with pre-punched fixings, drops into place after cutting out and screws to the tubing from the flanged sides.



78mm Flat Mount Wheels | Anodised Steel

  • R10 profile to suit the entire range of APC Galvanized profile tracks

  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)

  • It fits straight to the bottom. No cut-out is required.

  • Raises the gate by 92mm when installed with the floor track

  • Easy installation with pre-punched fixings and screws to the tubing from each side.

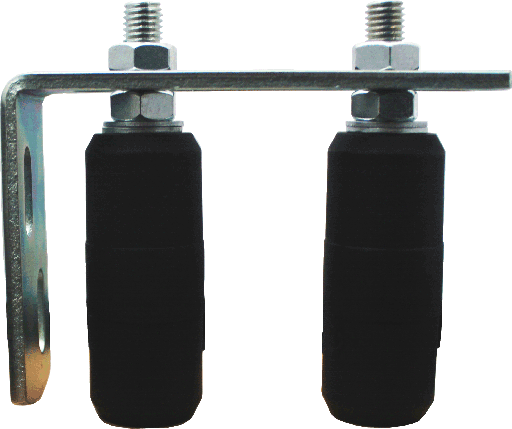

100mm Roller and Bracket Set




  • 165mm Long Galvanized steel construction for long life outdoor use

  • 100mm nylon rollers with completly adjustable positions

  • 75mm internal clearance between rollers at full span, allowing for 25mm ajustment for the gate a gate thickness not exceeding 50mm is ideal (see 200mm long bracket to allow 85mm gate thickness)

  • Pre-punched fixing holes ideal for adjustments prior to final fixing



Bolt Down Galvanized Floor Track






  • R10 profile to suit the entire range of APC recess and flat mount wheels

  • Rounded profile provides the least resistance for sliding gate movment over the alternative "V groove"

  • High strength 3mm steel, Galvanized for complete long life outdoor use

  • Pre-punched fixing holes ready for anchor nails (Supplied)

  • Easy to install, bolts down to concrete! No need to set in during concreting


    •



55mm U Guide





  • Galvanized steel construction for long life outdoor use

  • Flared entry to guide gate into the reciever in case of wind loads pushing the gate

  • 55mm internal clearance ideal for standard steel or aluminum gates without cladding

  • Pre-punched fixing holes ideal for adjustments prior to final fixing

Anodized Gate Stop






  • Anodized steel construction for long life outdoor use

  • 115mm Height

  • 40mm Rubber bumper

  • Solid 100x80mm base

  • Pre-punched 10mm fixing holes


    •



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1

        • Your (Kit and Add-On) Price:

          $385.00
