Product SKU: A-BusV7SD-BK-298KP-FE

7 Inch Gloss Black Monitor with 170 Degree Surface Mount Stainless Steel Keypad Outdoor Station

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$476.00 $680.00

  • Sleek GUI, Photo Memory, Easy Installation 2 Wire System, Non Polarity System

  • Kit Includes

    01 7 Inch SD Series Add On Monitor(QTY: 1)
    02 Stainless Steel 170 Degree Surface Mount Keypad Outdoor Station(QTY: 1)
    03 Combo Power Supply and Seperator for Eyevision 2 Wire Intercoms(QTY: 1)
    04 20m Cable, Twisted pair 1mm thick for use with the Eyevision 2 wire systems(QTY: 1)
  • Add-On Items
  • Product Information

Add-On Items (Discounted when purchased along with this Kit)

Product Information

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Highly expandable system with photo recording

This Eyevision® 2 wire 7" touch screen true colour digital video intercom system is feature packed and extremely user friendly allowing the user to see who is at the gate, speak to the visitor and unlock the connected gate or door. This digital system takes 1, 4 or 8 snap shot pictures everytime the doorbell is pressed for added security. The 170° wide fish eye camera door station in this package allows the user to see a full 170° view when the doorbell is first pressed then the camera will zoom in to the middle third of the screen allowing the user to see a closer image then will continue to zoom out to show full view again. This zoom in-zoom out feauture is an automatic process which occurs when the doorbell is pressed and it is repeated multiple times. This digital system is also very highly expandable allowing up to four monitors, four door stations and six CCTV cameras to be connected to the system. Please see further in the ad for more details on all the functions.

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Touch Screen
Highly responsive 7" Colour TFT LCD touch screen operation with an easy to use interface. Modern & Sleek Design allowing the user to access all features with a simple touch.



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Picture Recording
This system has built-in memory to store aprox 800 photos and has both the ability to set the photo taking to multi shot (4/8 photos) or single shot.

A-Bus Eyevision® 2 Wire Digital Video Intercom System

SD Card
The SD card input allows for expandability of the photo memory aswell as transfering photos to a PC. Furthermore, user can upload family photos onto the SD card and use the monitor as a digital photo frame.



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Intercom Between Monitors
Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitor, once another monitor answers then their will be a hands free communication between the two monitors.



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Door Release Operation for Door Strikers & Gate Automation
When the outdoor staton is pressed all installed monitors will ring allowing for handsfree communication and unlocking of a connected gate or door. Every connected door station has the ability to unlock a connected gate or door.

Second Release: The use of an RLC second lock release module (found under 2 wire system accessories) will enable two unlock releases from one connected door station allowing the user to unlock two doors or gates or one of each all from the one monitor. Each gate or door connected through the use of an RLC will have its own unlock function on the monitor so that each lock can be released individually. Multiple door stations can also be connected to the system with the use of a distributor, please see "additional door station connection" below. Please note: The second lock release module is only required when using the 298KP-FE/298FKP-FE/298F door stations. When using the 291/299/297 door stations this module is not required as they have two lock releases built in.



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Adjustable Night Ring Volume
This system has the option of adjusting the volume. There is a flexible option of setting the volume from mute and up to 10, making it convenient for night time.



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Addtional Monitors & Audio Handsets
Additional Monitors & Audio handsets can also be connected to the system allowing video & audio communication and unlocking from desired locations around the home. In order to connect further monitors/handsets to this system, a monitor distributor is highly recommended. This component can be found under 2 wire system accessories. A maximum of four indoor units can be connected to the system, this can be a mixture of both monitors and audio handsets.



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Additional Door Station Connection
Up to 4 door stations can be connected to the system for multiple entry points. In order to connect further door stations to this system, a door station distributor is a MUST. This component can be found under 2 wire system accessories. A maximum of four door stations can be connected to the system.

Please note: The quantity of door stations that can be used with the system will be dependant on the quantity of CCTV Camera's used. Please see the table below for an indication on capacity.

A-Bus Eyevision® 2 Wire Digital Video Intercom System

CCTV Connection using DCU Expander
With the use of a DCU expander, the user can connect up to six CCTV Camera's to the system. Each DCU expander can support the connection of two CCTV cameras. This DCU Expander can be found under 2 Wire Accessories.

Please note: The quantity of CCTV camera's that can be used with the system will be dependant on the quantity of door stations used. Please see the table below for an indication on capacity.

A-Bus Eyevision® 2 Wire Digital Video Intercom System

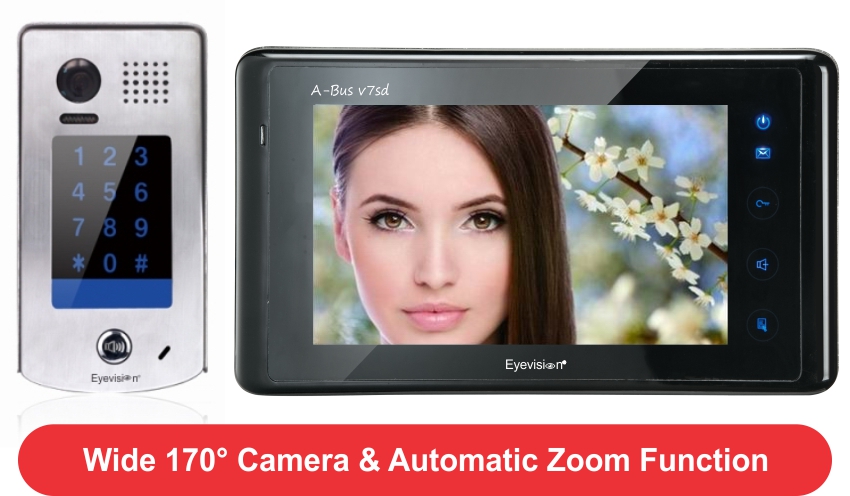

Automatic Zoom Function when Connected to the 170° Fish Eye Door Station
The door station supplied in this package is a 170° wide angle fish eye door station. When this door station is coupled with this
A-BusV7SD monitor the user is able to see a full 170° view when the doorbell is first pressed then the camera will zoom in to the middle third of the screen allowing the user to see a closer image then will continue to zoom out to show full view again. This zoom in-zoom out is an automatic process which occurs when the doorbell is pressed and is repeated multiple times.

Easy to use Graphic User Interface

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Monitor Specifications:

Power Supply

24V DC Supplied by system power supply

Power Consumption

Standby 15mA, Working 400mA

Screen size

7" Colour TFT LCD

Picture Memory

800 pictures on internal memory and 30000 pictures on a 2 GB SD card

Resolution

800*3(RGB)*480 pixels

Monitor Dimension

125(H) x 225(W) x 23(Thick)

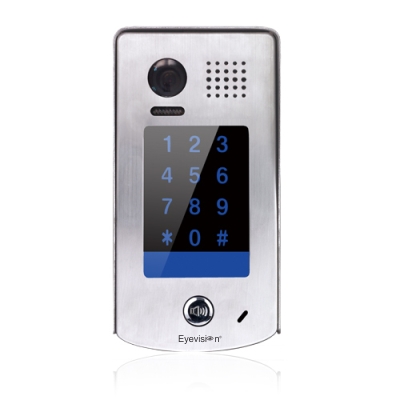

Keypad Door Station

Touch sensitive digital keypad door station with built-in wide 170° camera, stunning modern appearance, surface mount, slim design weatherproof, stainless steel face plate and 2 channel operation (second lock via add on relay).
Please note, the add on relay component required to operate the second lock output can be found in the 2 wire accessories.

This EV-D298KP-FE has a very wide 170° Fish Eye Camera. When coupled with the A-BusV7SD monitor in this package, this wide camera angle door station will display the full 170° view only and cannot pan-tilt-zoom however it will automatically zoom in and out when the doorbell is pressed (please see above).
Please note: If this door station is coupled with the A-BusV10R monitor the user will be able to utilise the full features of the Pan-tilt-zoom function. This function allows the user to navigate up, down, left or right aswell as zoom in, in order to move to the desired position on the monitor.

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Features:

* Camera: CMOS 2.0 Mega Pixel
* Camera Angle: 170º Fish Eye Wide Angle
* Touch sensitive digital touch keypad
* Easy to see and use big numbers
* Multi user (up to 40 codes)
* 2 Channels output (second lock via add on component EV-RLC-S which can be found under 2 wire accessories)
* Supports an exit button connection or RF receiver/transmitter
* Operation acknowledgment Red & Blue LED indicator & buzzer
* Weatherproof IP55
* Blue back light for keypad
* Surface mount, supplied with a rain cover
* Stainless steel face plate
* Pan-Tilt-Zoom when coupled with A-BusV10R monitor
* Automatic Zoom when couple with A-BusV7SD monitor
* Name plate display with back light Specifications:
Electric striker power output: 300mA from the door station
Number of relays: 2 (second using an add on RLC)
Number of channels: 2
Number of users: 40
Working temperature: -10ºC ~ 45ºC
Power·Consumption: 2 W in standby, 8 W in working

Door station size:
180mm Long
90mm Wide

Rain Cover:
185mm Long
95mm Wide
45mm Deep (top) 30mm (bottom)

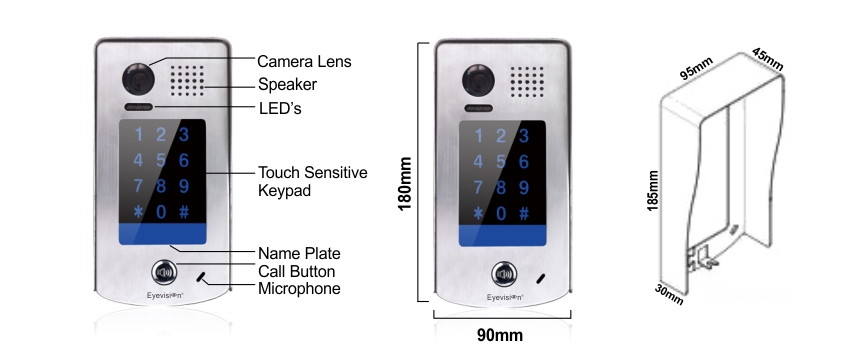

Door Station Dimensions

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Wiring Examples

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Wiring Example of 4 Monitor Connection

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Wiring Example of DCU Expander

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Wiring Example of Second unlocking output using RLC

Wiring example 1: The first lock output is connected to a striker and for the second lock output the RLC is connected to an automatic gate opener.

Wiring example 2: The first lock output is connected to a striker and for the second lock output the RLC is connected to another striker.

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Door Stations & CCTV Camera Capacity

Qty of Door Stations

Qty CCTV Camera's

Qty of DCU Expanders Required

1

6

3

2

4

2

3

2

1

4

0

0

Cable Requirements

A-Bus Eyevision® 2 Wire Digital Video Intercom System

CAT5 up to 80m between the door station and each apartment.
Straight Pair 1mm2 up to 50m between the door station and each apartment.
Twisted Pair 1mm2 up to 120m between the door station and each apartment.
Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.

Recommendation: The Eyevision® 2 wire monitors are very powerful and will deliver high quality video and audio, it is recommended to use the best quality cables that will suit your installation, use cables with very good quality copper conductor in order to maximize the clarity of the system.
This is why we provide a free high quality 20m twisted pair with every monitor, using this cable will guarantee the best optimized results in video and audio transmission for up to 200m.
Larger sizes of this twisted pair cables manufactured for this system are available at very competitive prices, please click here
Note: Due to different qualities of cables the above non-eyevision cable distances are an average guidline only.

Package Contents

- 1 x Black 7" Digital Monitor
- 1 x Fish Eye 170° Wide Angled Weatherproof keypad door station with touch sensitive buttons
- 1 x Weatherproof Rain Cover for keypad door station
- 1 x Combo Power Supply
- 1 x 20m twisted pair eyevision® cable
- 1 x User Manual
