7 Inch Black Monitor with 170 Degree Surface Mount Stainless Steel Keypad Outdoor Station

Product SKU: i-TouchV7L-BK-298KP

  • Out Of Stock

Get More Info.. Get More Info..

Kit Price:

$550.00

  • Or in 4 payment of $137.50 with afterpay info
  • Simple Line by Line GUI, Easy Installation 2 Wire System, Non Polarity System

  • Kit Includes

    01 7 Inch L Series Add On Monitor(QTY: 1)
    02 Stainless Steel 170 Degree Surface Mount Keypad Outdoor Station(QTY: 1)
    03 Combo Power Supply and Seperator for Eyevision 2 Wire Intercoms(QTY: 1)
    04 20m Cable, Twisted pair 1mm thick for use with the Eyevision 2 wire systems(QTY: 1)
  • Out Of Stock

Add-On Items (Discounted when purchased along with this Kit)

Product Information

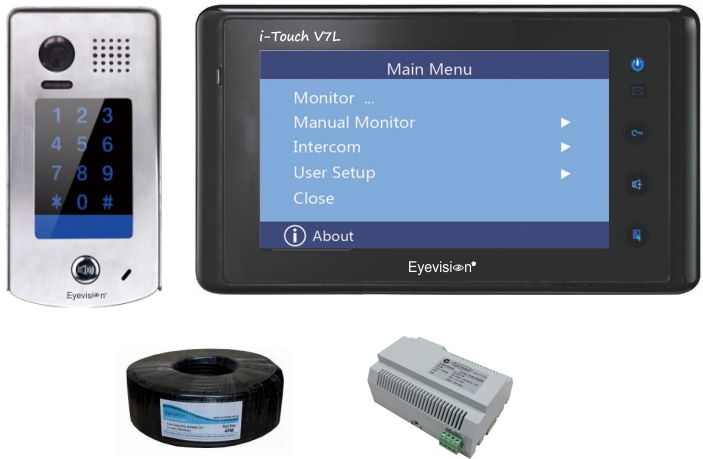

Complete Video Intercom System including 7" Touch Screen Monitor, Camera Door Station, Combo Power Supply, 20m Cable

This easy to use 2 Wire Video Intercom System package comprises of an Eyevision® touch screen monitor, an Eyevision® 170° camera angle fish eye door station, a combo power supply and 20m of cable.
This intercom system can be used for video monitoring of the front entrance aswell as for audio communication between the visitor and the owner of the house.

2 Wires Video Intercom System with Camera Door Station

Monitor's Features

















2 Wires Video Intercom System with Camera Door Station

2 Wire Technology
The Eyevision® 2 wire systems are very powerful and highly expandable. They will deliver high quality video and audio functions as well as a sleek graphic user interface.
The 2 wire technology is a non polarity easy 2 wire connection.

2 Wires Video Intercom System with Camera Door Station

Night Ring Volume
This system has the option of adjusting the volume. There is a flexible option of setting the volume from mute and up to 10, making it convenient for night time.

2 Wires Video Intercom System with Camera Door Station

Internal Intercom
Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitors, once another monitor answers then their will be a hands free communication between the 2 monitors.

2 Wires Video Intercom System with Camera Door Station

Ringtones
This system has 12 Door bell melodies to choose from.

2 Wires Video Intercom System with Camera Door Station

Touch screen
7" Colour TFT LCD touch screen operation with easy to use menus.

2 Wires Video Intercom System with Camera Door Station

Additional Audio Handset Connection
Additional Audio handsets can also be connected to the system, allowing audio communication and unlocking from desired locations around the house.

2 Wires Video Intercom System with Camera Door Station

Monitor Desk Top Stand
The monitor desk top stand is handy for study's, work areas and other desk or benchtop applications. It is availble in gloss black and gloss white and can be purchased from the 2 wire accessories section.

2 Wires Video Intercom System with Camera Door Station

Additional Monitors Connection
Additional monitors can be connected to the system, allowing full communication throughout all the connected monitors via the use of EV-DBC4A-M which can be found under 2 Wire Accessories.

Additional Monitor Features:

- Ultra thin with total depth of 23mm.
- True colour 7" Digital TFT screen.
- Touch screen operation with easy to use menus.
- Touch sensor buttons for quick access.
- OSD Graphic menu display.
- Multi monitors connections with the use of EV-DBC4A-M distributors (max 5 monitors)



Monitor's Specifications

Power Supply

24V DC Supplied by system power supply

Power Consumption

Standby 15mA, Working 400mA

Screen size

7" Digital Colour LCD

Resolution

800*3(RGB)*480 pixels

Wiring

2 Wires, non-polarity

Monitor Dimension

125(H) x 225(W) x 28(Thick)

i-touch V7L Touch Screen Menu Interface





2 Wires Video Intercom System with Camera Door Station

2 Wires Video Intercom System with Camera Door Station

2 Wires Video Intercom System with Camera Door Station


Main Menu:
The Main Menu is the starting point, displaying the available funcitons.
Pressing "Monitor" will display the view of the outside.


Monitor Select:
If multiple door stations are installed, pressing "Manual Monitor" will allow the user to choose from all the installed door stations/cameras.


Intercom Function:
The intercom function allows for all installed monitors to be able to communicate with one another via intercom calling.

2 Wires Video Intercom System with Camera Door Station

2 Wires Video Intercom System with Camera Door Station

2 Wires Video Intercom System with Camera Door Station


User Setup:
The user set-up function allows the user to set up the call tone for the door station, call tone for the intercom, doorbell tone, the date and time, the ringing volume, the night ring volume, and more.


Date and Time Settings:
The date and time on the unit can be adjusted through the user set up.









Eyevision® 2 Wire Wide 170° Camera Angle Fish Eye Door Station

Touch sensitive digital keypad door station with built-in 170° Wide Angle Fish Eye Camera, stunning modern appearance, surface mount, slim design, weatherproof, stainless steel face plate and 2 channel operation (second lock via add on relay).

Please note, the add on relay component required to operate the second lock output can be found in the 2 wire accessories.

When coupled with the Eyevision® 2 Wire A-BusV7SD monitor, this wide camera angle door station will display the full 170° view only and cannot pan-tilt-zoom however it will automatically zoom in and out when the doorbell is pressed.

When this door station is coupled with the Eyevision® 2 Wire A-BusV10R monitor the user will be able to utilise the full features of the Pan-tilt-zoom function. This function allows the user to navigate up, down, left or right aswell as zoom in, in order to move to the desired position on the monitor.

2 Wires Video Intercom System with Camera Door Station

Features:

* Camera: CMOS 2.0 Mega Pixel
* Camera view: 170º Fish Eye Wide Angle
* Touch sensitive digital touch keypad
* Easy to see and use big numbers
* Multi user (up to 40 codes)
* 2 Channels output (second lock via add on component EV-RLC-S which can be found under 2 wire accessories)
* Supports an exit button connection or RF receiver/transmitter
* Operation acknowledgment Red & Blue LED indicator & buzzer
* Weatherproof IP55
* Blue back light for keypad
* Surface mount, supplied with a rain cover
* Stainless steel face plate
* Pan-Tilt-Zoom when coupled with A-BusV10R monitor
* Automatic Zoom when coupled with A-BusV7SD monitor
* Name plate display with back light Specifications:
Electric striker power output: 300mA from the door station
Number of relays: 2 (second using an add on RLC)
Number of channels: 2
Number of users: 40
Working temperature: -10ºC ~ 45ºC
Power·Consumption: 2 W in standby, 8 W in working

Door station size:
180mm Long
90mm Wide

Rain Cover:
185mm Long
95mm Wide
45mm Deep (top) 30mm (bottom)

Door Station Dimensions

2 Wires Video Intercom System with Camera Door Station

Combo Power Supply

The EV-PS-C6 is a combo power supply and power seperator for the Eyevision® 2 wire systems. It has a simple Phoneix connection for the BUS line for the Door station(s) and monitor(s).

Key Features:

- Australian Standards
- 27V 1.5A Power Source
- Din Rail Mounting (Supplied)
- Pre Wired with Australian Standard Power Plug

Compatibility:

All Eyevision® 2 Wire Home Systems

2 Wires Video Intercom System with Camera Door Station



Cable Requirements

2 Wires Video Intercom System with Camera Door Station

CAT5 up to 80m between the door station and each apartment.
Straight Pair 1mm2 up to 50m between the door station and each apartment.
Twisted Pair 1mm2 up to 120m between the door station and each apartment.
Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.

Recommendation: The Eyevision 2 wire monitors are a very powerful monitor and will deliver high quality video and audio, it is recommended to use the best quality cables that will suit your installation, use cables with very good quality copper conductor in order to maximize the clarity of the i-Touch V7.
If you are not committed to cable such as CAT5 or Straight Pair, then it is highly recommended to use a Twisted pair between 1mm2 or 1.5mm2, using this cable will guarantee the best optimized results in video and audio transmission for up to 200m.
Twisted pair cables manufactured for this system are available at very competitive prices, please click here


Package Contents:

1 x i-touchV7L 7" Colour TFT LCD Touch Screen Monitor
1 x EV-298KP-FE Eyevision® 2 Wire Wide 170° Camera Angle Fish Eye Door Station
1 x EV-PS-C6 Combo Power Supply
1 x 20m of 2 Core Twisted Pair Cable


Your Customised Kit Includes:

No Changes.
