Product SKU: A-BusV7SD-BK-D301

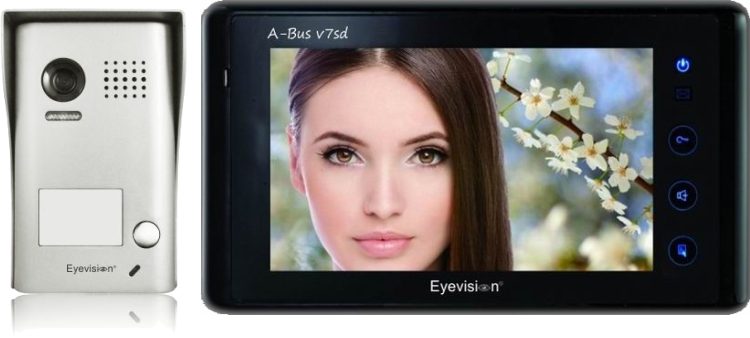

7 Inch Black Monitor with 105 Degree Cast Alloy Surface Mount Outdoor Station

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$435.00 $600.00

  • Sleek GUI, Photo Memory, Easy Installation 2 Wire System, Non Polarity System

  • Kit Includes

    01 7 Inch SD Series Add On Monitor(QTY: 1)
    02 Zinc Alloy 105 Degree Surface Mount Outdoor Station(QTY: 1)
    03 Combo Power Supply and Seperator for Eyevision 2 Wire Intercoms(QTY: 1)
    04 20m Cable, Twisted pair 1mm thick for use with the Eyevision 2 wire systems(QTY: 1)
  • Add-On Items
  • Product Information

Add-On Items (Discounted when purchased along with this Kit)

Product Information

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision 2 Wire Digital Video Intercom System

Package Contents:

- 1 x A-Bus 7" Monitor
- 1 x Door station
- 1 x Combo Power Supply
- 1 x 20m Twisted pair cable

Monitor Features:



A-Bus Eyevision 2 Wire Digital Video Intercom System

2 Wire Technology
The Eyevision® 2 wire systems are very powerful and highly expandable. They will deliver high quality video and audio functions as well as a sleek graphic user interface.
The 2 wire technology is a non polarity easy 2 wire connection.

A-Bus Eyevision 2 Wire Digital Video Intercom System

Night Ring Volume
This system has the option of adjusting the volume. There is a flexible option of setting the volume from mute and up to 10, making it convenient for night time.

A-Bus Eyevision 2 Wire Digital Video Intercom System

Internal Intercom
Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitors, once another monitor answers then their will be a hands free communication between the 2 monitors.

A-Bus Eyevision 2 Wire Digital Video Intercom System

Multi-Shot Photographic Function
This system has built-in memory to store aprox 800 photos and has both the ability to set the photo taking to multi shot (4/8 photos) or single shot.

A-Bus Eyevision 2 Wire Digital Video Intercom System

Ringtones
This system has 12 Door bell melodies to choose from.

A-Bus Eyevision 2 Wire Digital Video Intercom System

SD Card
The SD card input allows for expandability of the photo memory aswell as transfering photos to a PC. Furthermore, the SD card is also used for the digital photo frame feature.

A-Bus Eyevision 2 Wire Digital Video Intercom System

Touch screen
7" Colour TFT LCD touch screen operation with easy to use menus.

A-Bus Eyevision 2 Wire Digital Video Intercom System

Additional Audio Handset Connection
Additional Audio handsets can also be connected to the system, allowing audio communication and unlocking from desired locations around the house.

A-Bus Eyevision 2 Wire Digital Video Intercom System

Monitor Desk Top Stand
The monitor desk top stand is handy for study's, work areas and other desk or benchtop applications. It is availble in gloss black and gloss white and can be purchased from the 2 wire accessories section.

A-Bus Eyevision 2 Wire Digital Video Intercom System

CCTV Connection
CCTV Camera's can be connected to the system for added security.

A-Bus Eyevision 2 Wire Digital Video Intercom System

Additional Door Station Connection
Up to 4 door stations can be connected to the system for multiple entry points.

A-Bus Eyevision 2 Wire Digital Video Intercom System

Additional Monitors Connection
Additional monitors can be connected to the system, allowing full communication throughout all the connected monitors.





Additional Monitor Features:

- Ultra thin with total depth of 23mm.
- True colour 7" Digital TFT screen.
- Touch screen operation with easy to use menus.
- Touch sensor buttons for quick access.
- OSD Graphic menu display.
- Multi monitors connections with a choice of 2 connection methods as follows, (or see the connection examples below),
1. Monitors looping (in-out) (max 3 monitors).
2. DBC-4 distributors (max 5 monitors).



Monitor Specifications:

Power Supply

24V DC Supplied by system power supply

Power Consumption

Standby 15mA, Working 400mA

Screen size

7" Colour TFT LCD

Resolution

800*3(RGB)*480 pixels

Built-in Memory

120MB

Picture Memory

800 pictures on internal memory and 30000 pictures on a 2 GB SD card

Monitor Dimension

125(H) x 225(W) x 23(Thick)

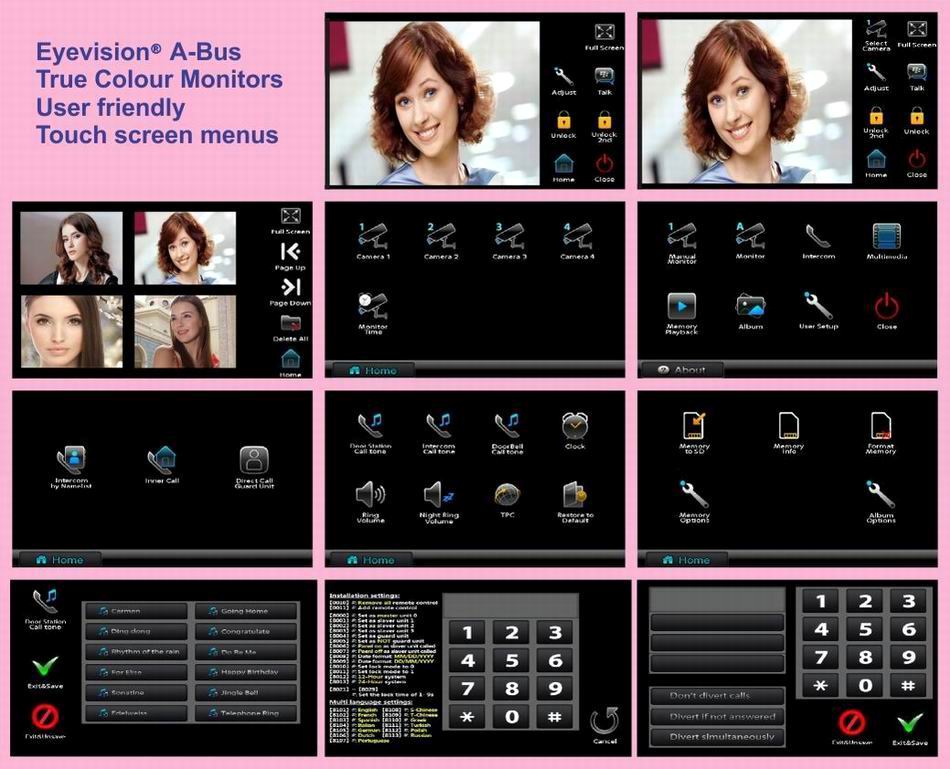

Example of the Eyevision® A-Bus user friendly A-BusV7sd Graphical Touch Screen Menu

A-Bus Eyevision 2 Wire Digital Video Intercom System

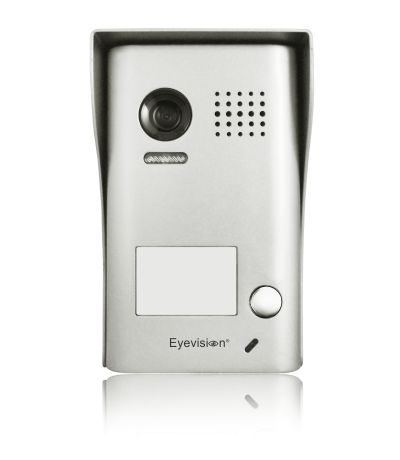

Weatherproof Surface Mount Door Station

Stunning modern appearance, slim design, weatherproof, high quality alloy door station with a bonus rain cover.

A-Bus Eyevision 2 Wire Digital Video Intercom System

Features:

* Camera View: 105º Camera Angle
* Camera: CMOS 480TVL
* 2 Channels Output (second lock via add on component EV-RLC-S which can be found under 2 wire accessories)
* Supports an exit button connection or RF receiver/transmitter
* Weatherproof IP55
* Surface Mount, supplied with a Rain Cover
* Name plate display with back light

Door Station Dimensions

A-Bus Eyevision 2 Wire Digital Video Intercom System

Wiring Examples

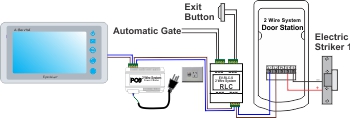

Wiring example 1: The first lock output is connected to a striker and for the second lock output the RLC is connected to an automatic gate opener.

Wiring example 2: The first lock output is connected to a striker and for the second lock output the RLC is connected to another striker.

A-Bus Eyevision 2 Wire Digital Video Intercom System

A-Bus Eyevision 2 Wire Digital Video Intercom System

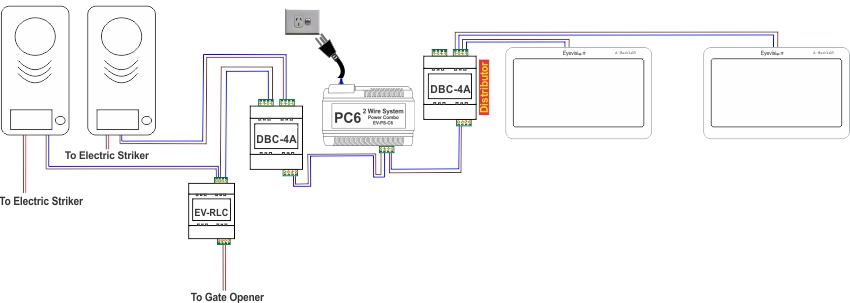

Wiring Example of Two Monitors & Two Door Stations

A-Bus Eyevision 2 Wire Digital Video Intercom System

Cable Requirements

A-Bus Eyevision 2 Wire Digital Video Intercom System

  • CAT5 up to 80m between the door station and each apartment.
  • Straight Pair 1mm2 up to 50m between the door station and each apartment.
  • Twisted Pair 1mm2 up to 120m between the door station and each apartment.
  • Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.
  • Recommendation: The Eyevision® 2 wire monitors are very powerful and will deliver high quality video and audio, it is recommended to use the best quality cables that will suit your installation, use cables with very good quality copper conductor in order to maximize the clarity of the system.
  • This is why we provide a free high quality 20m twisted pair with every monitor, using this cable will guarantee the best optimized results in video and audio transmission for up to 200m.
  • Larger sizes of this twisted pair cables manufactured for this system are available at very competitive prices, please click here
  • Note: Due to different qualities of cables the above non-eyevision cable distances are an average guidline only.

Package Contents

- 1 x Black 7 " Digital Monitor
- 1 x Surface Mounted alloy door station
- 1 x Weatherproof Rain Cover for door station
- 1 x Combo Power Supply
- 1 x 20m twisted pair eyevision® cable
- 1 x User Manual

Your Customised Kit Includes:

No Changes.
