Product SKU: APC-T500-RT1000-5M
Kit Price:
$2,499.00
BRUSHLESS 24V Sliding Gate Automation Motor 1000kg Capacity | with magnetic limit switch
The Roger Technology BH30/804 Brushless complete kit includes the roller sliding gate motor, control panel, and receiver.
The BH30/804 motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 1000Kg with built-in digital controller B70 series, magnetic limit switch.
Includes:
- BH30/804 Electromechanical Brushless Sliding Gate Motor
- Built-in B70 24v Digital Control Panel
- Plug-in H93/RX20/I Receiver
- Magnetic Limit Switch
See the full details below.
A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.
Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.
The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.
All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.
WHY BRUSHLESS...?
Digital, smart, powerful, elegant, robust and all-Italian.
A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.
Powerful Digital Brushless Motor
A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.
Digital & Vectorial Automation Controller
The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.
The Digital Silence Of The Motor
One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.
Motor For Super-Intensive Use
The brushless gate motor remains permanently cold even after many days of super-intensive use.
Speed, Acceleration & Deceleration With Extreme Elegance
The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.
Extremely Low Energy Consumption
A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.
Impact, Obstacle Detection & Reversal In Total Safety
Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.
Onboard Native Digital Encoder
The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.
No Problem In The Event Of Power Failure
With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.
Motor At Ambient Temperature
The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.
Simple Installation With A Single 3-Wire Cable
And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.
Advanced Precision Engineering To Obtain Optimal Motor Performance
We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
Standard power: | 3V DC |
Absorption: | 12mA |
Operating temperature: | -10+55 °C |
The number of channels: | 2 |
Codification: | Fix code |
Modulation: | AM/ASK |
Carried frequency: | 433.92MHz |
The number of combinations: | 65536 |
Radio for a copy: | Yes |
The maximum distance in the open field: | 150m |
Battery: | Mod "CR2032" 3V |
Maximum dimension product in mm (L x W x H): |
38 x 68 x 11 |
Product weight packed (Kg): | 0,03 |
Max gate weight: | 1000 kg |
Power line supply: | 230V AC - 50Hz |
Motor power supply: | 24V |
Power rating: | 200W |
Frequency of use: | Intensive use |
Thrust: | 50 - 1000N |
Operating temperature: | -20+55°C |
Protection level: | IP44 |
Reductor Type: | Irreversible |
Manoeuvre speed: | 12 m/min (0.20 m/s) |
Limit switch: | Mechanical |
Onboard control unit: | B70/1DC |
Encoder: | Digital native encoder + magnetic digital sensored, 4096 PPR |
Batteries recovery: | Optional 2 internal battery 12V 1,2AH - Optional 2 external battery 12V 4,5AH |
Type exit gear: | Z15/mod 4 |
Operating cycles per day (opening/closing - 24 hours no stop): | 1300 |
Maximum dimension product in mm (L x W x H): | 315 x 165,8 x 329 |
Product weight packed (Kg): | 12,3 |
Fixing plate with stay bolts and screws M30 series.
Kit magnetic limit switch for the control units H70/103AC, H70/104AC, B70/1DC, and B70/1DCHP.
Raised fixing plate for M30 series (+3 cm).
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)

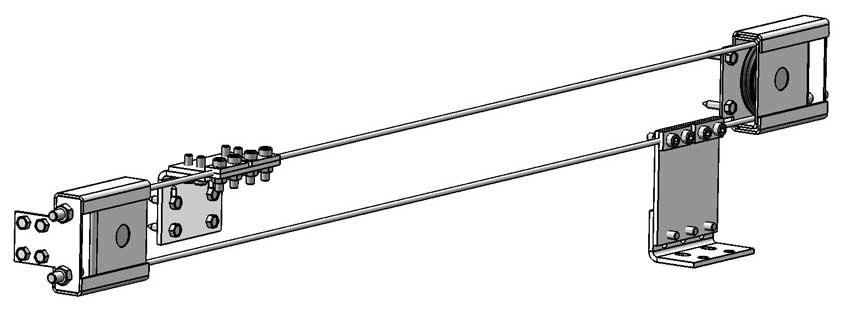

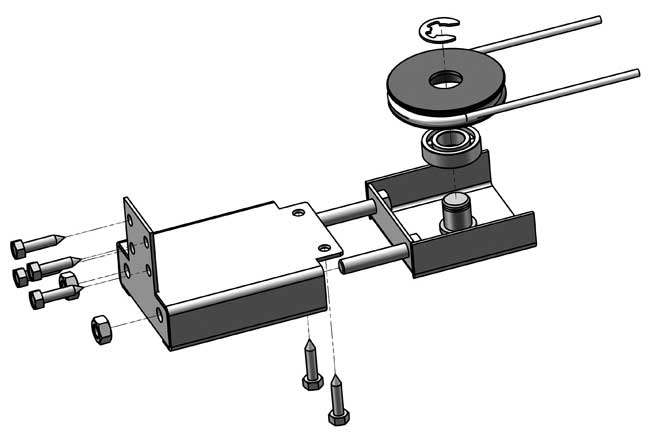

Consisting of Galvanized steel pulley carriers with sealed bearings this kit allows the final tensioning of the system to be performed from either (or both) ends of the gate rather than between the gates like conventional kits.

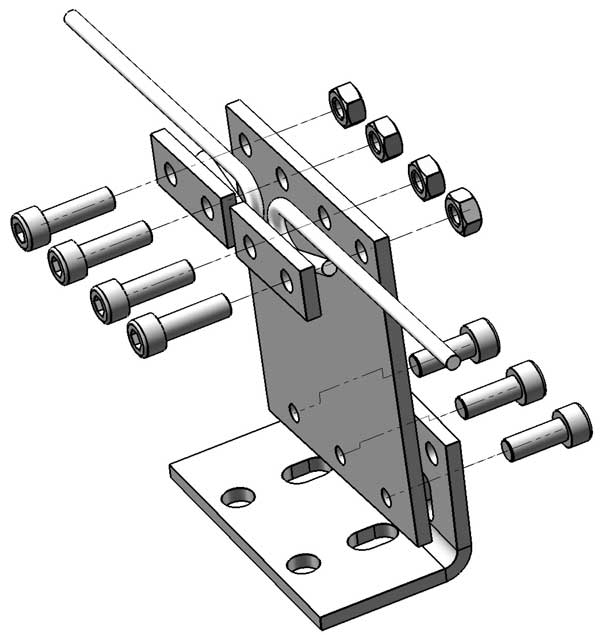

The Anchor bracket can be assembled in a raised setup (for bolt-on wheels) and a lowered setup (for recess mount wheels) to eliminate awkward and incorrect cable directions, this will improve the short term and long reliability of the cable and the system and help prevent cable fray.

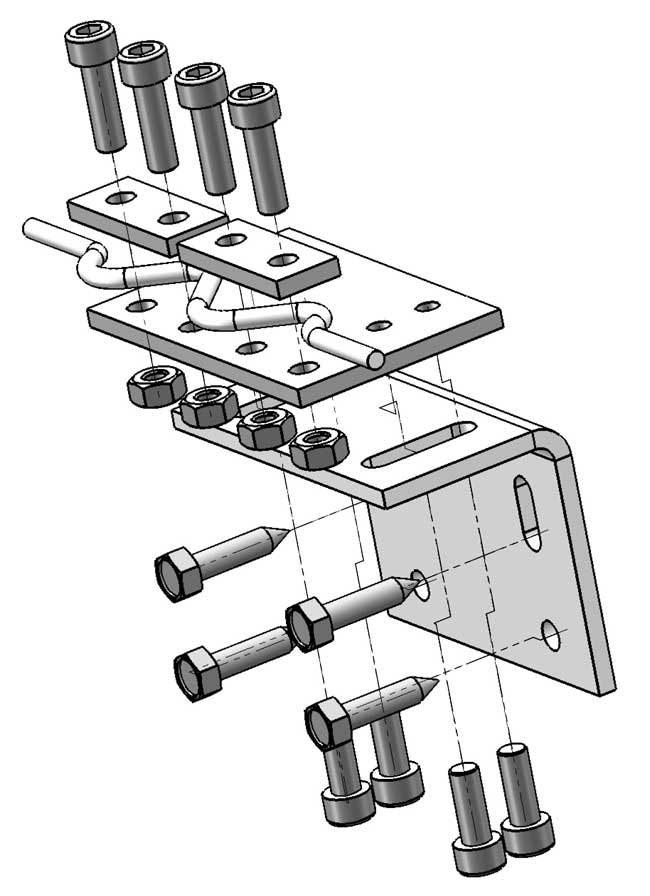

The Trailing bracket is adjustable in depth to cater for varying distances between the two installed gates and has elongated fixing holes to allow for fine adjustment during the installation process prior to final fixing.
A telescopic gate is a gate designed in two halves with a leading and a trailing gate. The leading gate will be the gate closest to the inside of the property whereas the trailing gate is the gate that is closest to the street.
Typically a sliding gate would require the width of the driveway + the tail of the gate (350mm) as the minimum clear area required however the telescopic gate system only requires half the driveway width + the tail of gate (350mm). This makes a telescopic gate superior in clearance space required and beneficial for townhouses, blocks of units and any other installation with limited space.
Using the information above if the driveway width is 4000mm then each gate would be manufactured to 2350mm thus making 2350mm the required clearance space. Ideally an additional 150mm would be ideal for a ground stop installation making the preferred clearance space 2500mmThe structure of the telescopic gate consists of two or more modular wings, and the way it works is similar to a telescope – when the wings are closed, they move one after the other. The telescopic gate, like the sliding gate, with the structure of the telescopic gates design slides on two rails side by side.
Traditional sliding gates need the same length of opening space, but telescopic gates allow twice the opening width into half the space. Example - If you had a four-metre opening but only two and a half metres of run-off area with a standard sliding gate, there is simply no way to install in this area. That can be triple or quatro telescopic structure design gates according to requirements.
