Product SKU: GFR45-P500

4.5m Gate Frame including Gate Hardware + Heavy Duty 500kg Sliding Gate Opener System, Gate and Gate Opener Combo

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • 4.5m Gate Frame including Gate Hardware  + Heavy Duty 500kg Sliding Gate Opener System

    YEAR END SALE

    TOP DEALS

4.5m Gate Frame including Gate Hardware + Heavy Duty 500kg Sliding Gate Opener System, Gate and Gate Opener Combo

Product SKU: GFR45-P500

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$1,999.00 $2,049.00 APC Automotion Plus Sale

  • Or in 4 payment of $499.75 with afterpay info
  • Robust 80x40 - 40x40 Cross Braced Steel, Satin Black Powdercoating

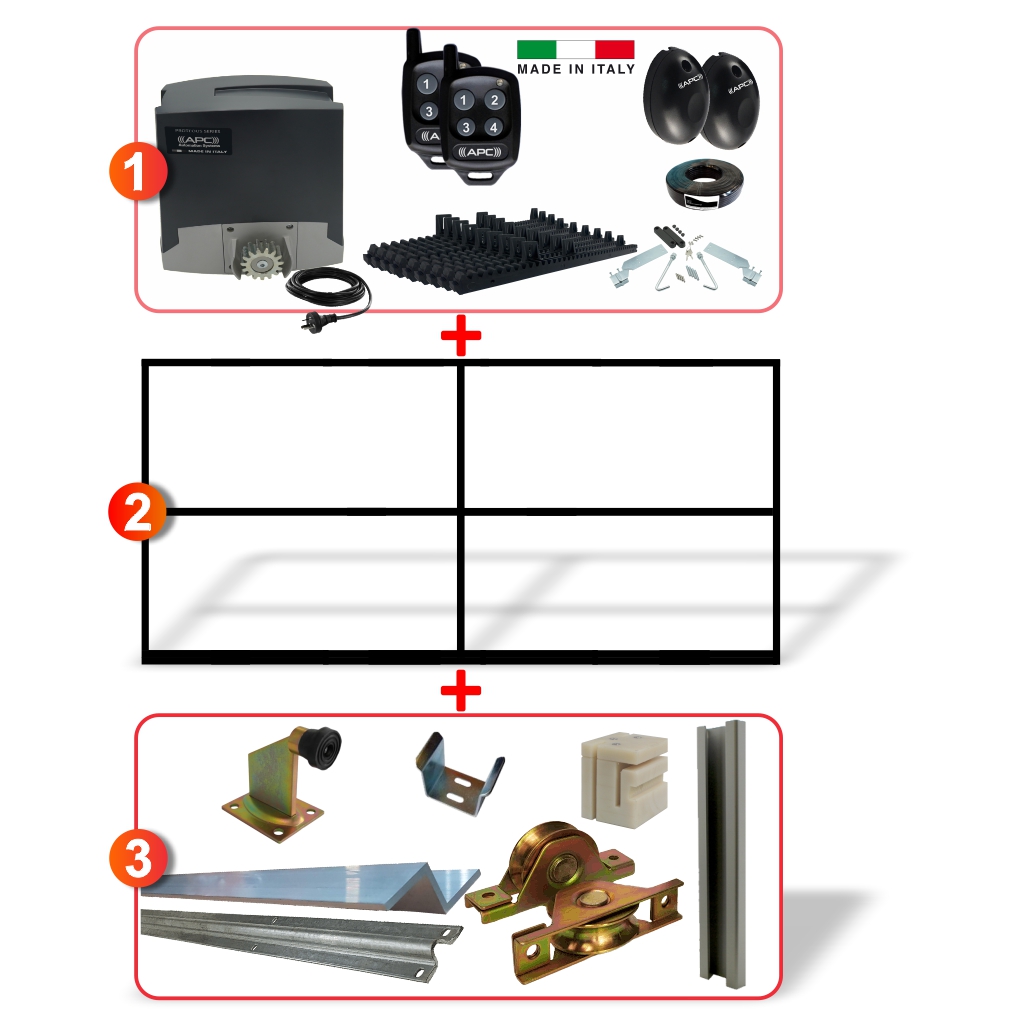

  • Kit Includes

    01 4.5m Gate Frame (1.5m Height) (QTY: 1)
    02 APC Proteous 500 Italian Made FEATURE RICH Sliding Gate Motor (QTY: 1)
    03 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer) (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 2)
    05 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    06 10m 4 Core Non Shielded Cable (QTY: 1)
    07 520mm Nylon Rack (QTY: 9)

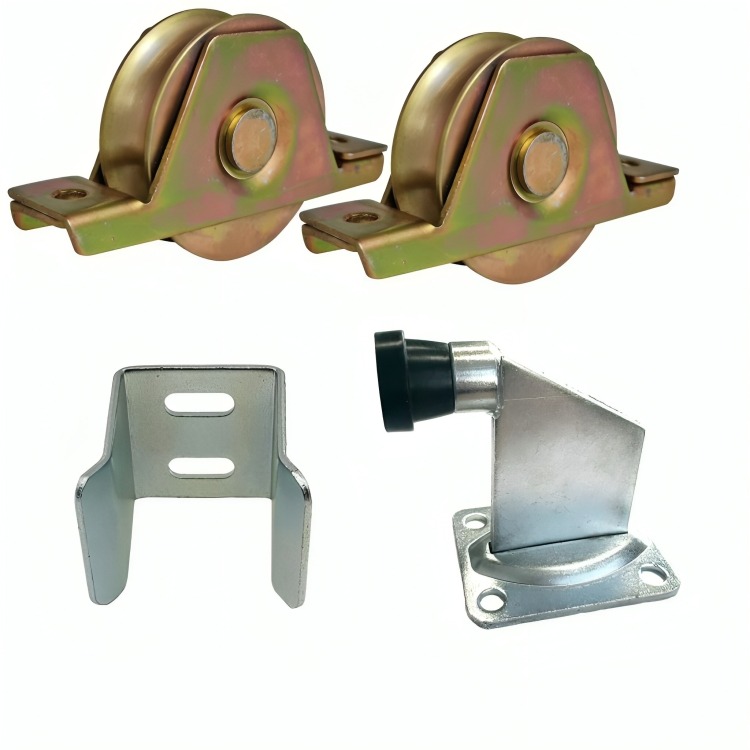

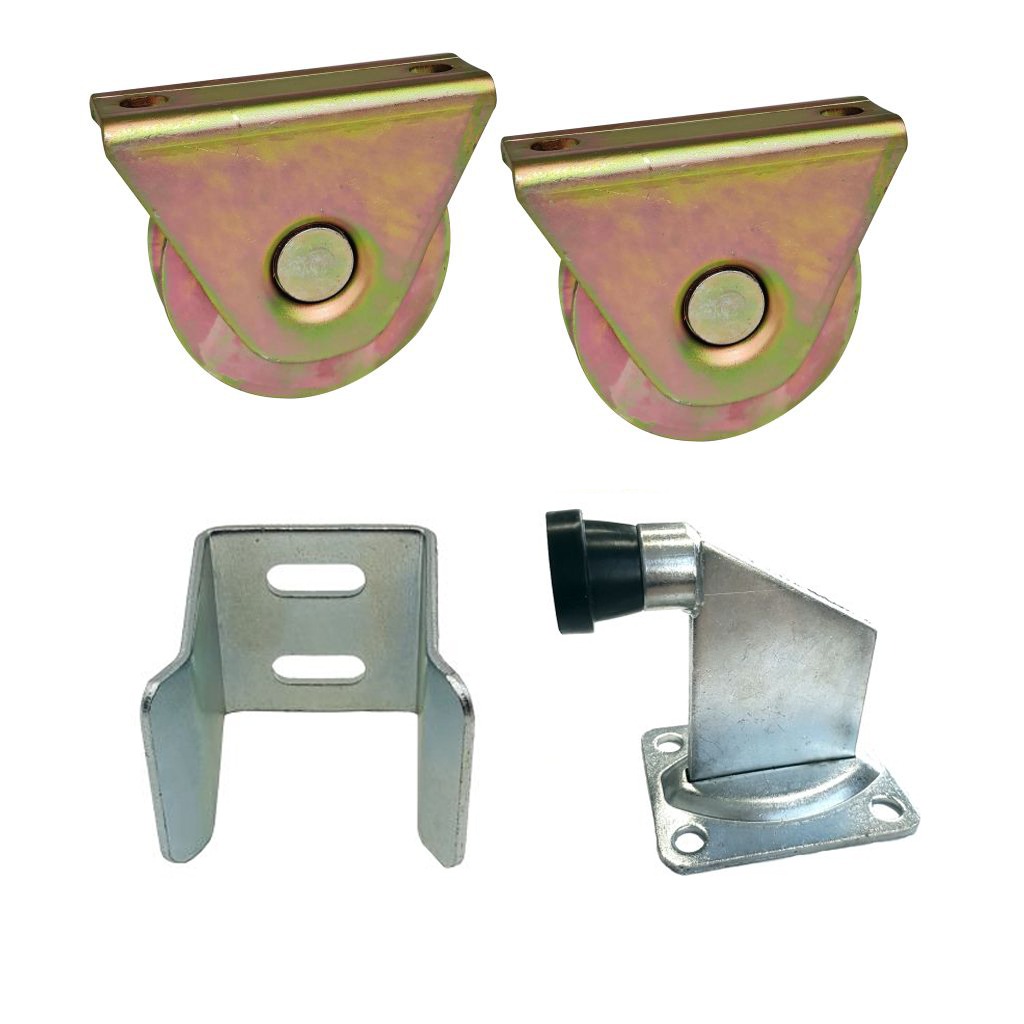

    08 Singular 78mm Recess Mount Wheels (QTY: 2)
    09 70mm Galvanized U Guide Gate Receiver Catcher (QTY: 1)
    10 115mm High Bolt Down Galvanized Gate Stop (QTY: 1)
    11 1m Galvanized Sliding Gate Track (Required Double the Width of Gate) (QTY: 9)
    12 Pack Of Hammer in Anchor Nails for Sliding Gate Track (QTY: 1)
    13 APC Superior White Nylon Guide Block, Two Piece Assembly For Sliding Gate With Angle or Z Profile (QTY: 1)
    14 Vertical Guide Channel for Nylon Block (QTY: 1)
    15 1m Length Z Channel Guide Angle (QTY: 5)
    16 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Gate Frame with Vertical and Horizontal Support Rails For Cladding

Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials




Key Features
  • 1500mm Height
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

Suitability
  • Sliding Gate Applications
  • Swing Gate Applications
  • Residential Use
  • Commercial Use

Sliding Gate Opener P500, Heavy Duty Feature Rich 24V Italian Sliding Gate Motor Overview

At a glance | The automatic sliding gate opener

The Sliding Gate Opener APC Proteous 500 boasts a cutting-edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high-duty cycle system. There is no function or feature that this system cannot perform. See the full details below.

Gate Automation System Features

Capacity

90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra-long 10-metre sliding gate capacity
Only 150mm Narrow Depth

Everything and more as standard. | The automatic sliding gate electric motor

Automatic learning of sliding gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount, which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable.
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic gate close feature
Underside cable entry with grommets
Simple to set up left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt levelling adjustment system (30mm in any or all directions)

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Sliding Gater Safety Features

Adjustable Over current adjustments
Built-in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for sliding gate opening and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface | Sliding gate motor control board

Control Board Overview



Accessories Compatibility and Controlling Options | Sliding Gate Automation

Constant DC Accessories Output
 Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (APP-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)



Remote Control Features

Dimensions | Italian Made Sliding Gate Electric Motor

Installation Options

Concrete in Base Plate

Surface Mounted Raised Base Plate (Optional Add On)

Four-point Tilt Leveling

Specifications

Transformer 24V AC
Rectification In Housing Rectifier
Motor Output Voltage 24v DC
Max Operating Power 300 Watts
Maximum Gate Length 10 Metres
Maximum Gate Weight 500 KG
Speed 28 cm/s
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Motor Duty Cycle 90%
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 34V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity



Optional Battery Back Up

An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the Proteous system.

Compartment with Battery Pack and Charger Installed



APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •
