Product SKU: GFR35-790-SMLA-807BK-291

3.5m Frame + Extra Heavy Duty Articulated System + Intercom

  • In Stock

  • fdFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
  • Price :

    $1,892.94

    Get More Info.. Get More Info..

    Product Information

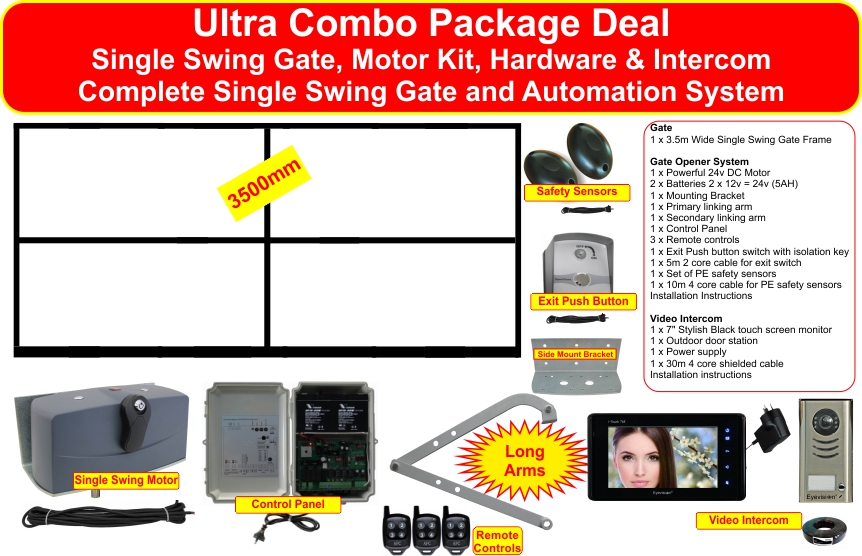

    Ultra Combo 38

    - 3.5m Wide Single Swing Gate Frame
    - Gate Automation System (APC-790 Extra Heavy Duty 24V DC Motor)
    - Color Video Intercom System (Eyevision® i-Touch 7'')




    Important Note:
    This advertised gate including the complete automation system and accessories
    are suitable for pickup and delivery due to the excessive freight cost.

    PICKUP: Bring your trailer or truck with you.
    DELIVERY: Please call us on (03) 9532-0804 for a shipping quote.
    Shipping Quote for Gate, Boom Gate and Gate Automation Systems

    This is a complete 3.5m Single Swing Gate, Automation & Color Video Intercom System Package allowing you to open the single swing gate via remote controls and the intercom system.





    3.5m Wide Single Swing Gate Frame
    Combo Package Contents

    Gate
    1 x 3.5m Wide Single Swing Gate Frame

    Gate Opener System
    1 x Powerful 24v DC Motor
    2 x Batteries 2 x 12v = 24v (5AH)
    1 x Mounting Bracket
    1 x Primary linking arm
    1 x Secondary linking arm
    1 x Control Panel
    3 x Remote controls
    1 x Exit Push button switch with isolation key
    1 x 5m 2 core cable for exit switch
    1 x Set of PE safety sensors
    1 x 10m 4 core cable for PE safety sensors
    Installation Instructions

    Video Intercom
    1 x 7" Stylish Black touch screen monitor
    1 x Outdoor door station
    1 x Power supply
    1 x 30m 4 core shielded cable
    Installation instructions


    Optional Upgrades - For Installations with no power at the gate:

    3.5m Wide Single Swing Gate Frame

    Motor Features: APC-790/890 Extra Heavy Duty 24V DC Motor


    Reliability & Durability
    The APC-790/890 Extra Heavy Duty 24V DC motor is a powerful unit built from reliable components with a thick and strong motor drive shaft unlike most competitors models. Designed in Australia, the gears are concealed to suit all weather conditions. This system is engineered to last a long life and carries a full 12 months Warranty.

    Manual Override
    Easy to use manual override with 2 keys supplied. Simply unlock with the key, turn the leaver and the gate will be free and can be opened manually in the case of an emergency or a power outage.

    24V DC Motor with All Metal Gears (No Nylon or Plastic)
    This Extra Heavy Duty 24V DC motor is constructed of all solid metal gears fitted with bronze bushes all housed in a weatherproof cast alloy housing making this system a durable and powerful folding arm motor.

    Universal Easy To Install Motor
    The APC-790/890 is a universal and easy-to-install motor which is fitted with a double sided manual override to allow for installation of the motor on either the right gate or the left gate. Further to this, the double sided clutch allows the user to fit the motor using a forward mount bracket or a side mount bracket. This increases flexibility and caters for a wide range of different installations. This package is supplied with a side mount bracket, for a forward mount bracket please refer to the forward mount ad or contact us on (03) 9532-0804 to specify when ordering.

    Gate Size
    This Tough and Robust system can handle a large single gate up to 4.5 metres in width - Please see more details on this further in the ad.

    Gate Weight
    Can handle a heavy gate up to a total of 300kg maximum - Please see more details on this further in the ad.

    Opening Angle
    Pulling to open (opening inwards) can be set to open the gate up to 120°.
    Pushing to open (opening outwards) can be set to open the gate up to 90°.

    Limit switches
    The motor is fitted with easy-to-adjust Limit Switches which guarantees that the gate will always stop in the same place.

    Please note: This gate motor can handle a single gate up to 4.5m in width but this width capacity is variable and based on the weight of the gate, the design (open frame, cladded, colour bond sheet) and the wind load. All of these factors which differ in every installation will determine the final capacity that this motor can handle for that particular installation.
    Please feel free to contact us on (03) 9532 0804 for further assistance if required.

    Durable & Weatherproof
    Completely weatherproof & concealed to suit all weather conditions.

    Limit Switches & Manual Override
    Built in double-sided manual override & limit switches.
    3.5m Wide Single Swing Gate Frame
    3.5m Wide Single Swing Gate Frame
    All Metal Gear Box (NO PLASTIC OR NYLON)
    Strong Metal Cut Gearing with a thick & strong 25mm Output Spline Shaft.
    24V Extra Heavy Duty DC Motor
    Strong DC motor with thick & strong 15mm Output Shaft.
    3.5m Wide Single Swing Gate Frame
    3.5m Wide Single Swing Gate Frame

    APC Smart Control Panel

    3.5m Wide Single Swing Gate Frame

    Low Consumption APC 24V Control Panel
    This smart control panel is easy to connect and easy to set up, the setup button allows the gates to run one complete cycle and automatically sets a slow down for opening and closing.

    Fully Weatherproof Control Box
    Deigned for all weather conditions, the control box is fully weatherproof with a seal. The swing hinged door on the control box allows for a compact and neat installation aswell as the option to secure the box with a padlock for added security. Multiple weatherproof cable glands for accessory and motor connection to the control box.

    Remote Controls
    The APC 4 button Remote Controls that are supplied can be used to operate different functions supported by the four channel control board.

    Button 1 is vacant in a single gate application, allowing this button to be used in conjunction with a receiver to operate another gate or garage door
    Button 2 is for opening and closing the single gate
    Button 3 is for the party mode (to cancel the auto close for a particular cycle)
    Button 4 is for operating a second lock (this can operate an extra lock fitted to a pedestrian gate)

    PE Safety Sensor Connection
    Energy star output, with zero consumption in standby to conserve power. PE Safety sensor connection is highly recommended.

    Adjustable Auto-Close Timer
    Adjustable Auto Close time up to 3 minutes. If automatic close is switched on, PE Safety Sensors are recommended as a safety precaution to stop the gate from closing if there is a car or object in the sensors view, these sensors can be found under the Sensors categeory on our website.

    Party Mode
    The automatic closing can be cancelled for a particular cycle using button 3 on any of the remote controls when expecting a visitor to arrive. For example, if expecting a visitor to arrive, number 3 can be pressed on the remote control whilst the gate is in the open position and the gate will remain open until the remote is pressed again.

    Electric Lock
    An Electric Lock (power on to unlock) can be installed on the gate.

    Overcurrent Adjustment
    Built in overcurrent adjustments allow for further adjustment to suit all gate sizes and weight.

    A Wide Range of Controlling Options (these optional items and accessories can be found on our website)
    Push Button Switches (wired or wireless)
    Long Range Remote Control
    Keypads (wired or wireless)
    Safety Sensors
    Intercom System
    Automatic Timer (external device)
    GSM Module (GSM telephone dialer)

    APC-RC4s Remote control

    3.5m Wide Single Swing Gate Frame

    Rolling code 433.92MHZ. The remotes supplied have 4 buttons, 1 and 2 can be used for the gates.
    Buttons 3 and 4 can be used for the party mode and second lock or alternatively they can be programmed to a compatible second gate opener or a garage door(s). A compatible 2 channel reciever is available to interface to any garage doors. Please see remotes and recievers in our store to find this add on reciever for the garage door.

    Low Voltage Single Push Button Switch with isolation key switch for operating automatic gates or garage opening systems. This switch can be wired to operate any device requiring momentary switching (switch is closed while pressed and open when not pressed).

    Exit Push Button Switch with lock

    3.5m Wide Single Swing Gate Frame

    Low Voltage Single Push Button Switch with isolation key switch for operating automatic gates or garage opening systems. This switch can be wired to operate any device requiring momentary switching (switch is closed while pressed and open when not pressed).

    APC-PE2000 Photo Electric Sensor

    3.5m Wide Single Swing Gate Frame

    Photo electric sensor function:
    If PE sensors are installed:
    - The gate will not close while the beam is obstructed.
    - The gate will stop and re-open if an object obstructs the beam.
    The sensors are wired back to the control panel using the supplied cables.
    Specifications:
    Detection technology: Infrared
    Range: 15m max.
    Frequency: 1.92Khz
    Power: 12-24V AC/DC
    Input: RX 15mA, TX 30mA
    Operating temperature: -20 to 70 degrees
    Relay output: 1Amp max 30V
    Dimension: 49.2 x 76 21mm

    Long Arms (Primary & Secondary Arms)
    Side Mount Bracket
    Motor Dimensions
    3.5m Wide Single Swing Gate Frame
    3.5m Wide Single Swing Gate Frame
    3.5m Wide Single Swing Gate Frame
    Strong & Thick, Powder Coated Customisable Primary & Secondary Arms.
    Powder Coated Side Mounting Bracket
    Motor Dimensions

    Fixing Example with Side Mounting APC-790/890 Motor with Long Arms Opening Inwards
    (Full size arm - not customised)

    Please note: The diagram below indicates distances and clearance room required when using the full size (un-customised) long arm that is supplied with this gate opening system.

    3.5m Wide Single Swing Gate Frame

    Fixing Example with Side Mounting APC-790/890 Motor with Long Arms Opening Outwards
    (Full size arm - not customised)

    Please note: The diagram below indicates distances and clearance room required when using the full size (un-customised) long arm that is supplied with this gate opening system.

    3.5m Wide Single Swing Gate Frame

    Intercom Features: EV-807TS-BK-291






    The Eyevision® i-Touch 7” Touch Screen video intercom system which is feature packed whilst extremely user friendly.
    This system is loved by all ages as it offers both an ultra modern touch screen for operation and a simple to use graphic user interface.
    The unlock feature on the monitor allows the user to unlock a gate or door that is connected to the system.
    This unlock feature can be expanded through the use of an RLC, creating a second unlock option accessable through all installed monitors.

    -True Colour 7" Digital TFT Screen
    -Night door bell volume setting to normal, low or mute (adjustable time)
    -Intercom calling between installed monitors with a setup choice of all monitors calling OR a specific room
    -12 Door Bell Melodies to choose from
    Specifications
    Power Supply 16-24V DC
    Power Consumption Standby: 1,2W, Working: 8W
    Screen 7" Digital TFT Monitor
    Display Resolution: 800*3(RGB)*480 Pixels
    Wiring 4 Wires, polarity
    Dimensions 125 (H) x 225 (W) x 23 (D) mm

    Door Station

    3.5m Wide Single Swing Gate Frame

    - Surface mount: fits on walls, brick piers and most metal posts
    - Compatible with all 4 wire eyevision® video intercom systems
    - Sony high performance CCD Camera
    - Adjustable camera angle
    - Adjustable microphone volume
    - Adjustable speaker volume
    - Infared for night viewing
    - Name plate with back light
    Specifications
    Power Supply 12V DC (Supplied by indoor monitor)
    Power Consumption Standby: 50mA, Working: 200mA
    Wiring 4 Wire connection to indoor monitor
    2 Wire connection to automatic gate or 12V electric striker
    Dimensions 176 (H) x 90 (W) x 23 (D) mm

    Gate Frame


    Construction: Black powder coated metal gate frame featuring a strong 40mm x 40mm x 1.5mm steel frame with an 80mm strong bottom channel and additional support rail in the middle of the gate. This gate frame is designed for cladding with timber pickets, colour bond sheet, mesh and any other materials used for gate cladding. If you are after a ready made decorative type of gate which does not require cladding please see our other sliding gate packages which comprise of decorative gates with steel pickets.


    3.5m Wide Single Swing Gate Frame
    Gate Specifications:

    - Heavy Duty Gate with Black Powder Coating
    - Height: 1600mm
    - Bottom Base Channel: 80mm x 40mm x 1.5mm steel
    - Main Frame: 40mm x 40mm x 1.5mm steel

    Please note:
    This and all other advertised gates are suitable for pickup from our warehouse in Moorabbin.
    Bring your trailer or truck with you, this limited stock will not last.
    For quotes on courier delivery please call us on (03) 9532 0804.
