Product SKU: AY250-HS-LV-BK

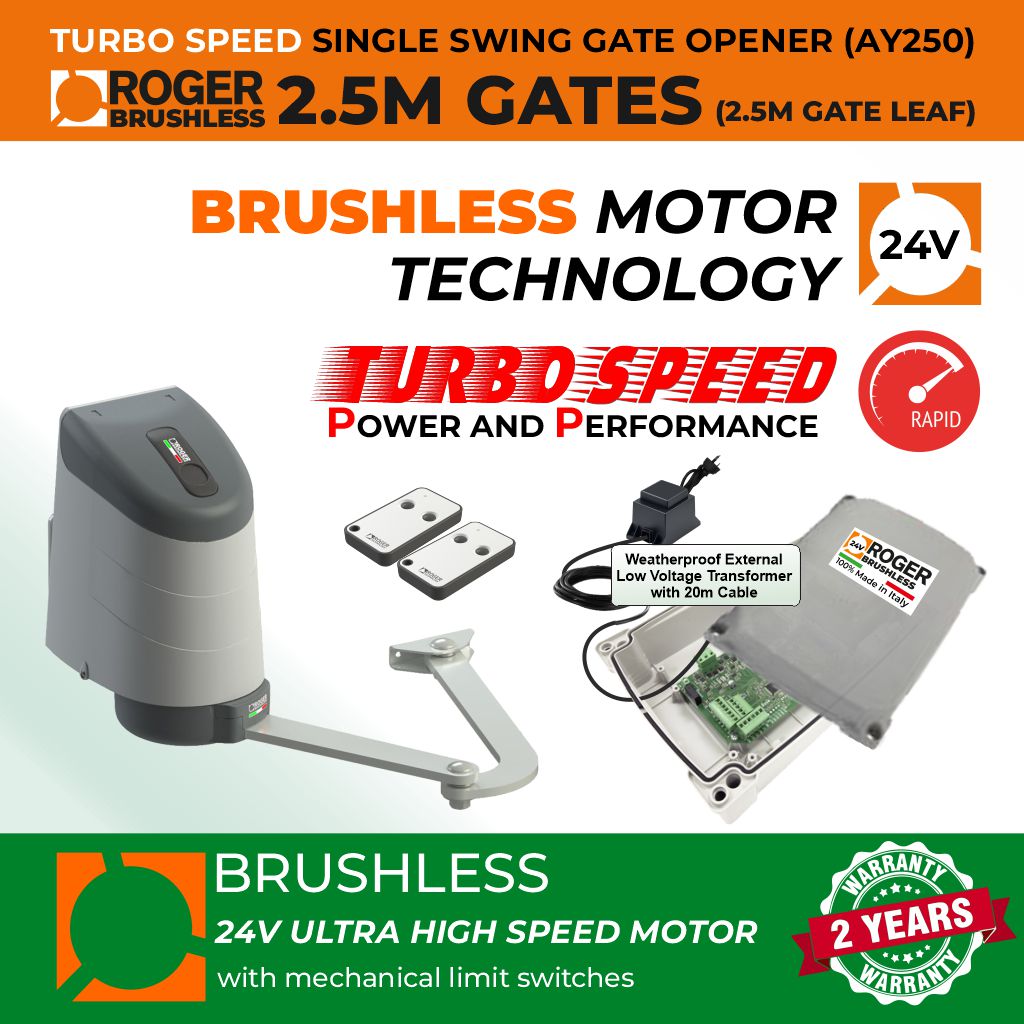

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 2.5M or 260KG Each Leaf | Super Intensive Use |
100% Duty Cycle Brushless Engine With Articulated Arm
Electromechanical articulated motor HIGH SPEED BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 2.5 meters of length, with mechanical stopper in opening and closing.
All measurements are expressed in mm.
All measurements are expressed in mm.
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 24V |
| Power rating: | 150W |
| Frequency of use: | Intensive use |
| Torque: | 50 - 200 N m |
| Operating temperature: | -20+55° C |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 4 - 1,5 Rpm |
| Opening time: | 10-18 s |
| Limit switch: | Mechanical stopper in opening and closing |
| Encoder: | Digital native encoder SENSORLESS 48 PPR |
| Release system: | Internal lever |
| Batteries recovery: | 2 internal batteries 12V DC 1.2 Amp/h (inside AY/250/S) |
| Operating cycles per day (opening/closing - 24 hours, no stop): | 800 |
The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |
The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
| Power line supply: | 230V AC - 50 Hz |
| Operating temperature: | -10+55 C° |
| Protection level: | IP54 |
| N. motors activated: | 2 Brushless motor |
| Max power per motor: | 110W |
| Max courtesy light charge: | 100W 230V AC - 40W 24V AC/DC |
| Max power gate open light: | 3W (24V DC) |
| Max voltage accessories output: | 10W (24V DC) |
| Electrical-Lock max power: | 15W (12V DC) |
| Flashlight voltage: | 24V DC |
| Max flashing light charge: | 25W |
| Battery: | Optional |
| Maximum dimension product in mm (L x W x H): | 330 x 230 x 115 |
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
| Standard power: | 3V DC |
| Absorption: | 12mA |
| Operating temperature: | -10+55 °C |
| The number of channels: | 2 |
| Codification: | Fix code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92MHz |
| The number of combinations: | 65536 |
| Radio for a copy: | Yes |
| The maximum distance in the open field: | 150m |
| Battery: | Mod "CR2032" 3V |
| Maximum dimension product in mm (L x W x H): |
38 x 68 x 11 |
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
Mains power supply: 230 Vac +/- 10%, 50-60 Hz
Motor power supply: 24 V DC 280 W and 10 A peak motor
Warning light power supply: 24V max 15W
Gate pilot lamp power supply: 24 Vdc max 10 W
Accessories power supply (photocells &): 24 Vdc max 10 W
Radio receiver frequency: 433.920 MHz
Storable remote controls: 170
Radio antenna input: Rg58
Operating temperature: -20°C / +50°C
