Product SKU: A-BusV10R-BK-298FKP-FE

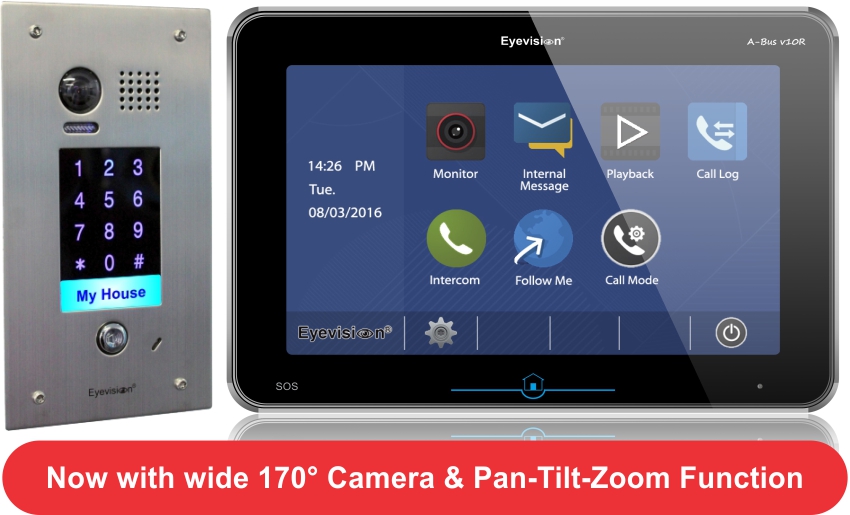

10 Inch Gloss Black Monitor with 170 Degree Flush Mount Stainless Steel Keypad Outdoor Station

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$567.00 $810.00

  • Sleek GUI, Video Recording, Easy Installation 2 Wire System, Non Polarity System

  • Kit Includes

    01 10 Inch R Series Add On Monitor(QTY: 1)
    02 Stainless Steel 170 Degree Flush Mount Keypad Outdoor Station(QTY: 1)
    03 Combo Power Supply and Seperator for Eyevision 2 Wire Intercoms(QTY: 1)
    04 20m Cable, Twisted pair 1mm thick for use with the Eyevision 2 wire systems(QTY: 1)
  • Add-On Items
  • Product Information

Add-On Items (Discounted when purchased along with this Kit)

Product Information



A-Bus Eyevision® 2 Wire Digital Video Intercom System Highly expandable system supporting up to four door stations, four monitors and up to four CCTV cameras with photo video recording & voicemail function for incoming calls

This Eyevision® 2 wire 10" touch screen true colour digital video intercom system is feature packed and extremely user friendly. This easy to use intercom system comprises of the most advanced features that can be found in an intercom system whilst simultaneously allowing the user to perform all the basic actions required. The systems features include video & picture recording, different call modes which in turn allow for voicemail messages to be recorded on the system, a divert function allowing up to 3 programmed mobile or landline numbers to ring when the doorbell rings or when the user is not home, internal intercom function between installed monitors and handsets, internal messaging, door release opereation, SOS function and a wide range of setting adjustements including night ring volume and a choice of colours for the illuminated LED below the screen. This digital system is also very highly expandable allowing up to four monitors, four door stations and four CCTV cameras to be connected to the system. Please see further in the ad for more details on all the functions.

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Touch Screen
Highly responsive 10" Colour TFT LCD touch screen operation with an easy to use interface. Modern & Sleek Design allowing the user to access all features with a simple touch.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Video Picture Recording
When the doorbell rings the system will automatically record a picture/video (depending on whether an SD Card is installed). The user can also take a photo/video on demand incase a security threat is detected.

- Without an SD Card: The system will take pictures automatically and manually as stated above but cannot record videos without an SD card. Without an SD the system will support the storage of up to 118 photos.
- With an SD Card (not supplied): The system will support video recording and the storage memory will be higher when an SD card is used.
Please note: The system supports Micro SD cards up to 32GB with a writing speed no less than 4MB/S. This SD card is not supplied with this package.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Call Modes
1. Normal: This mode allows the system to function in its normal state.
2. Do not disturb: In this mode the outdoor station and other monitors cannot call the monitor that has chosen the do not disturb mode.
3. Leave a message immediately: If this mode is selected visitors will be prompted to leave a message immediately when they press the doorbell (Please see voicemail feature for further information).
4. Leave a message if no answer: If this mode is selected when the doorbell is pressed the indoor monitor(s) will ring first, if there is no answer within 30 seconds the system will prompt the visitor to leave a message (Please see voicemail feature for further information).
5. Divert Simultaneously: If this mode is selected, calls from the outdoor station will be diverted to the users telephone immediately (please see follow me feature for further information - please note the diverter is not included in this package)
6. Divert if no answer: If this mode is selected, calls from the outdoor station without a response within 30 seconds will be diverted. The monitor will return to standby when the divert is active (please see follow me feature for further information - please note the diverter is not included in this package)

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Voicemail Feature
This highly expandable system allows guests to leave a voiemail message when they press the doorbell. An SD card must be installed in the system to allow the voicemail feature to be used. As stated in the "call modes" section, there is two settings to choose from in the voicemail feature. The first setting "Leave a message immediately" will prompt the guest to leave a message immediately when they press the doorbell. The second setting "Leave a message if no answer" will call the indoor monitor(s) first and if there is no answer within 30 seconds, the guest will be prompted to leave a message.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Follow Me Function (A GSM or TPS is needed to operate the follow me function - these components can be found on our website under 2 wire system accesories)
The follow me function allows the user to receive phone calls on their mobile or landline when the guest rings the doorbell. This follow me function mode has three options for diversion:
1 - Do not Divert.
2 - Divert Simultaneously - All monitors aswell as the programmed phone will ring when the doorbell is pressed.
3 - Divert if no answer - All monitors installed will ring first and if there is no answer, the programmed phone will then ring.
Please note: Up to 3 numbers can be programmed, number 1 will ring first, if not answered, number 2 will ring, if not answered number 3 will ring.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Intercom Between Monitors - Two Set-Up Methods
Name List Method: The name list method allows for individual intercom communcation between any two monitors that are installed. The user can program each room as they wish through the easy to use menu, for example, kitchen, master bedroom, entertainment room. The user can select which room they would like to call from the list. If the intercom function is set to this name list method, the below functions of inner call and inner broadcast will not be available for use.

Inner Call & Broadcast Method: An inner call can be initiated to ring ALL monitors installed or an announcement can be broadcasted to all monitors from the initiating monitor. When one of the monitors answers the inner call this monitor will have two way communication with the initiating monitor and all other monitors will stop ringing. When a broadcast is made, it will be heard at all the installed monitors but there is no two way communication unless using the inner call.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Internal Message Function
The internal message feature allows internal messaging between all installed monitors in the home when set by name list (please see above for information). Each installed monitor has an inbox and outbox folder aswell as the ability to send a message.
When the name list method is set (please see above), then the user can specificy which monitor the mesage is being sent to. When inner call is set, all internal messages will be sent to all the monitors.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Door Release Operation for Door Strikers & Gate Automation
When the outdoor staton is pressed all installed monitors will ring allowing for handsfree communication and unlocking of a connected gate or door. Every connected door station has the ability to unlock a connected gate or door.

Second Release: The use of an RLC second lock release module (found under 2 wire system accessories) will enable two unlock releases from one connected door station allowing the user to unlock two doors or gates or one of each all from the one monitor. Each gate or door connected through the use of an RLC will have its own unlock function on the monitor so that each lock can be released individually. Multiple door stations can also be connected to the system with the use of a distributor, please see "additional door station connection" below. Please note: The second lock release module is only required when using the 298KP-FE/298FKP-FE/298F door stations. When using the 291/299/297 door stations this module is not required as they have two lock releases built in.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Adjustable Night Ring Volume
The night ring volume feature allows the user to adjust the volume for different times of the day to suit their requirements. This function works by enabling the user to set a time frame for "day time" for example: day time can be set between 7am and 8pm (this is adjustable up or down by the hour as per the users needs). There is then an option to select the volume for day time and the volume for night time. For the above example, night ring volume would become enabled after 8pm and would stop at 7am. It can be set for a lower volume or to mute.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

SOS Function
When a GSM is connected to the system, the SOS button function will send a "HELP" message to the programmed divert number when this button is pressed.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Call Log Function
All the incoming calls of each specific door station will be recorded under the call log record and can be viewed at any time. Monitor to monitor calls are logged when using the name list set-up method.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Addtional Monitors & Audio Handsets
Additional Monitors & Audio handsets can also be connected to the system allowing video & audio communication and unlocking from desired locations around the home. In order to connect further monitors/handsets to this system, a monitor distributor is highly recommended. This component can be found under 2 wire system accessories. A maximum of four indoor units can be connected to the system, this can be a mixture of both monitors and audio handsets.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Additional Door Station Connection
Up to 4 door stations can be connected to the system for multiple entry points. Individual ringtones can be set for each different door station. In order to connect further door stations to this system, a door station distributor is a MUST. This component can be found under 2 wire system accessories. A maximum of four door stations can be connected to the system.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

CCTV Connection using Quad Splitter
With the use of a quad splitter, the user can view four CCTV cameras on the screen at the same time (please see graphic interface examples below). The quad splitter can be found under 2 wire system accessories. A total of 4 CCTV cameras can be connected to the system.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Rename Door Stations, Monitors & CCTV
Door Stations, Monitors & CCTV Cameras can be re-named by the user allowing for a clear and easy to use set-up.

A-Bus Eyevision® 2 Wire Digital Video Intercom System



A-Bus Eyevision® 2 Wire Digital Video Intercom System

LED Colours for Standby, Calling & SOS
There is an LED light visible on the monitor at all times when the system is in standby aswell as when the system is in the intercom calling state. There are five colours to choose from which are programmable through the settings (please see colours directly below). The SOS function (outlined above) has an LED light which is programmable to be switched ON/OFF through the settings. The LED light for the SOS function is a fixed colour.

A-Bus Eyevision® 2 Wire Digital Video Intercom SystemA-Bus Eyevision® 2 Wire Digital Video Intercom SystemA-Bus Eyevision® 2 Wire Digital Video Intercom SystemA-Bus Eyevision® 2 Wire Digital Video Intercom SystemA-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Pan-Tilt-Zoom Function
The door station supplied in this package (EV-D298FKP-FE) is a 170° wide angle fish eye door station. When this door station is coupled with this A-BusV10R monitor the user is able to use the Pan-Tilt-Zoom Function to maximise the viewing angle and functionality of this door station. By connecting this fish eye door station to this A-BusV10R monitor it allows the user to navigate up, down, left or right aswell as zoom in, in order to move to the desired position on the monitor. When coupled with any of the other 2 wire monitors, this wide angled fish eye door station will display the full 170° view only and cannot pan-tilt-zoom. Please see example below of the pan-tilt-zoom function.

Pan-Tilt-Zoom Function Example

The first illustration below is the full 170° camera view which will appear on the screen either when in monitoring mode or when the doorbell is pressed by a visitor. The second illustration below illustrates when using the P-T-Z function the user can move left, right, up or down aswell as zoom in.

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Easy to use Graphic User Interface

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Main Menu

Intercom Menu - Broadcast, Inner Call & Name List

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Internal Message Menu

Playback Menu - Photos, Video & Voicemail

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Follow me Divert Menu

Door Station & Camera Re-name Menu

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Sound Settings Menu

Example of Quad Split Function - showing 4 CCTV's

Monitor Specifications:

Power Consumption

Standby 20.9mA, Working 350mA

Screen size

10" Colour TFT LCD

SD Card

Micro SD Card up to 32GB, writing speed no less than 4MB/S (not supplied)

Resolution

800*3(RGB)*480 pixels

Monitor Dimension

178(H) x 268(W) x 24(Thick)

Keypad Door Station

Touch sensitive digital keypad door station with built-in 170 ° camera, stunning modern appearance, recess mount, slim design, weatherproof, stainless steel face plate and 2 channel operation (second lock via add on relay EV-RLC-S).
Please note, the add on relay component required to operate the second lock output can be found in the 2 wire systems accessories.

This EV-D298FKP-FE has a very wide 170° camera angle aswell as a Pan-tilt-zoom function which can be utilised when this door station is coupled with the A-busV10R monitor. This function allows the user to navigate up, down, left or right aswell as zoom in, in order to move to the desired position on the monitor. When coupled with any of the other 2 wire monitors, this wide camera angle door station will display the full 170° view and will automatically zoom in and out but cannot utilise the full pan-tilt-zoom function.

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Features:

* Camera: CMOS 2.0 Mega Pixel
* Camera view: 170º Fish Eye Wide Angle
* Touch sensitive digital touch keypad
* Easy to see and use big numbers
* Multi user (up to 40 codes)
* 2 Channels output (second lock via add on component EV-RLC-S which can be found under 2 wire accessories)
* Supports an exit button connection or RF receiver/transmitter
* Supports up to 4 door stations connection
* Operation acknowledgment Red & Blue LED indicator & buzzer
* Weatherproof IP55
* Blue back light for keypad
* Recess mount, supplied with a recess box
* Stainless steel face plate
* Name plate display with back light

Specifications:
Electric striker power output: 300mA from the door station
Number of relays: 2 (second using an add on RLC)
Number of channels: 2
Number of users: 40
Working temperature: -10ºC ~ 45ºC
Power·Consumption: 2 W in standby, 8 W in working

Door station size:
220mm Long
120mm Wide

Recess box:
200mm Long
96mm Wide
50mm Deep

Wiring Examples

Wiring example 1: The first lock output is connected to a striker and for the second lock output the RLC is connected to an automatic gate opener.

Wiring example 2: The first lock output is connected to a striker and for the second lock output the RLC is connected to another striker.

A-Bus Eyevision® 2 Wire Digital Video Intercom System

A-Bus Eyevision® 2 Wire Digital Video Intercom System



Wiring Example of Multiple Monitors, Door Stations & CCTV Cameras

A-Bus Eyevision® 2 Wire Digital Video Intercom System

Wiring Example of Two Monitors & Two Door Stations



A-Bus Eyevision® 2 Wire Digital Video Intercom System

Cable Requirements

A-Bus Eyevision® 2 Wire Digital Video Intercom System

CAT5 up to 80m between the door station and each apartment.
Straight Pair 1mm2 up to 50m between the door station and each apartment.
Twisted Pair 1mm2 up to 120m between the door station and each apartment.
Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.

Recommendation: The Eyevision® 2 wire monitors are very powerful and will deliver high quality video and audio, it is recommended to use the best quality cables that will suit your installation, use cables with very good quality copper conductor in order to maximize the clarity of the system.
This is why we provide a free high quality 20m twisted pair with every monitor, using this cable will guarantee the best optimized results in video and audio transmission for up to 200m.
Larger sizes of this twisted pair cables manufactured for this system are available at very competitive prices, please click here
Note: Due to different qualities of cables the above non-eyevision cable distances are an average guidline only.

Package Contents

- 1 x Black 10" Digital Monitor
- 1 x Fish Eye 170° Wide Angled Weatherproof keypad door station with touch sensitive buttons
- 1 x Recess Mounting Box for Door Station
- 1 x Combo Power Supply
- 1 x 20m twisted pair eyevision® cable
- 1 x User Manual



Your Customised Kit Includes:

No Changes.
